planetary gear fidget thing with three-teeth-planets — modelo 3D

planetary gear fidget thing with three-teeth-planets

por DrJones en Printables

Nothing really new, but this is my take on these...

Descargar gratis Ver en Printables

Todos los archivos (3) en un ZIP

Licencia

Uso comercial permitido

CC BY 4.0 — Atribución

Puedes imprimirlo, modificarlo y venderlo dando crédito al autor.

Al descargar aceptas respetar la licencia y dar crédito a DrJones.

Archivos (3)
Categoría
Tecnología
Formatos
STL, 3MF
Descargas
3,987
Publicado

Sobre este modelo

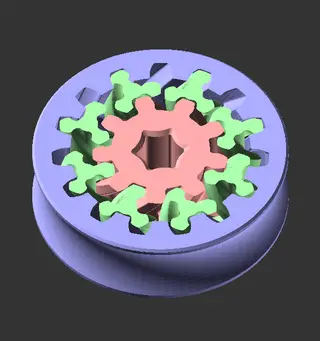

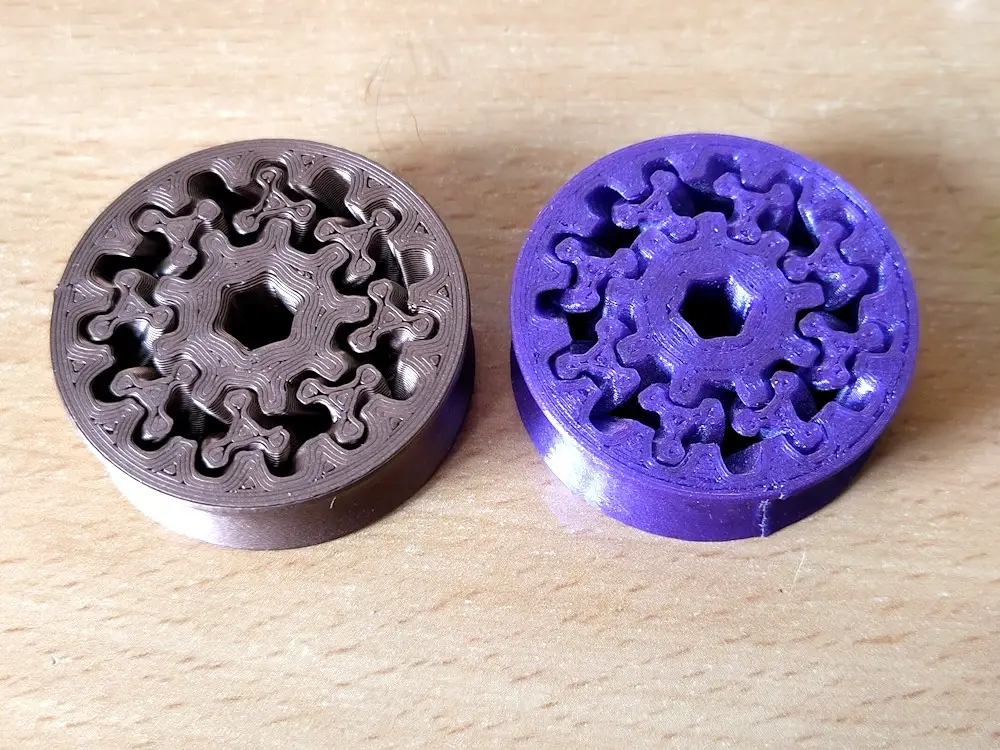

Who hasn't seen a print-in-place herringbone planetary gear… probably a version from Emmett. However I recently developed a different method for those gears which allows planet gears with only 3 teeth (actually also with 2 teeth, but they don't turn that smoothly), which I found quite nice, and so I thought I'd share it. The hole in the center should fit a typical screw driver bit, which can, in combination with a power drill, help breaking in the gear to run more smoothly, especially if it's quite tight in the beginning. I uploaded 3 versions with slightly different tolerances/clearance. I suggest trying tol20 first; if you find it to loose or wobbly, try the smaller one. If you can't break the gears loose, even individually with a bit of force, try a bigger one. Also try the little hand crank (or two) for a bit more fun → Printing: A well tuned printer (regarding tolerances) helps. Otherwise nothing special (0.4mm nozzle, 0.2mm layer height).

Descripción original del autor, publicada en Printables.
