Pipe Fittings Collection 2

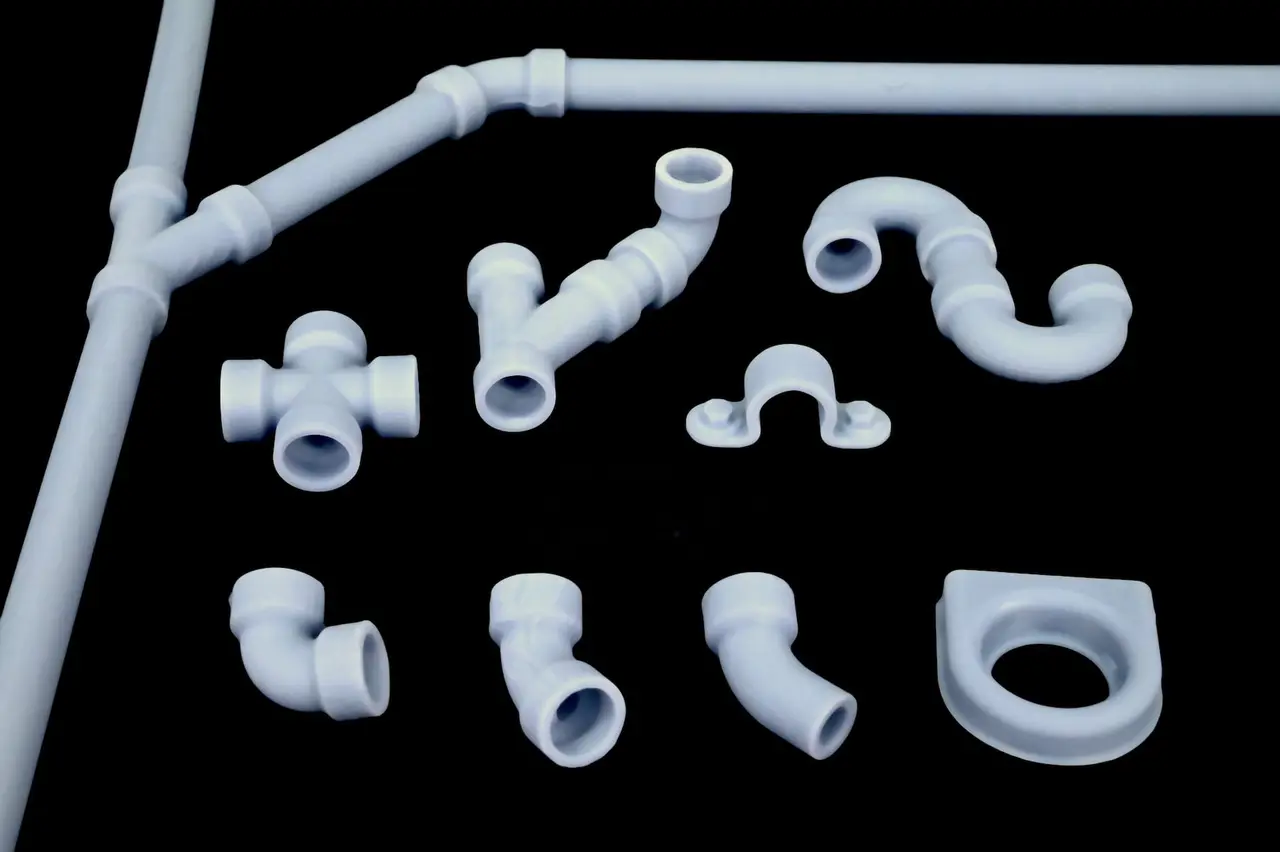

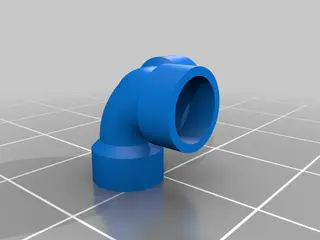

This is a collection of pipe fittings that may be used to create realistic pipework. The fittings have a 5mm outside diameter and may be scaled to suit your requirements. If required, you may mirror the Sewer Elbow and Sewer Tee (all other models are symmetrical). For my 1-in-20 models, I printed these at 200% scale. See also my Pipe Fittings Collection 1: https://www.thingiverse.com/thing:5356308 Design Parameters: - Pipe OD = 5.0mm - Pipe ID = 3.4mm - Wall thickness = 0.8mm

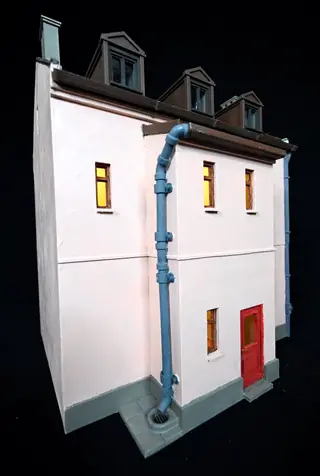

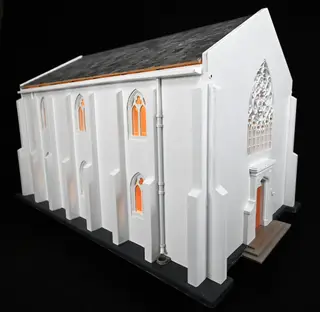

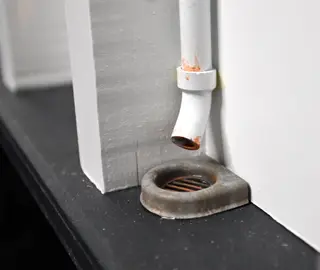

You could use them as downpipes, drains and sewer pipes. You may use the pipes to hide low voltage wiring in your diorama or tabletop game. At a larger scale you could use these for character access passages. Suggested paint finishes are: terracotta colour for clay pipes, concrete colour for drains, wall colour for downpipes. Print using either a filament or resin printer (preferred). When generating supports in your slicer, raise the items a few millimetres above the print surface. Use a function similar to “Touch Platform Only” or “Platform” to avoid generating supports inside the fittings. If using a resin printer, print pipes so that they are vertical. You should be able to fit a few on the build platform. This should also give better print quality. 2024-01-10 - Add: Corner Connector 2025-09-14 - Add: Cross 5 , Cross 6, End Cap
