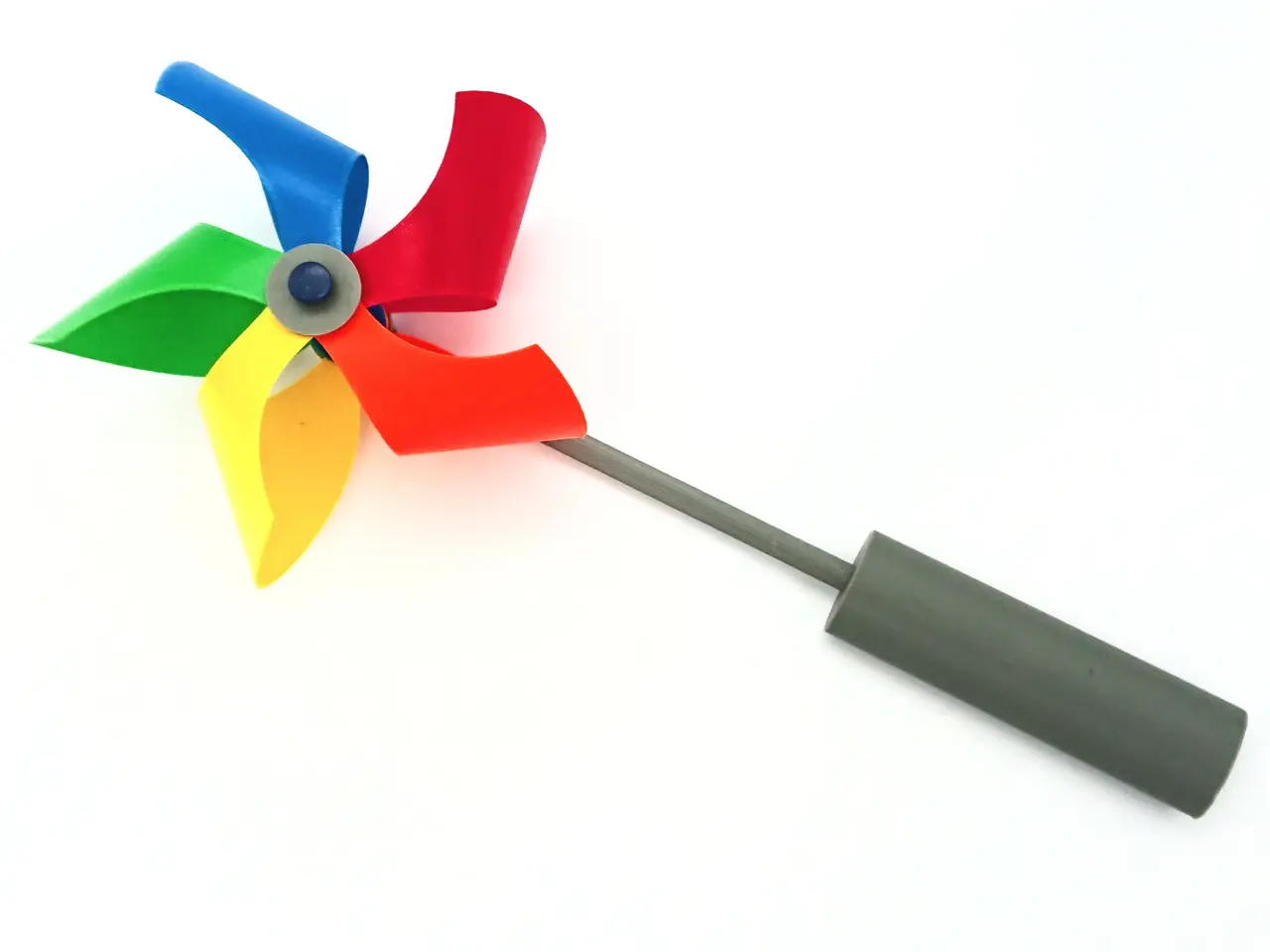

Pinwheel Rainbow Star #Tinkerfun

This is a fully printable pinwheel I designed in tinkercad for the #Tinkerfun challenge "The Great Outdoors".

Instructions:

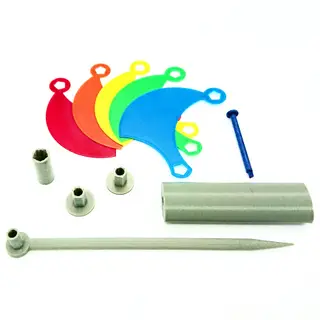

1. Print the "pinwheel-blade" 5x, each in a different color:

red, orange, yellow, green and blue.

It is designed to be printed with 0.1 resolution to make it sturdy and flexible at the same time.

2. Print the "pinwheel-pentagon-eyelet" 2x

0.1 resolution recommendet.

3. Print the "pinwheel-spacer" 1x

0.1 resolution recommendet.

4. Print the "pinwheel-pin" 1x

Print it exactly the way it is orientated on the buildplate (sideways) with supports and a brim to make it sturdy.

0.1 resolution recommendet.

5. Print the "pinwheel-gardenstick" 1x

0.2 resolution is perfectly fine, supports touching buildplate necessary for the pointy tip.

6. (optional) Print the "pinwheel-handle" 1x

0.2 resolution is perfectly fine

Now it's time to assemble it!

Here you can see, how it is done:

I hope you like this creation and have fun with it!

If you like to see, how I designed it, watch this video:

This object was made in Tinkercad. https://www.tinkercad.com/things/6Xy4RkxyktY
