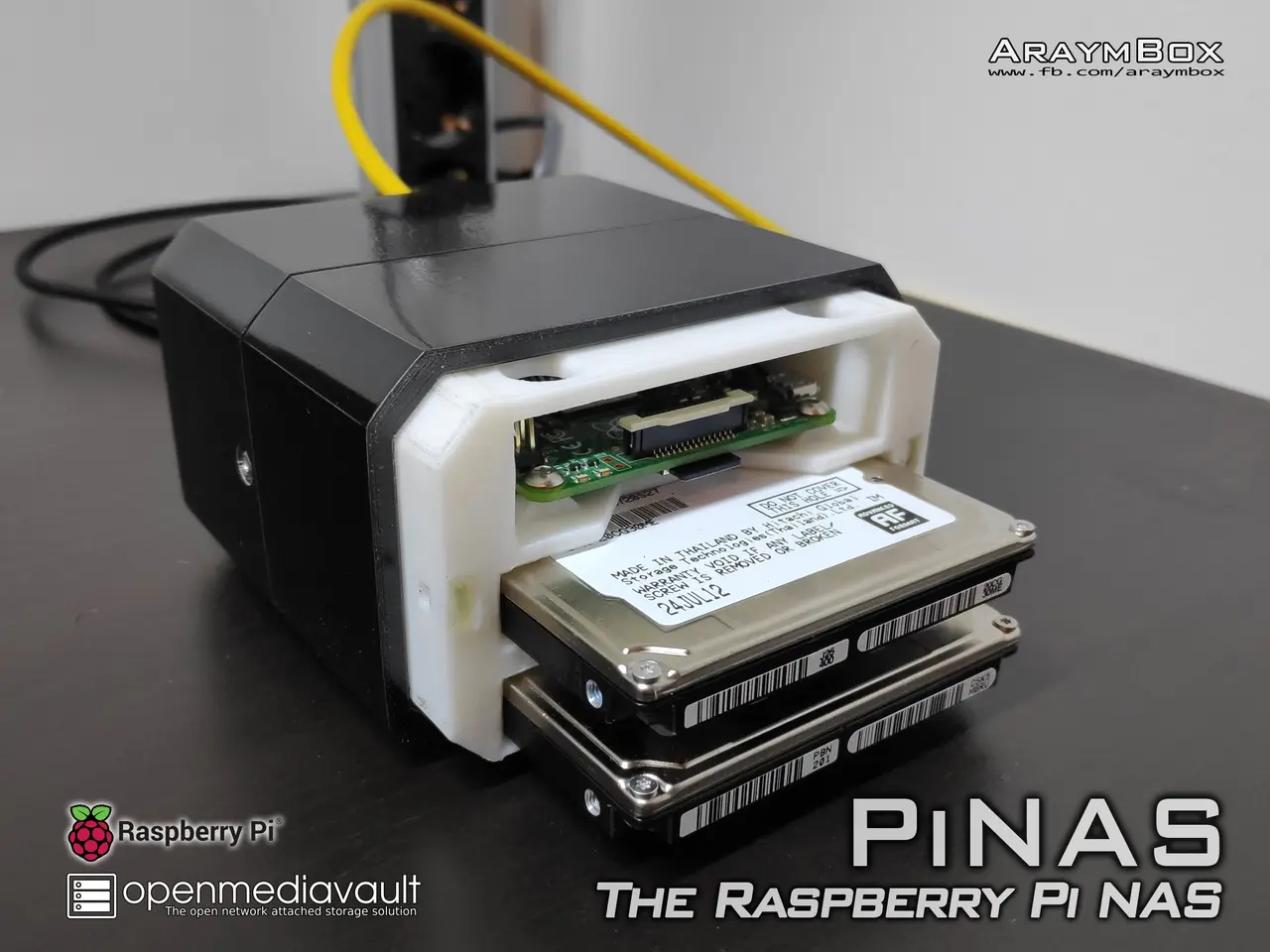

PiNAS - The Raspberry Pi NAS
por araym box en Thingiverse
This case can be used to build a very compact Raspberry Pi powered two bay network attached storage (NAS). If you like the design check out my page AraymBox for other projects. You can also post ideas on how to improve the design. If you want to rebuild this NAS check out my instructable...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a araym box.
Archivos (9)
- piNAS_Guts_HDD.stl STL · 686 KB
- piNAS_Case_Front.stl STL · 279 KB
- piNAS_Case_Middle.stl STL · 29 KB
- piNAS_Case_Back.stl STL · 1,0 MB
- piNAS_Guts_SSD.stl STL · 725 KB
- piNAS_Case_Front_Inlay.stl STL · 213 KB
- piNAS_Case_Front_Inlay_stopper.stl STL · 21 KB
- piNAS_Case_Front_Fan.stl STL · 1,3 MB
- piNAS_Case_Back_Pi4.stl STL · 1,4 MB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 14,496
- Publicado
Sobre este modelo
This case can be used to build a very compact Raspberry Pi powered two bay network attached storage (NAS). If you like the design check out my page AraymBox for other projects. You can also post ideas on how to improve the design. If you want to rebuild this NAS check out my instructable: https://www.instructables.com/id/PiNAS-the-Raspberry-Pi-NAS You can leave a tip (button left) if you like my stuff.

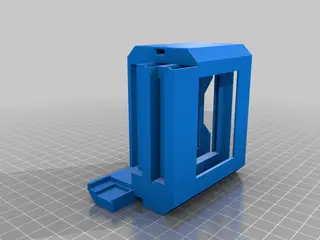

Standard Parts: - piNAS_Guts_HDD: Cage for normal 2.5" HDDs - piNAS_Case_Front: Front part of the case - piNAS_Case_Middle Middle part of the case - piNAS_Case_Back: Back part of the case
Special Parts: - piNAS_Guts_SSD: Cage for slim 2.5" SSDs - piNAS_Case_Front_Inlay: Front part of the case for inlays like wood - piNAS_Case_Front_stopper: Stopper for the inlay - piNAS_Case_Front_Fan: Front part of the case if you want to add a 40mm fan - piNAS_Case_Back_Pi4: Back part of the case for a RasPi 4
Updates: - 04-FEB-2020: Released - 05-FEB-2020: Added piNAS_Case_Front_Fan - 05-FEB-2020: Added piNAS_Case_Back_Pi4
Descripción original del autor, publicada en Thingiverse.
