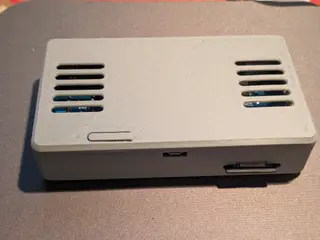

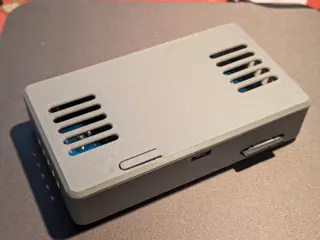

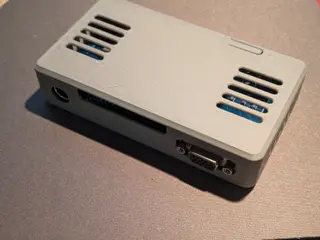

PicoMite VGA Shell V2
A case designed for the PicoMite VGA board you can get at https://www.siliconchip.com.au/Shop/20/6417?default_options=
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Jacob B.
Archivos (4)
- PICOMITE_VGA_BODY_V2_A.stl STL · 260 KB
- PICOMITE_VGA_BODY_V2_B.stl STL · 260 KB
- PICOMITE_VGA_LID_A.stl STL · 146 KB
- PICOMITE_VGA_LID_B.stl STL · 153 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 10
- Publicado
Sobre este modelo
A case designed for the PicoMite VGA board you can get at https://www.siliconchip.com.au/Shop/20/6417?default_options=

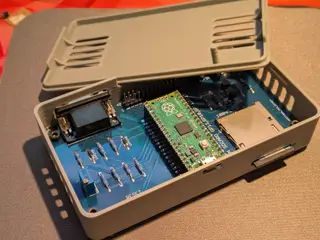

It uses 4 M3 size screws to hold the boards down and 6mm-8mm bumpers.
-=[ V2 Update ]=-

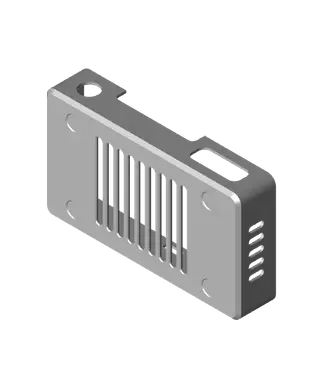

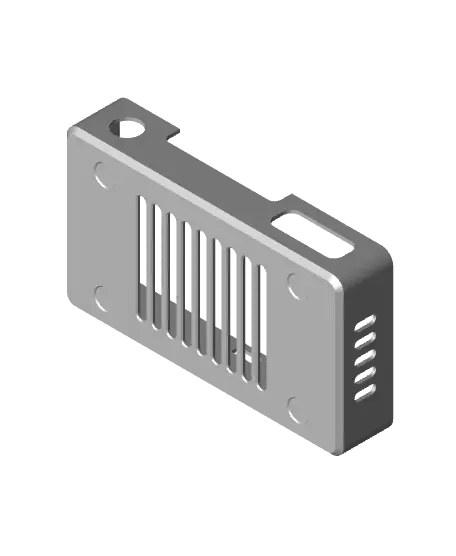

Added a second body with the USB slot lower for a flush soldered PI Pico on the board. Added "speed holes" on the sides for possible different style potentiometers Added second lid option that has a cutout for access for the GPIO Slightly larger SD card opening for easier removal due to the occasional sticking on the case -=[ Files ]=- Body A - header mounted PI Pico Body B - flush soldered PI Pico Lid A - Solid top Lid B - GPIO access top
Enjoy :)
