Sobre este modelo

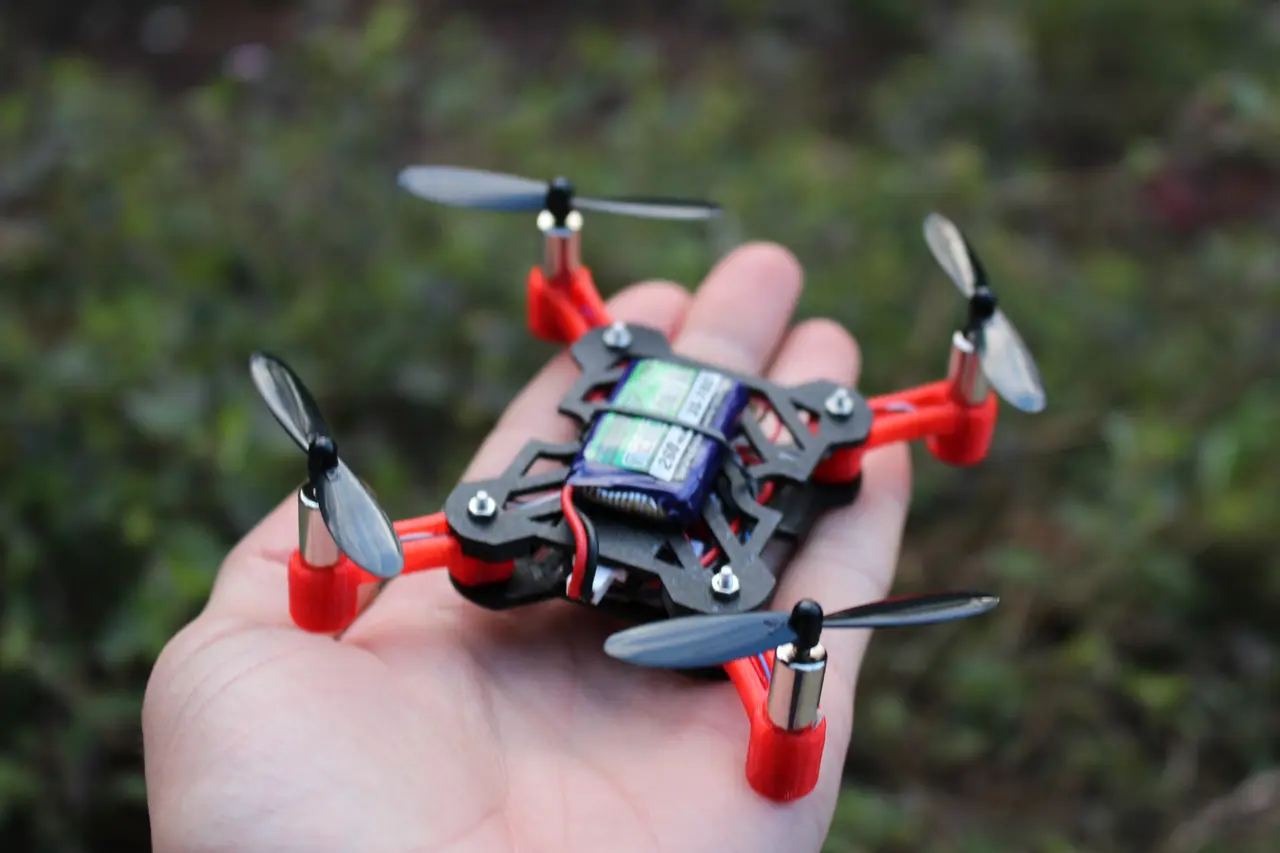

This frame was inspired by Ulfindestrom's Foldable Brushed Microquad. When designing this frame, my goal was to create an ultralight, compact, and super strong trainer quad. As hinted in the name, the Pico110 is 110mm from motor 2 to motor 3 unfolded. Folded, the Pico110 is only 66mm wide and 60mm long, allowing it to easily slip into your pocket. Unlike most foldable quads, the Pico110 is very light, weighing in at only 41 grams fully stuffed (7mm motors no FPV 260mah lipo).
I have created an experimental FPV version that uses the F3 Micro Scisky FC + Camera+ OSD + VTX combo board(s). It works pretty well, but I'm no longer a big fan of the Scisky boards due to their unreliability. If you are interested in building one, I have uploaded the files.
I also plan to develop a standard FPV version for a simple Camera + VTX. Stay tuned...
Descripción original del autor, publicada en MyMiniFactory.
