Sobre este modelo
Tune in to the latest PiOS!

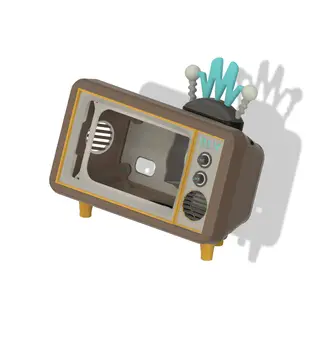

Who doesn't love the classic look of a faux wood grain encased tube TV? Why not have a Raspberry Pi Case that looks like a Vintage TV? Well if that's what you want, YOU ARE IN LUCK!

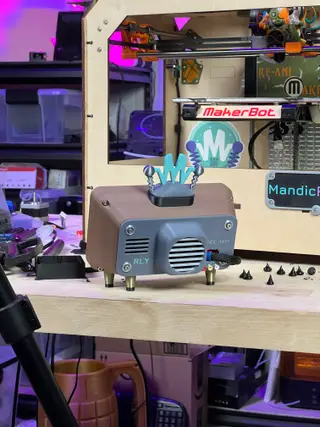

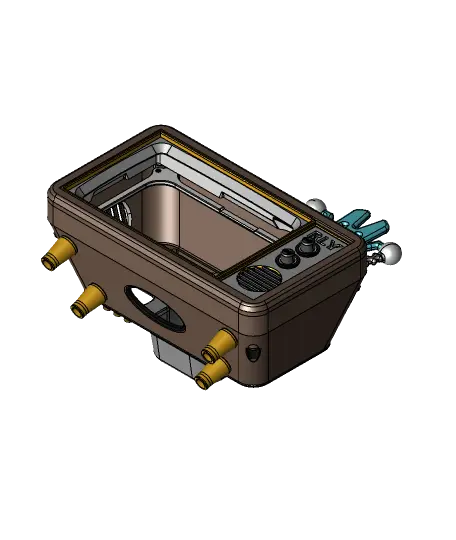

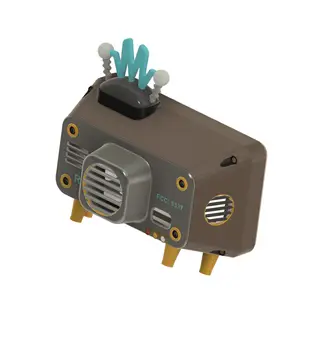

This design is a case that houses a BigTreeTech TFT50 V2.0 touchscreen. This allows you to mount the screen, a Raspbery Pi of your choice (Pi Zero 2w, Pi 3B, Pi 4B) inside and use it as a touchscreen interface or a kitchy little tv computer! There is a single 40mm fan mount in the back to cool the electronics and 2 access holes for passing wiring in and out.
There is room to plug USB cords into the USB-A plugs on a Pi 4B / 3B, and to access the GPIO pins. I cannot garauntee access to the USB-C port, HDMI, or other ports on the Pi 3/4B unfortunately. This was designed for use as KlipperScreen / Klipper install for controlling my 3D Printer "ReAniMaker". ---------------------------------------------------------------
Parts necessary for assembly (Affiliate Links): - BigTreeTech PiTFT50: https://amzn.to/3w2xzH1 - M3 Hardware (threads into the plastic body for various parts): https://amzn.to/3IPU7Te - 5V 40mm Fan: https://amzn.to/3QG3hn6 - Raspberry Pi: good luck...
---------------------------------------------------------------

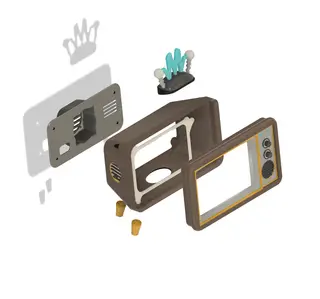

Files Included: - TV Front - TV Main Body - TV Foot (Print x4) - TV Back - PiTFT50 Screen Retainer Bracket
---------------------------------------------------------------
PRINT PARAMETERS: - Recommend 3 Perimeters - 10%+ Infill (I use Gyroid) - Supports Required
---------------------------------------------------------------
Want to Support what I do? Check out my social medias please!
Link Tree: http://www.MandicReally.com/links
---------------------------------------------------------------
All of my Designs are covered by a Creative Commons Non-Commercial License. Sale of prints using my designs are the sole right of myself, the designer, and those I license to do so. Please understand every design is hours of work and multiple prototype prints to ensure quality. Unauthorized sales will result in new designs not being made public.
PLEASE Credit any and all Remixes of my designs: MandicReally
