Phone holder/bracket for monitor

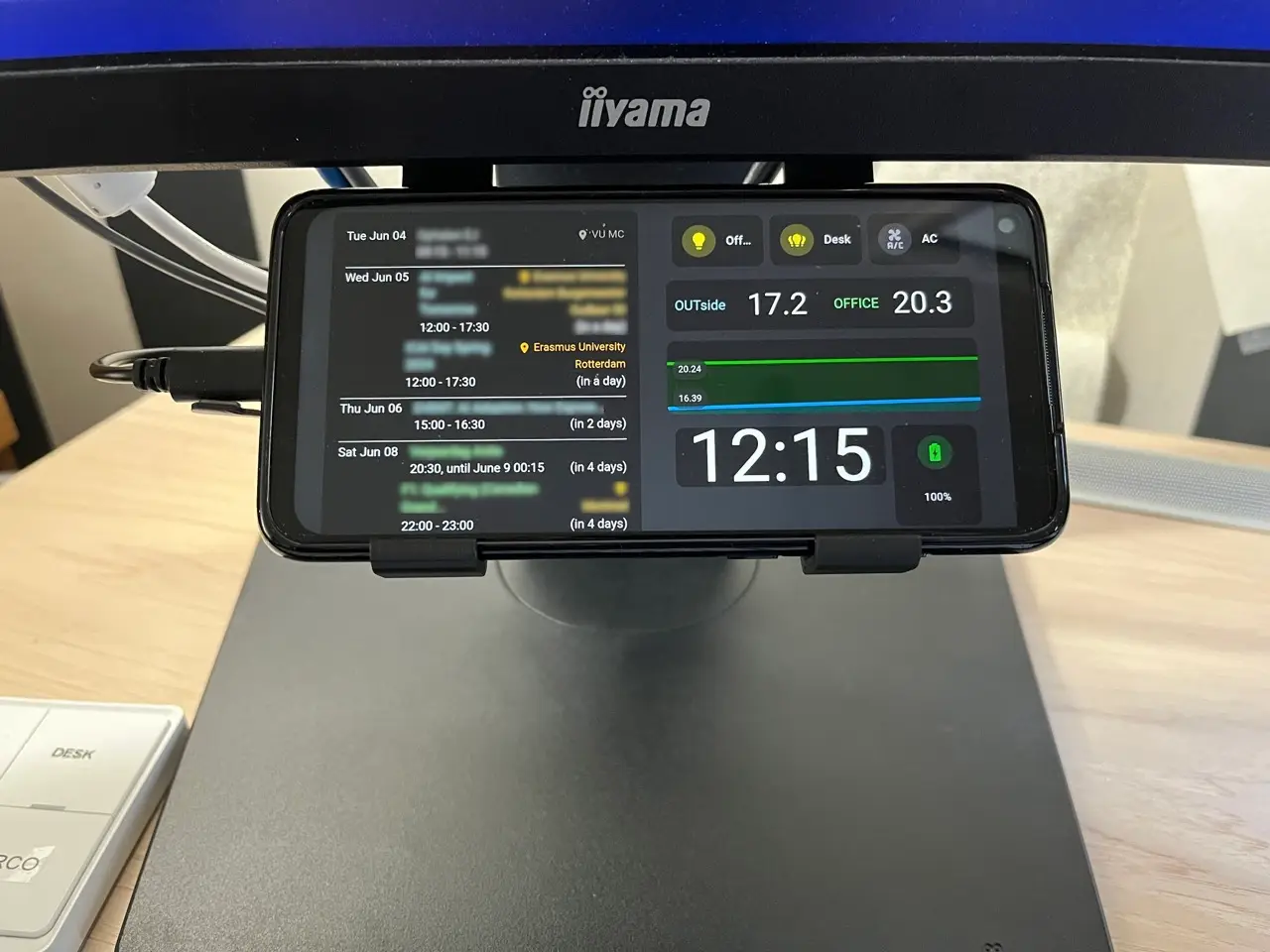

GOAL: Mount a display (phone in this case) below the monitor in my home office. This display shows my agenda, provides controls for lights, AC and shows temperature/time. In the (near) future it will provide more controls and info. Versions - Standard bracket - Bracket with one cable guide - Bracket with two cable guides

The cable guides can be used to guide the charging cable of the screen. It looks the best using a dark cable with a dark phone and dark brackets. NOTE: don't forget to print TWO brackets! :-) Print setup - PLA - 0.2mm - 25% infill - Bottom/Top solid layers: 4 - Perimeters: 4 - No supports needed

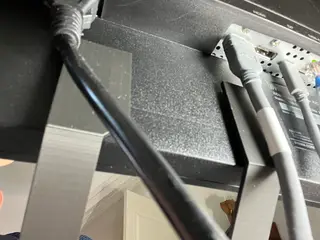

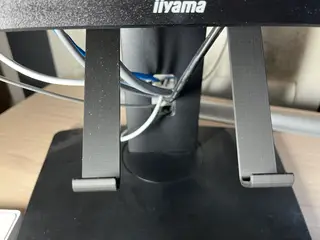

Measurements (per 'standard' bracket) Size: 12.5 cm x 8.4 cm x 3 cm Weight: approx 15 grams Mounting To stick these brackets to the back of the monitor I used thick transparent 'Nano tape' (doublesided tape). Just search and you will find it. It is removable without leaving residu and can even be re-used. (it really can!) Background info - Phone: Older Redmi Note 9- at 35% brightness the power consumption is +/- 1 Watt!

- Application: Home Assistant - Future: push doorbell camera when the doorbell rings - Future: display showing (Prusa) 3d print progress - Future: push 3dprinter camera when 3d print is ready
