Phone clamp for tripod
por pixel2 en Printables

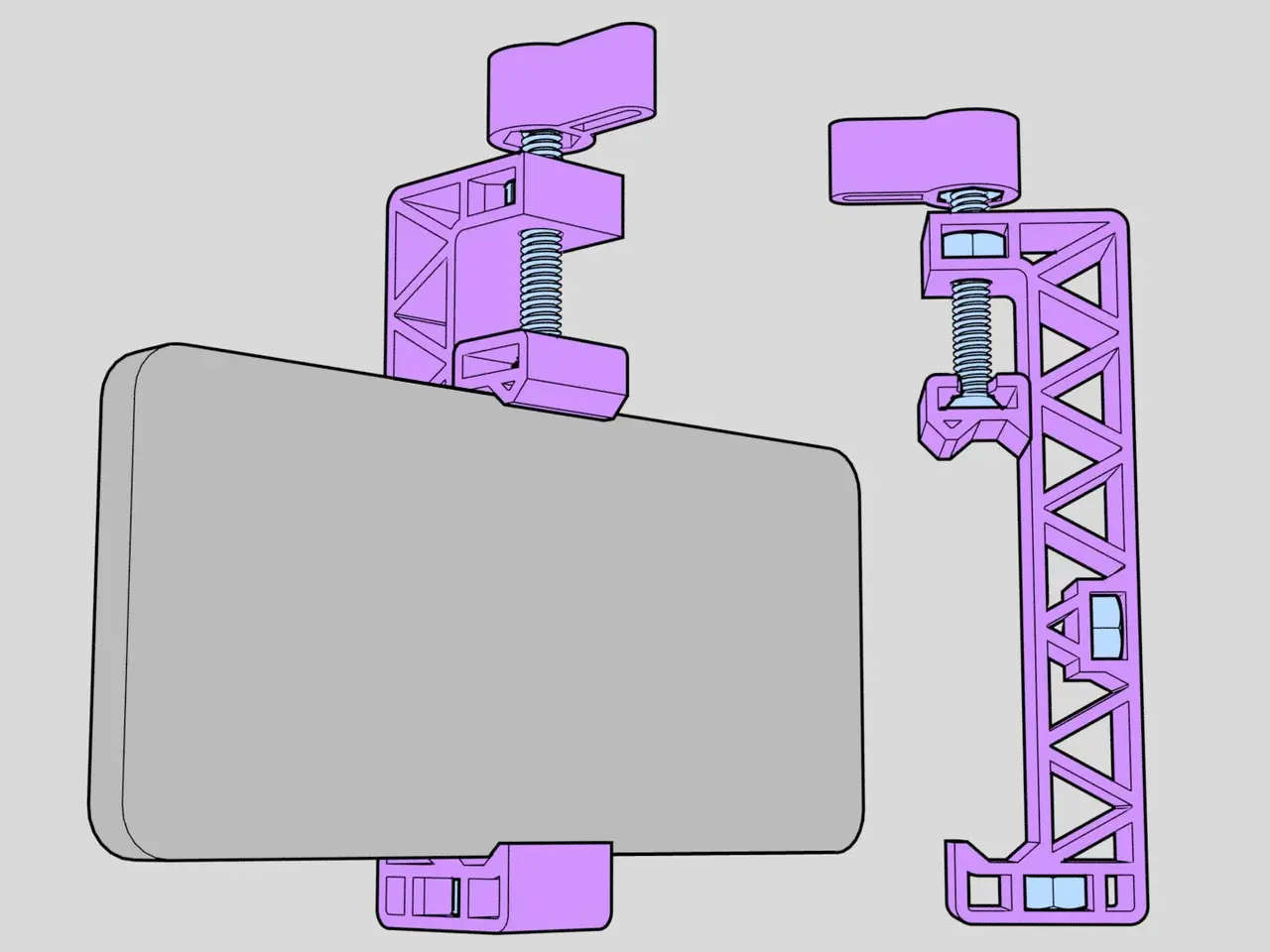

Mount a phone to a tripod.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a pixel2.
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 420
- Publicado
Sobre este modelo
This should work with phones ≤83mm wide. 2 mounting points for portrait or landscape.
Print: .28 layer height and 15 walls. No top/bottom layers, infill or supports.
What you need: flat head 2" machine screw ¼ -20 , 4 nuts, and glue. Match the bottom nut thread to your tripod post.
Assembly: press 3 nuts into the base thread the screw into the top nut snap the jaw onto the head of the screw glue a nut on the end of the screw leaving 5mm of exposed threads glue the handle onto the nut
Now channel your inner Ansel Adams…
Descripción original del autor, publicada en Printables.
