Philips Hue Dimmer Switch V2 → LK FUGA Adapter Kit

3D print files for my custom-designed adapter kit for the Philips Hue Dimmer Switch V2.

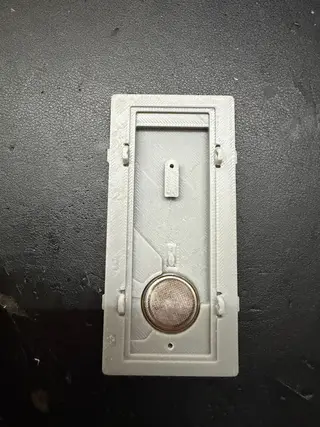

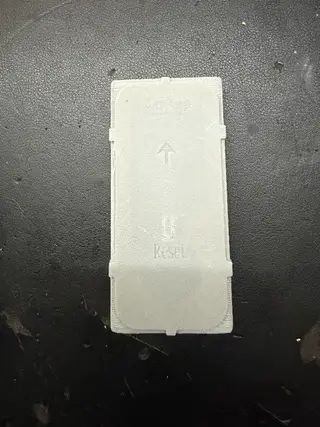

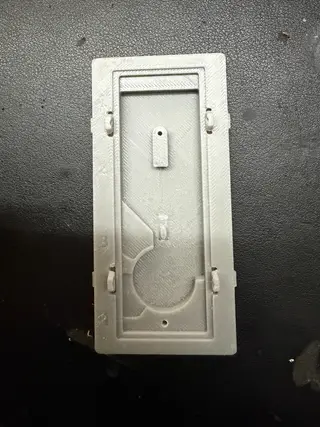

This design allows you to modify a Philips Hue Dimmer Switch V2 so it can be mounted in an LK FUGA Design frame. It creates a sleek, integrated look that blends perfectly with an LK FUGA installation.

📦 Included files

The download package contains the STL files needed to print the adapter parts.

Also included are assembly instructions in PDF format:

English

Danish

German

You will need to provide:

Philips Hue Dimmer Switch V2

LK FUGA Design frame

LK FUGA rocker for 13A 1-pole switch (old type), 1 module

CR2032 battery

Double-sided tape (as needed)

🖨 3D printing

The parts are designed for FDM 3D printing.

Recommended settings:

- Material: PLA or PETG

- Layer height: 0.20 mm

- Supports: Yes

- Infill: 15–20%

🔧 Assembly

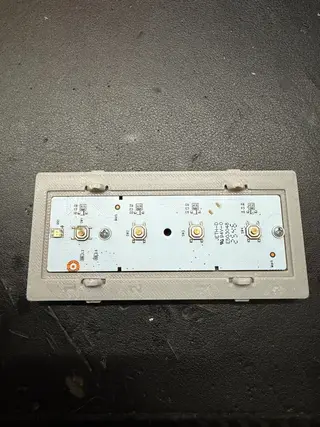

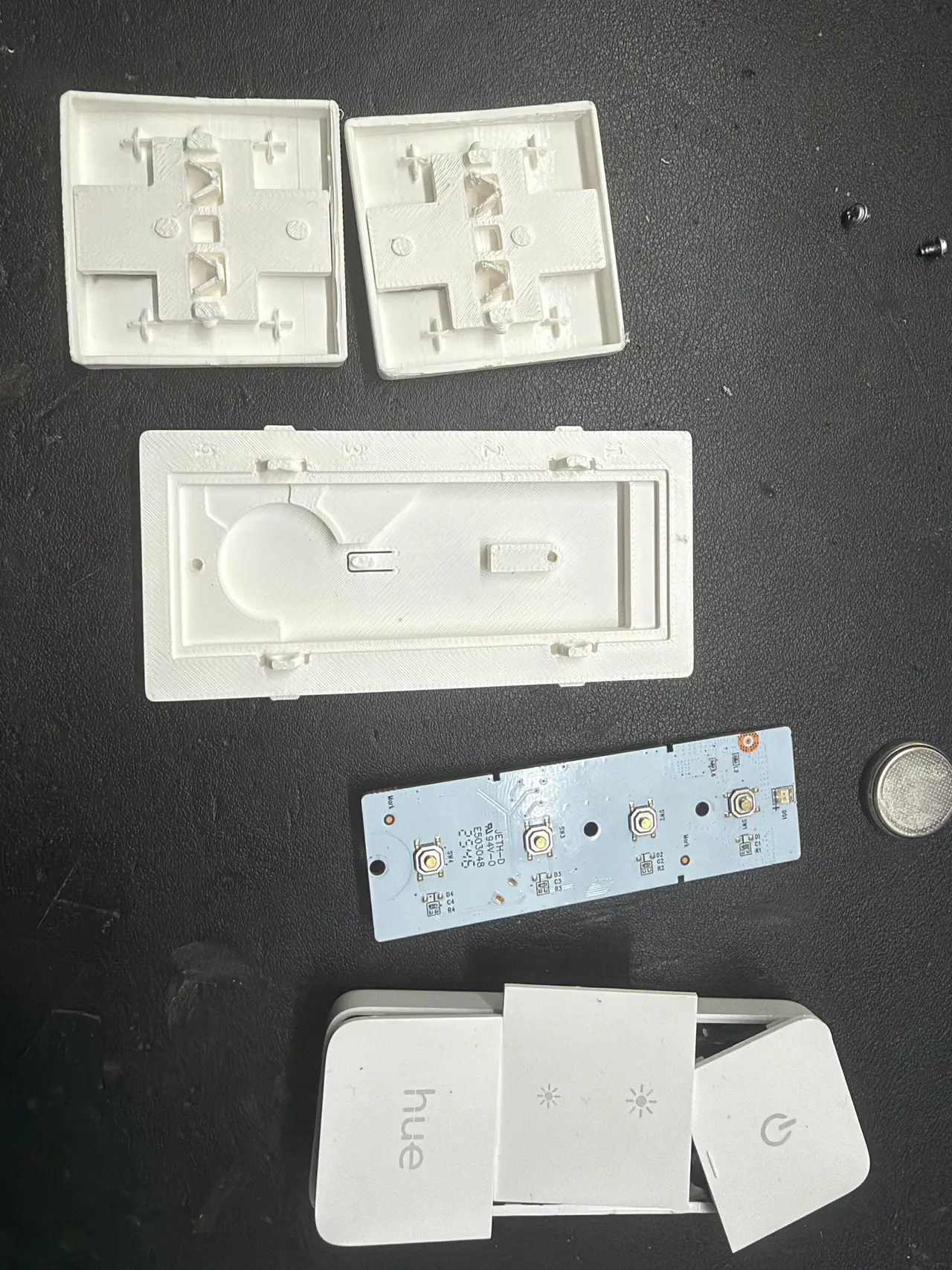

The Philips Hue Dimmer Switch V2 must be disassembled, and the electronics transferred into the 3D-printed parts.

Minor adjustments to the LK FUGA parts may be required during assembly.

Please consult the included PDF assembly instructions before starting.

⚠ Disclaimer

Installation, modification, and use are at your own risk.

🔒 License and usage rights

The files are for personal use only. You may not, without my permission:
