Green Bay Packers Display Box
por The Patient Maker en MakerWorld
Green Bay Packers Folding Door Display Box. Go Pack Go! Bring the spirit of Lambeau Field right into your fan cave.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a The Patient Maker.
Archivos (54)
- 1 Base for LED.stl STL · 230 KB
- 1.stl STL · 178 KB
- 2(1).stl STL · 141 KB
- 2(2).stl STL · 141 KB
- 2(3).stl STL · 141 KB
- 2(4).stl STL · 141 KB
- 2(5).stl STL · 141 KB
- 2(6).stl STL · 141 KB
- 2(7).stl STL · 141 KB
- 2(8).stl STL · 141 KB
- 2(9).stl STL · 141 KB
- 2(10).stl STL · 141 KB
- 2(11).stl STL · 141 KB
- 2(12).stl STL · 141 KB
- 2(13).stl STL · 141 KB
- 2(14).stl STL · 141 KB
- 2.stl STL · 141 KB
- 3.stl STL · 1,1 MB
- 4.stl STL · 1,0 MB
- 5.stl STL · 2,0 MB
- 6.stl STL · 2,0 MB
- 7.stl STL · 1,7 MB
- 8.stl STL · 1,7 MB
- 9.stl STL · 822 KB
- 10.stl STL · 822 KB
- 11.stl STL · 564 KB
- 12.stl STL · 599 KB
- 13.stl STL · 632 KB
- 14.stl STL · 559 KB
- 15.stl STL · 625 KB
- 16.stl STL · 644 KB
- 17.stl STL · 1,1 MB
- 18.stl STL · 1,2 MB
- 19.stl STL · 1,2 MB
- 20.stl STL · 1,3 MB
- 21.stl STL · 1,2 MB
- 22.stl STL · 1,2 MB
- 23.stl STL · 1,2 MB
- 24.stl STL · 1,1 MB
- 25.stl STL · 1,2 MB
- 26.stl STL · 1,2 MB
- 27.stl STL · 1,1 MB
- 28.stl STL · 1,3 MB
- 29.stl STL · 1,2 MB
- 30.stl STL · 1,3 MB
- 31.stl STL · 1,1 MB
- 32.stl STL · 1,1 MB
- 33.stl STL · 400 KB
- Cheese knob(1).stl STL · 9,6 MB
- Cheese knob.stl STL · 9,6 MB
- Cheese.stl STL · 7,8 MB
- Pin for parts 31 and 32(1).stl STL · 25 KB
- Pin for parts 31 and 32.stl STL · 25 KB
- Stand for Cheese.stl STL · 35 KB
- Categoría
- Hogar
- Formatos
- STL
- Descargas (todas las plataformas)
- 89
- Publicado
También en
Sobre este modelo

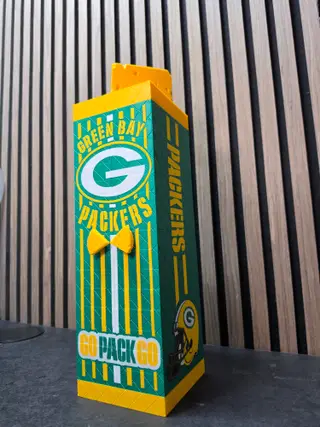

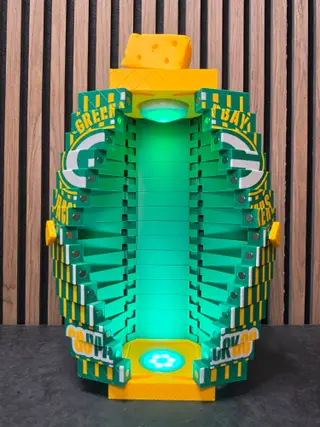

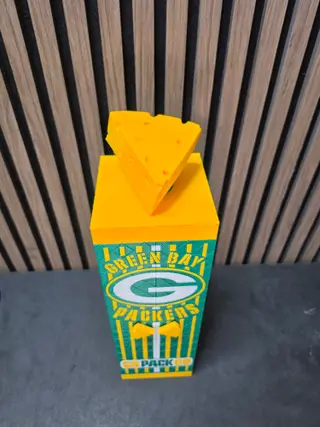

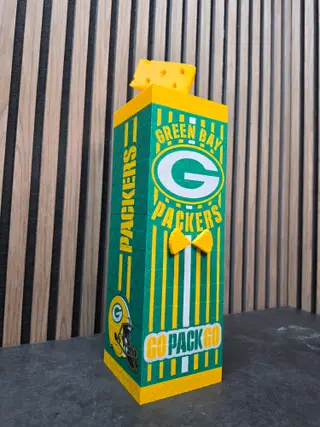

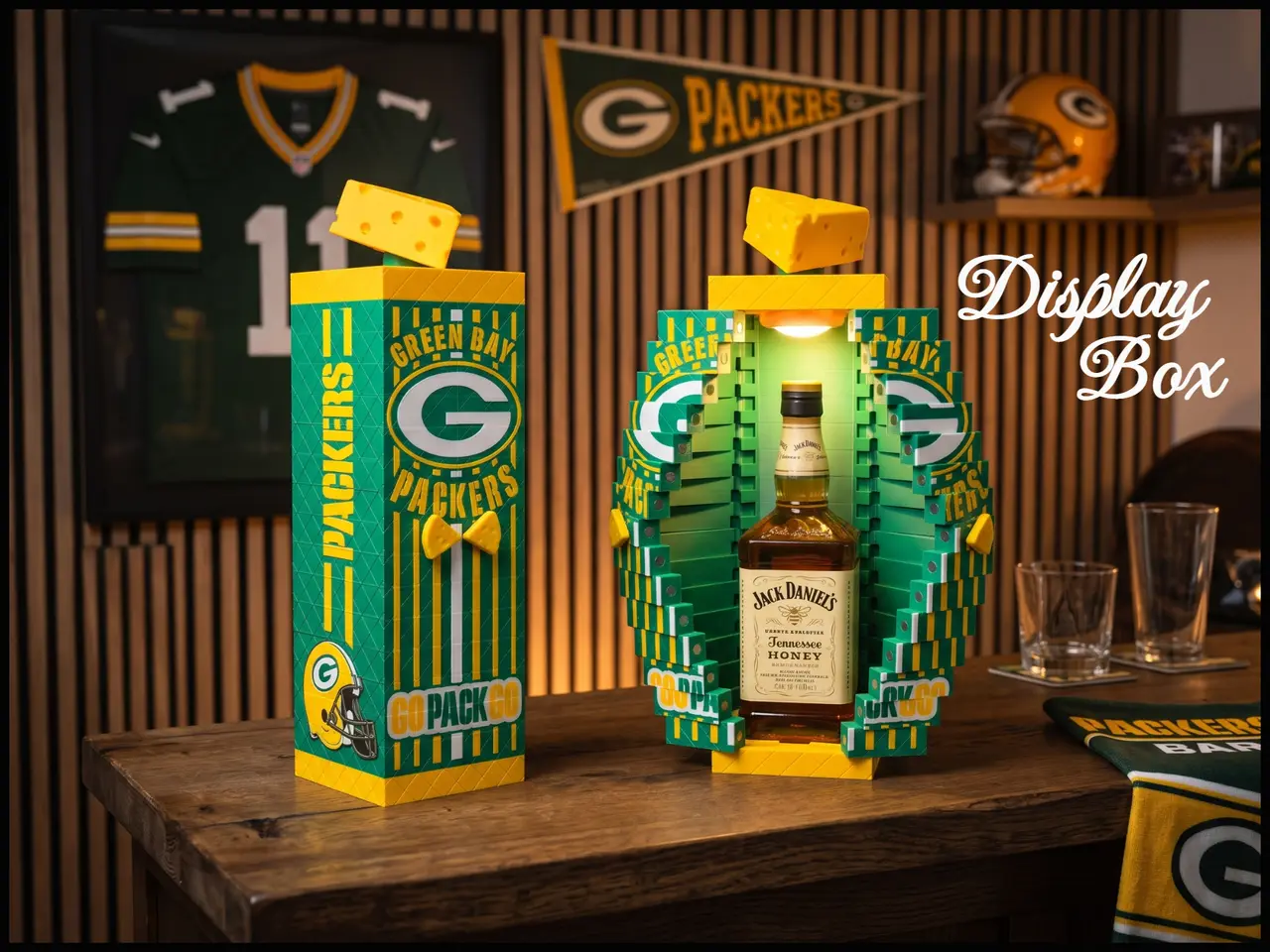

Green Bay Packers Folding Door Display Box Go Pack Go! Bring the spirit of Lambeau Field right into your fan cave. The sports collection heads to Title Town with a tribute to the legendary Green Bay Packers. This model uses my signature segmented folding door mechanism to deliver a dramatic, game-day reveal for your favorite bottle or collectible. (And yes, it even comes complete with the iconic Cheesehead topper!) Features
- LED Compatible: Alternative base for LED Lamp Kit 001 to give your bottle a golden glow. It also has a cutout in the top (ø65mm) to fit an LED to light up the bottle from above.
- Magnetic Snap: Use 8x2mm magnets to provide a satisfying, secure "click" when closing the doors.
- Assembly guide : Follow the detailed assembly guide below.
- Internal dimensions: 91x91x320mm
Technical Specifications : ComponentQuantityNotes Base1Standard or LED-compatible Top1LED-compatible Pins2For parts 31 and 32 Back Parts15 Door Parts30
Hardware Required :
- Steel Rods: 2 pcs (ø6mm x 350mm long)
- Magnets: 30 pcs Round 8x2mm (Required for door closure) Max strength N35
- Adhesive: CA Glue (Superglue) for magnets and final assembly.
- Lighting: Optional LED Lamp Kit 001 / KC007 or similar
- Filament : I used Bambu labs filament for this project.
Want it to look exactly like the photos? Use these filaments :
- Bambu Lab PLA Basic Mistletoe Green
- Bambu Lab PLA Basic Sunflower Yellow
- Bambu Lab PLA Basic Jade white
Assembly Tips
- Alignment: Ensure your steel rods are clean and straight for the smoothest door rotation.
- Supports : Make sure all the supports are removed before assembly.
- Magnets : Be sure to orient the polarity of the magnets under assembly.
- Rod length : Before gluing the top on, double check that the rods aren't to long.
- Tolerance : Printers and filaments can behave differently. In rare cases, the holes can be a bit to tight because of settings. If this happens, i recommend using a drill with a 6mm drill bit. Just run it through the hole a few times and you should be fine.
You can find the steel rods you need here → (affiliate link) If Bambu i out of stock, Led lamp kit 001 alternative → (affiliate link) If Bambu i out of stock, KC007 alternative → (affiliate link) 8X2mm Magnets → (affiliate link)
One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below. Each individual part is marked with a number, making it very easy to assemble.
Big thanks to PCBWay for sponsoring this project. https://www.pcbway.com/rapid-prototyping/
Descripción original del autor, publicada en MakerWorld.
