PFEIFER | Mini Power Whistle
por Charles Regaud en Printables
Meet PFEIFER, a tiny but very very powerful pebble-shaped whistle.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo sin pedir permiso ni dar crédito.
Al descargar aceptas respetar la licencia y dar crédito a Charles Regaud.
Archivos (5)
- Categoría
- Hogar
- Formatos
- STL
- Descargas (todas las plataformas)
- 5,313
- Publicado
También en
Sobre este modelo

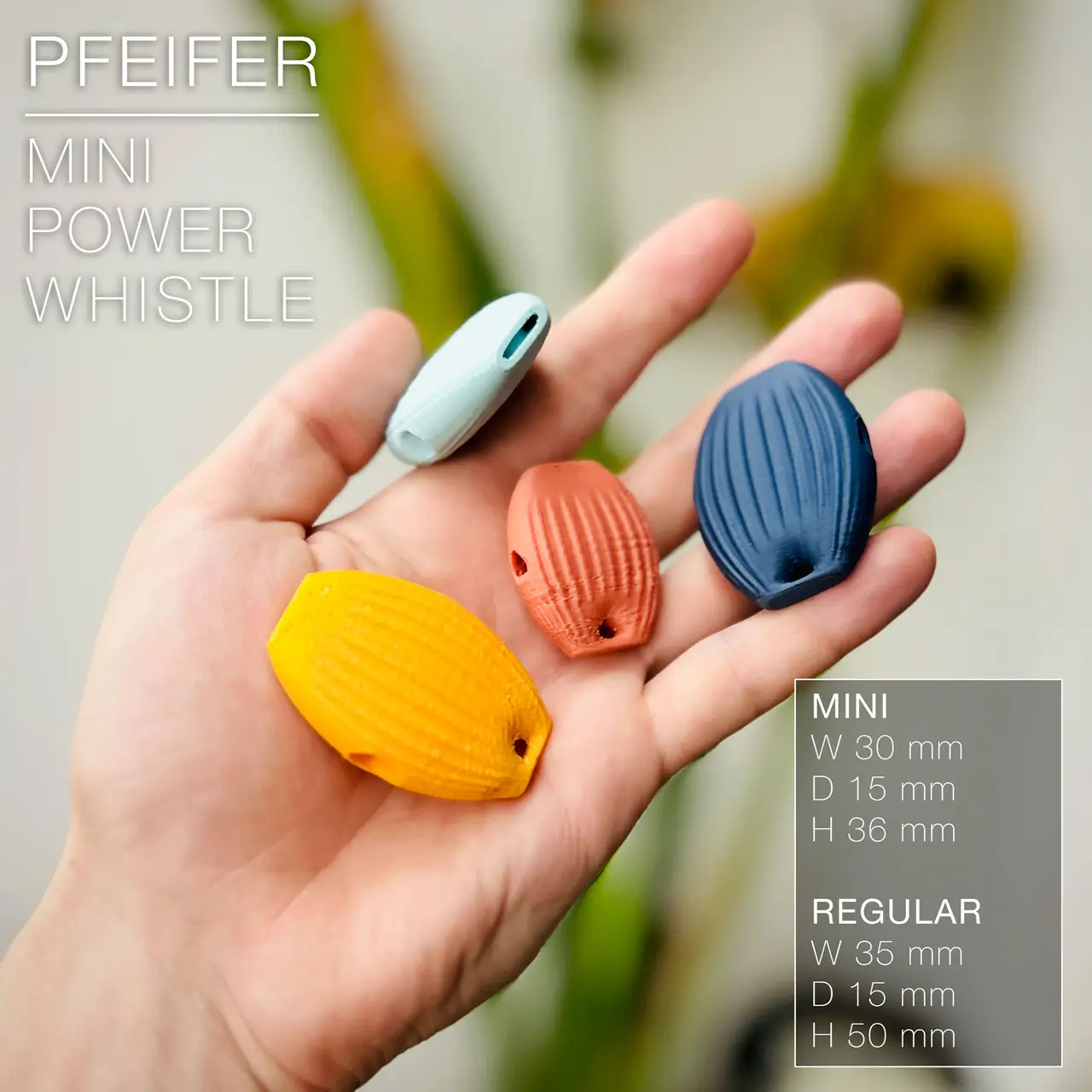

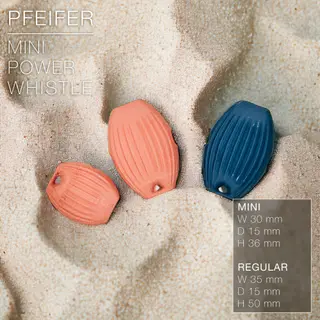

PFEIFER | Mini Power Whistle Meet PFEIFER, a tiny but very very powerful pebble-shaped whistle. It takes only 10g to print and is available in 2 sizes, Regular and Mini, and a variety of tones: - Regular in mid-tone 2.5KHz - Regular in high-pitch 4KHz - Regular in dual tone (2.5KHz + 3.5KHz) - Mini in high-pitch 4KHz - Mini in mid-tone 2.5KHz

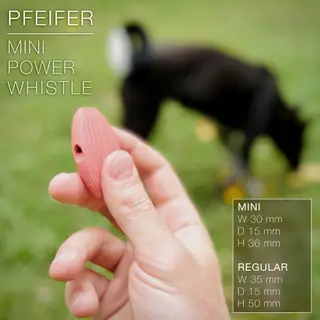

Our cute rescue dog responds surpisingly well to the 4KHz. Don't mind the print quality on the pictures. I live in Taiwan (but I'm French.. long story..) and raining season just kicked. It's so humid it's almost impossible to get my prints right. Anyway... Happy printing!

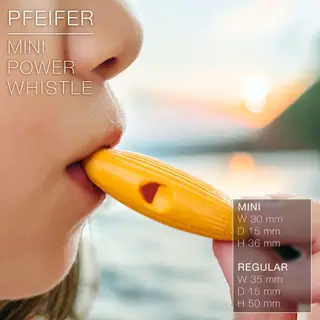

V2 UPDATE: The keyhole on V1 versions was a bit too small, so was enlarged on V2. DIMENSIONS (Regular) | W 35 mm x D 15 mm x H 50 mm DIMENSIONS (Small) | W 30 mm x D 15 mm x H 36 mm PRINTING | 30min
All STL files are already oriented properly. Infill: 20% Wall line count: 2 Resolution: 0.2~0.3mm/layer or less (the bases in the pictures were printed in 0.2mm/layer) Build adhesion type: Brim 4mm Supports: None
Descripción original del autor, publicada en Printables.
