This is simple spoole for strips from PET bottles. The strips are then recycled to filament.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a mirabatek.
Archivos (8)
- PET_Strip_Spooler_Bottom.stl STL · 379 KB
- PET_Strip_Spooler_Top.stl STL · 609 KB
- PET_Strip_Spooler_Handle.stl STL · 172 KB
- PET_Strip_Spool_Holder_Nut.stl STL · 1,4 MB
- PET_Strip_Spool_Holder.stl STL · 6,3 MB
- PET_Strip_Spool_Nut_Only.stl STL · 1,1 MB
- PET_Strip_Spool_Washer_Only.stl STL · 561 KB
- PET_Strip_Spool_Washer_Heavy.stl STL · 610 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 5,186
- Publicado
Sobre este modelo

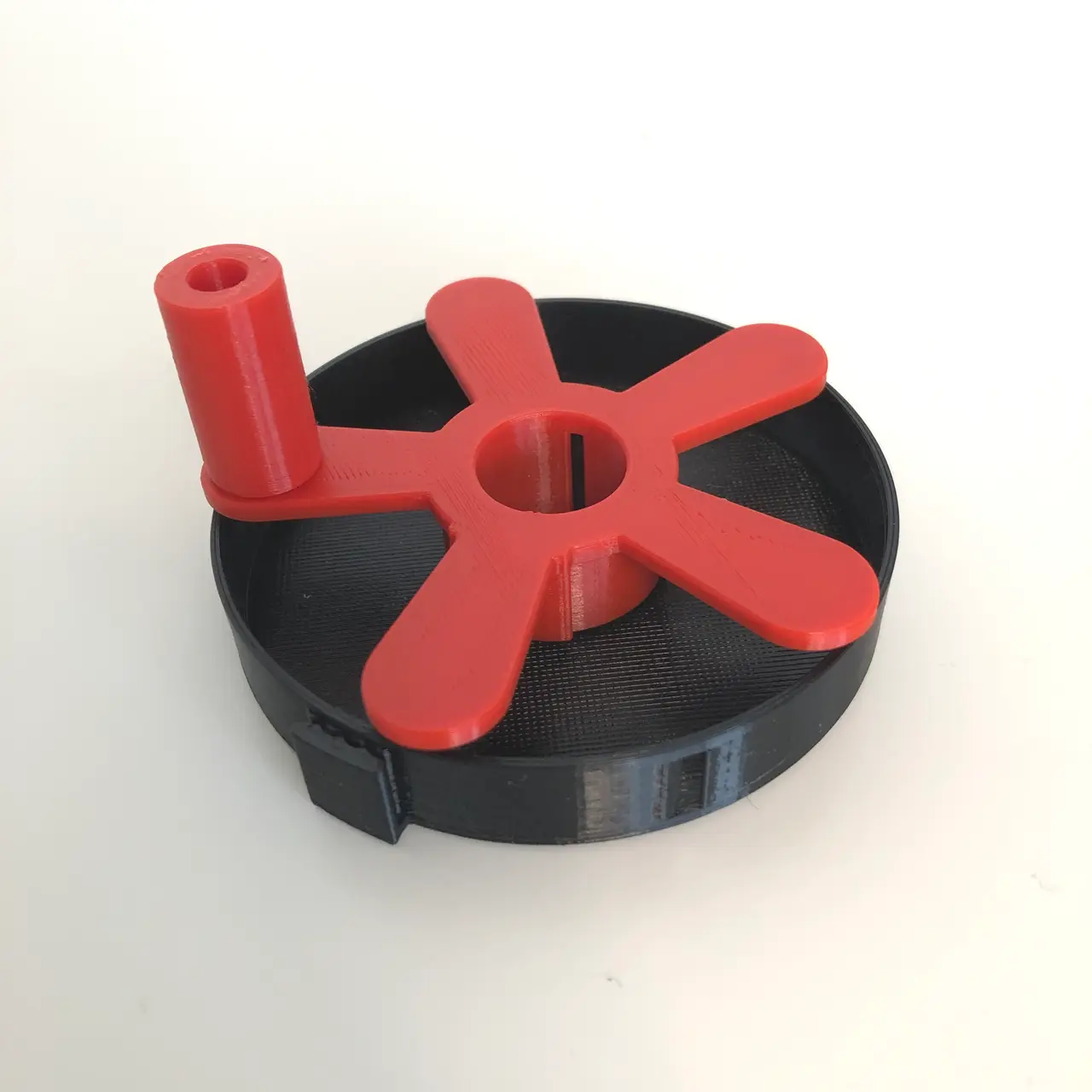

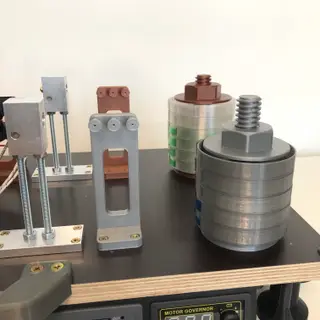

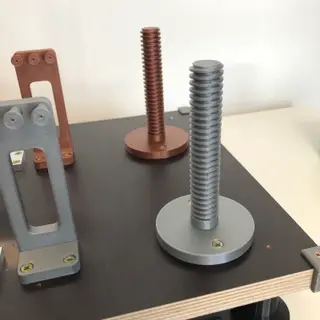

You can use the PET Strip Spooler to easily store strips from PET bottles in compact form and nicely winded. Up to 7 spools will fit into the spool holder. The strip can be leaded from the holder to the machine for conversion to fillament. The strip unwind freelly. I'm using this spooler for some time and it works very well. You will gain the skill after a few bottles. Bill of material: - M3x20 screw with allen hex head

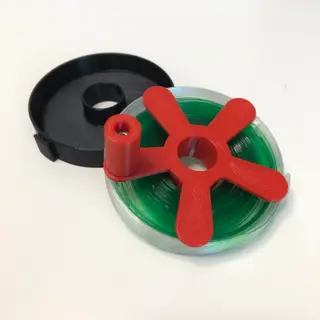

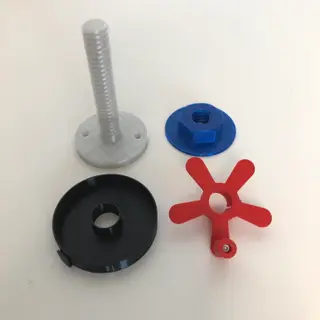

Assembly: The hex screw is screwed directly to the spooler body. Here you can see how to use the tool:
Check also my PET strip cutter here. Update 12.2.2023 - Added separate nut and washer (print the nut with 0.15mm layer height) - Added washer with space for metal washer (outer diameter 72mm. inner diameter 22mm, height 5.6mm). This washer works like weight and block the PET strip to slip.
