Peon230 - Quadcopter

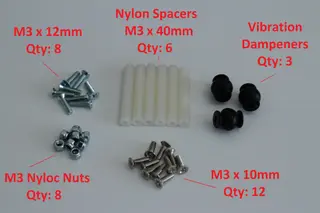

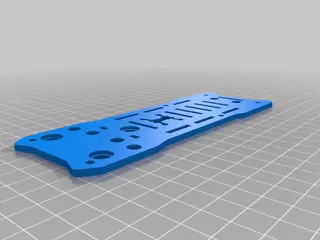

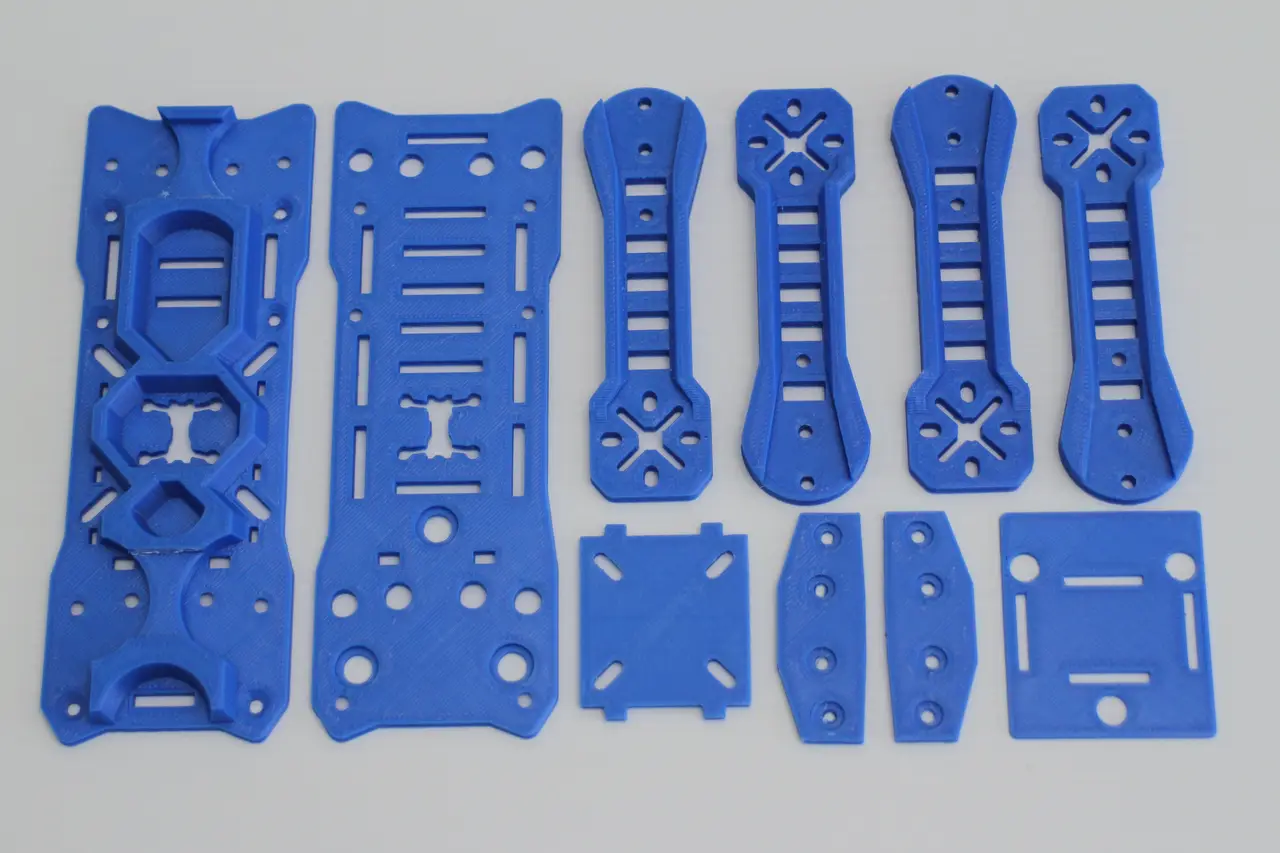

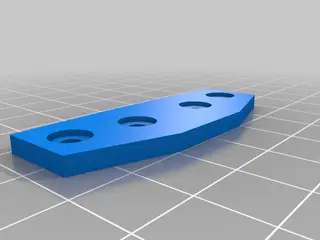

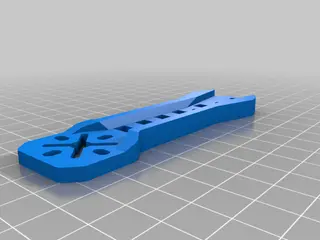

Designed for strength, function and light weight, build yourself this 230 size Quadcopter frame. All parts printed at 0.2mm layer height and 3 perimeters. -Top and Bottom frames, HDcam and FPVcam @ 30% infill x 1 of each -Arms @ 100% infill x 4 -ArmSupport @ 100% infill x 2 http://youtu.be/-e-3kbXzwzk http://youtu.be/jaZK9bDb17U http://youtu.be/BU2Z-EG56js Suggested Setup: -Motor: RacerStar 1806 2280kv or Racerstar 2204 2300KV -ESC: Racerstar RS20Ax4 20A 4 in 1 (inbuilt PDB) -Prop: 10 Pairs GEPRC 5040 V2 5 Inch 3 Blade Propeller -Flight Controller: F3 Acro or F4 with Current Sensor -Battery: ZOP 3S 1100mah 65c or ZOP 4S 1100mah 65c -LiPo Battery Charger: iMAX B6 Digital RC Lipo Balance Charger 12V 5A AC Power Adapter XT60 Connector to Banana Plug -Remote Control: FlySky FS-i6 or FrSky Taranis Transmitter and FrSky XM+ Receiver HDcam mounting strap slots compatible with Mobius, RunCam and GoPro. -Optional extras if you need them: Lipo Battery Tie Down Strap XT60 Male Female Plug Connector 12AWG 10cm Power Cable Silicone Anti-vibration Pad in for 22XX Series Motor Non-printed parts required: -12 x M3x10mm countersunk screws for Top/Bottom frame (Amazon affiliate link) -6 x M3x40mm Nylon Spacers for Top/Bottom frame (Amazon affiliate link) -8 x M3x12mm countersunk screws for Arms (Amazon affiliate link) -8 x M3 Nyloc nuts for Arms (Amazon affiliate link) -3 x Vibration Ball Dampeners for HDcam Updated Base and Top v1.1 - rear mounting spacers moved further back for better rear arm support. Added 22 size Motor Arm Enjoy this design? Consider supporting me on Patreon: https://www.patreon.com/Tech2C
