Pegstr - Pegboard Wizard
por Marius Gheorghescu en Thingiverse
Infinite ways to create pegboard holders and bins for tools, parts or display objects. Highlights: - One or multiple (m•n matrix) objects per holder - Round, square or rectangular with rounded corners - Generate various shapes of bins and trays (closed bottom) - Chose between stronger or...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Marius Gheorghescu.
Archivos (12)
- PegBoard_4by4_6.5x6.5.stl STL · 868 KB
- PegBoard_2by2_10x10.stl STL · 517 KB
- PegBoard_2by1_10x20.stl STL · 678 KB
- PegBoard_windscreen_tool.stl STL · 527 KB
- PegBoard_MT2.stl STL · 607 KB
- PegBoard_box_100x60.stl STL · 1,3 MB
- PegBoard_box_60x40.stl STL · 833 KB
- PegBoard_flashlight.stl STL · 496 KB
- PegBoard_6by4_10mm.stl STL · 1,3 MB
- PegBoard_40x10_small.stl STL · 661 KB
- PegBoard_caliper.stl STL · 489 KB
- PegBoard.scad SCAD · 10 KB
- Categoría
- Herramientas
- Formatos
- STL, SCAD
- Descargas (todas las plataformas)
- 240,687
- Publicado
Sobre este modelo

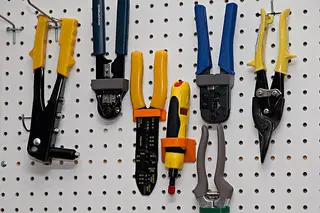

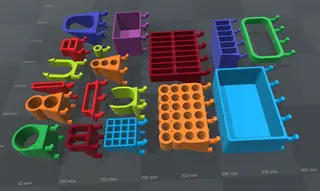

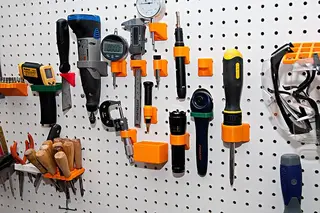

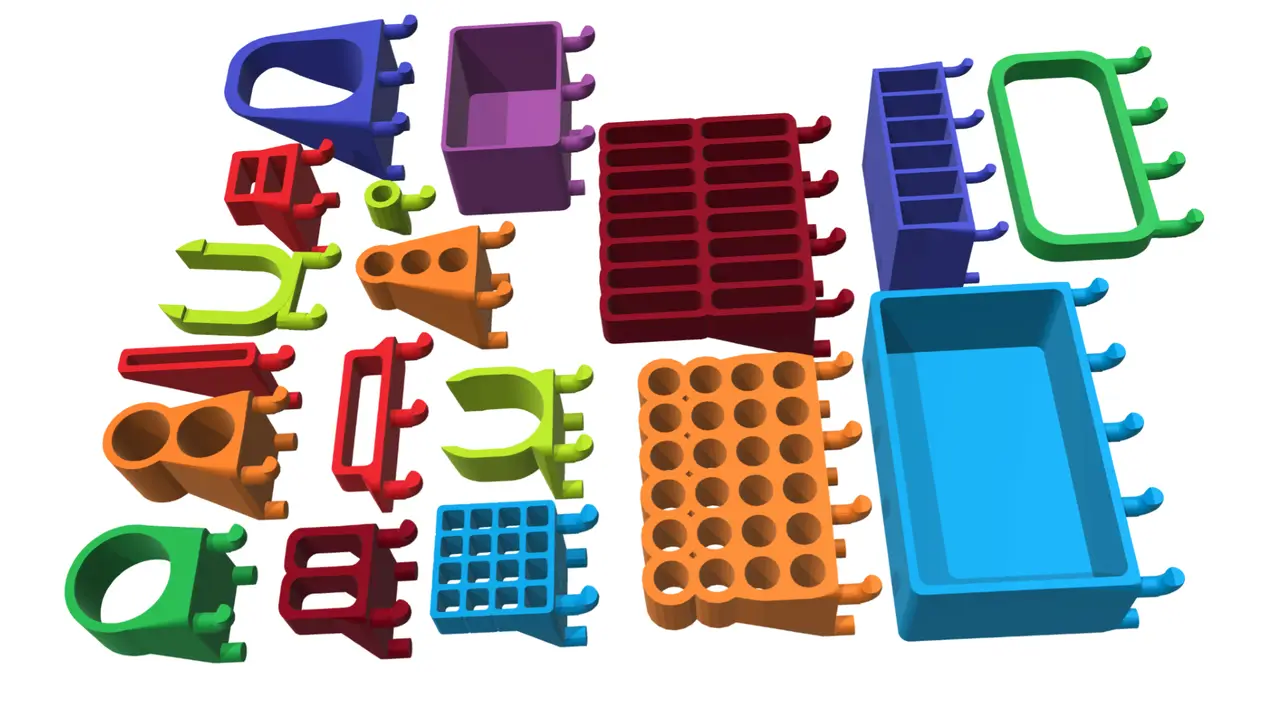

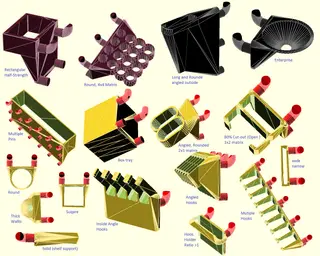

Infinite ways to create pegboard holders and bins for tools, parts or display objects. Highlights: - One or multiple (m•n matrix) objects per holder - Round, square or rectangular with rounded corners - Generate various shapes of bins and trays (closed bottom) - Chose between stronger or economical, straight or tapered, etc - Can be partially open (to click / snap in objects) and angled up or down
Note: This is designed to work with US-style pegboard (1/4" holes, 1" spaced) but I'm working on updating the design to support other pegboards requested in the comments.
Example objects: - https://youtu.be/gb9It1dF2z4 - http://youtu.be/T17yfQddx3c
GitHub repo: https://github.com/MGX3D/pegstr Note: if you intend to use this for commercial purposes please contact me first.
Descripción original del autor, publicada en Thingiverse.
