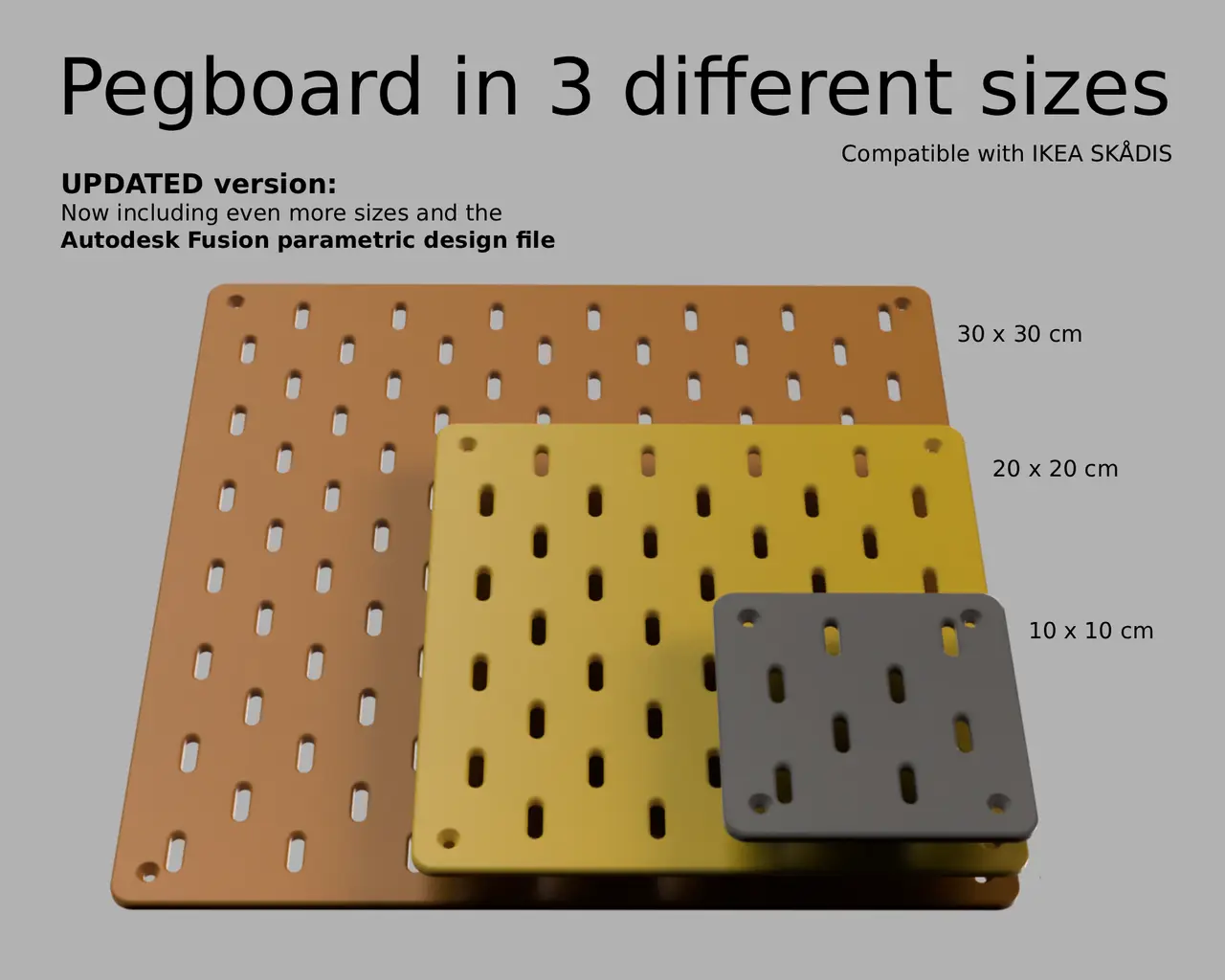

Pegboard in 3 different sizes
por GokuXIV en Printables
Pegboard in 3 different sizes, fully compatible with the IKEA Skadis Pegboard. Update: added the Fusion parametric file
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a GokuXIV.
Archivos (15)
- Pegboard parametric.f3d F3D · 1022 KB
- 30 cm2.3mf 3MF · 242 KB
- 20 cm2.3mf 3MF · 107 KB
- 16 cm2.3mf 3MF · 71 KB
- 20cm x10 cm.3mf 3MF · 57 KB
- 10 cm2.3mf 3MF · 37 KB
- Wall spacer 1 cm.3mf 3MF · 11 KB
- Wall spacer 2 cm.3mf 3MF · 14 KB
- Board mount 4 boards 1 cm.3mf 3MF · 27 KB
- Board mount 4 boards 2 cm.3mf 3MF · 31 KB
- Board mount 2 boards 1 cm.3mf 3MF · 24 KB
- Board mount 2 boards 2 cm.3mf 3MF · 27 KB
- Board mount corner 1 cm.3mf 3MF · 36 KB
- Board mount corner 2 cm.3mf 3MF · 37 KB
- Usage instruction parametric design in Autodesk Fusion.pdf PDF · 102 KB
- Categoría
- Organización
- Formatos
- F3D, 3MF, PDF
- Descargas
- 4,093
- Publicado
Sobre este modelo
Pegboard in 3 different sizes. Fully compatible with the IKEA Skadis Pegboard solution. Print settings: - 0.2 mm layer height
- No support needed
Mounting: - Please use 3mm or 4mm screws. Max head size 8 mm.
- Either place the board mounts or wall spacer inbetween the board and the wall, I have uploaded two options, 1 cm or 2 cm clearance between wall and board. Officially IKEA uses a 2 cm space between wall and board, personally i prefer 1 cm.
Updated version: - I have added a Parametric Design file for Autodesk Fusion. This enables you to create your own board dimensions. I added an instruction how to use it in the files section or via this link.
- I have added a slight tolerance at the outer dimensions for a perfect fit when you use multiple boards.
- I added 2 extra sizes, directly availble for you to download.
- Added 2 extra types of mounts when you use multiple boards.
Enjoy and when possible, please share a picture of your print.
