Peekaboo Witch Duck — modelo 3D

Peekaboo Witch Duck

por Tyler Ray en Printables

Press this chubby witch duck to reveal a tiny ghost duck! A spring-powered Halloween surprise with no AMS needed.

Descargar gratis Ver en Printables

Todos los archivos (2) en un ZIP

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Tyler Ray.

Archivos (2)
Categoría
Hogar
Formatos
3MF, TXT
Descargas
70
Publicado

Sobre este modelo

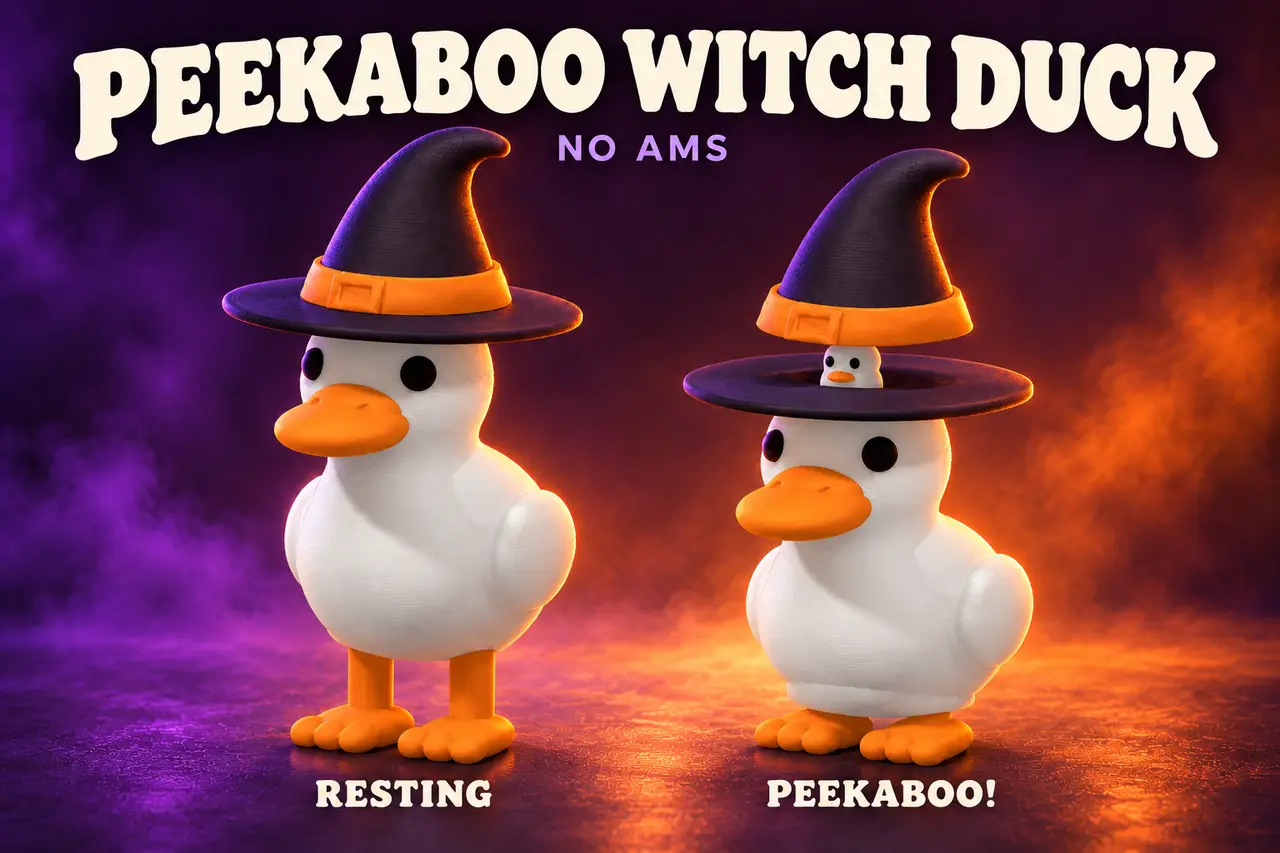

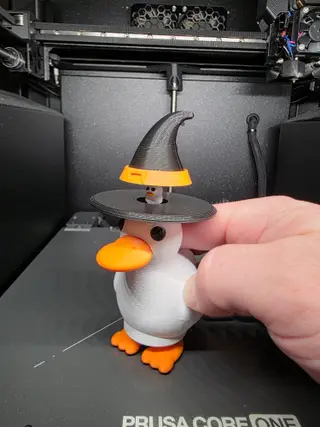

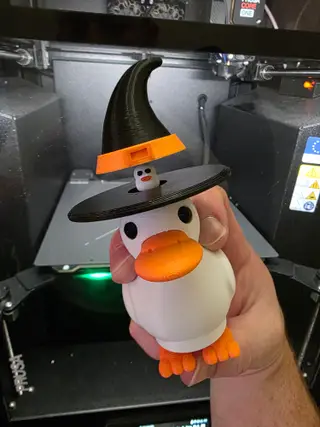

Meet the Peekaboo Witch Duck! 🦆👻 This little witch has a tiny surprise hiding under his hat. Press his chubby body down and a little ghost duck peeks out to say boo! Let go, and the spring brings him back up to hide his spooky little friend again. A playful addition to the Halloween animal collection, ready to haunt your desk, shelf, or windowsill. No AMS or multicolor printer needed! The model comes in 13 separate pieces, so you can print each color individually and assemble everything afterward. I went with white, orange, and black to match the original Little Witch Duck—but feel free to make him your own. The ghost duck’s rounded eyes and tiny bill are molded into his body. Just paint the eyes black and the bill orange!

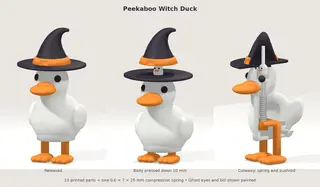

What you’ll need: One 0.6 × 7 × 25 mm compression spring, with 12 coils. Dimensions are wire thickness × outside diameter × free length. Glue for the fixed pieces. Black and orange paint for the ghost duck's face. A small flat screwdriver for the quarter-turn latch.

Printing tips: Approximately 126 mm tall when assembled. Print at 100% scale. PLA, 0.20 mm layers, 2 perimeters, and 10% infill are a good starting point. Supports are needed in some areas; see the included Print and Assembly Instructions. Keep moving parts free of glue and check the movement before final assembly. The bottom opens with a quarter-turn latch for easy access to the mechanism. If you print one, share a make—I’d love to see your colors and tiny ghost ducks! 🎃 HAPPY HALLOWEEN!

Descripción original del autor, publicada en Printables.
