PAW CLOUD - Magnetic Cloud Pet Bowl Stands • Blank Name Areas

softer place for every meal.

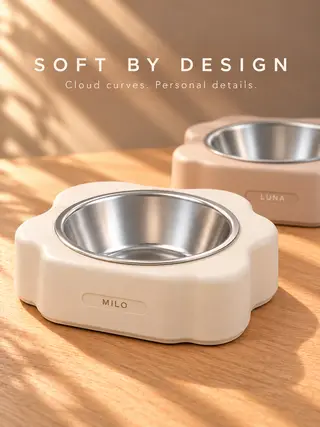

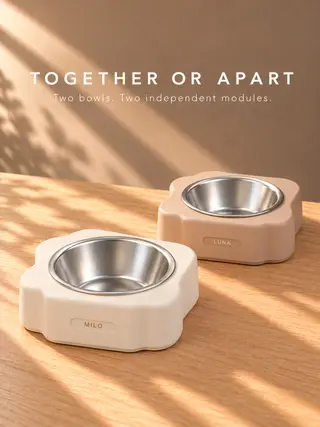

PAW CLOUD pairs two independent cloud-shaped pet bowl stands with broad scalloped curves, flat magnetic joining faces, an inset base and a subtle recessed name area. Keep the modules together using concealed magnets, or separate them to suit your feeding space. Removable stainless steel inserts hold the food and water.

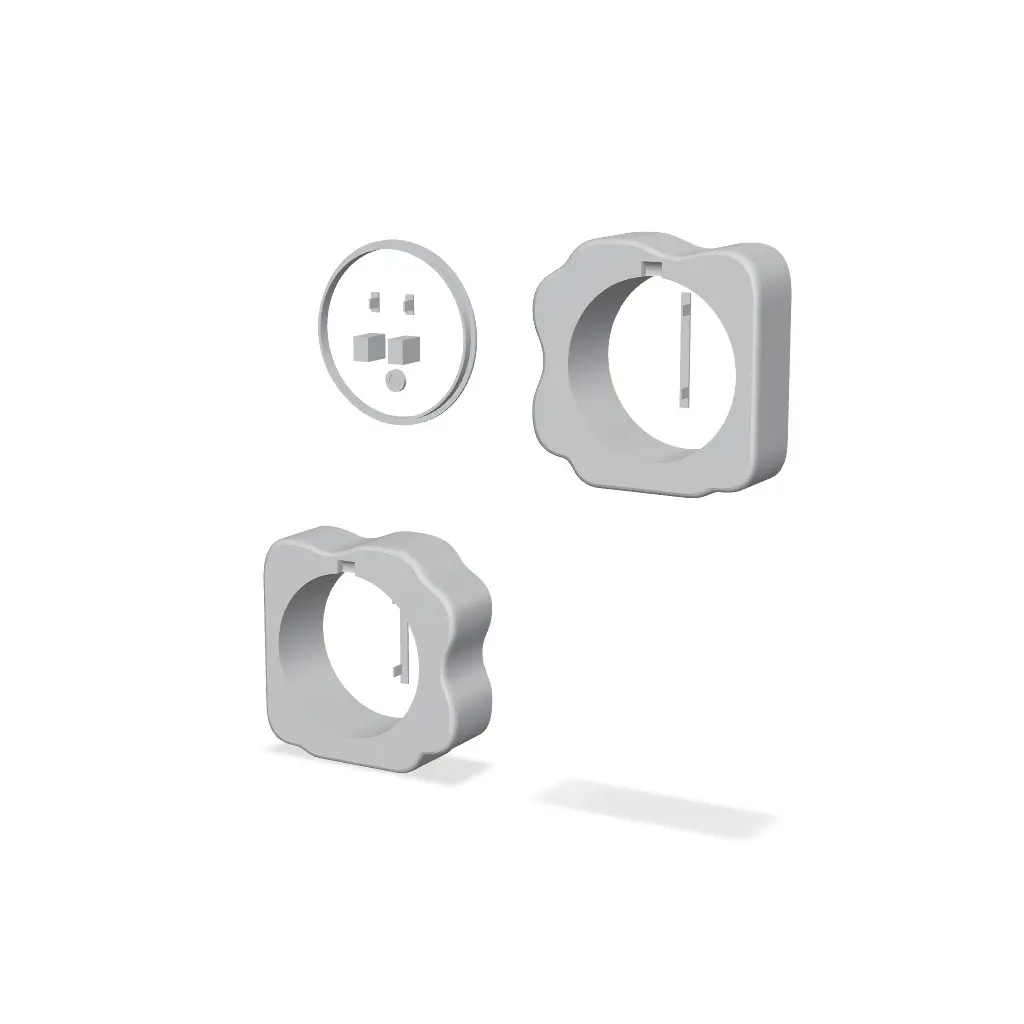

WHAT YOU RECEIVE One Bambu Studio 3MF project with three plates: • Plate 1: bowl-fit ring, magnet sockets/caps and silicone-foot test coupon. • Plate 2: left body and its magnet-retaining cap. • Plate 3: right body and its magnet-retaining cap. Four printed production parts in total; test pieces are additional.

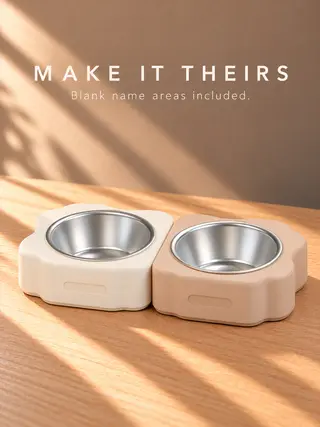

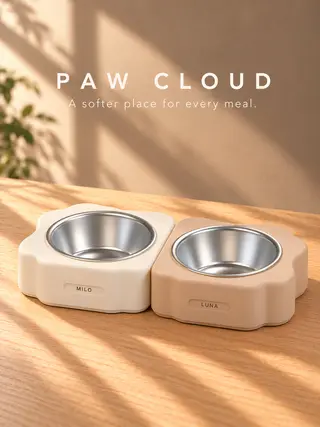

PERSONALIZATION Both 66 × 16 mm front name areas are BLANK in the supplied model. MILO and LUNA in the gallery illustrate possible customization; those names are not in the print file. Add your own text in suitable modeling/slicer software and re-slice. This download is not an automatic name generator or a separate removable nameplate.

SIZE Each printed body: 8.86 × 8.96 × 3.07 inches (225 × 227.5 × 78 mm), before the projecting silicone feet. The joined pair is approximately 17.72 inches (450 mm) wide. Designed around the specified 6.9-inch stainless inserts; check the fit coupon first.

PRINTING Reference setup: Bambu Lab X2D, 0.4 mm nozzle, PLA, 0.20 mm layer height. Three walls, 5 top/4 bottom layers and 10% gyroid for the bodies; 100% infill for caps and magnet test sockets. Tree supports are enabled for the bodies. Test pieces and caps do not use supports. Each blank body can be printed in one color; AMS is not required for the blank version. Map the filament slots to your printer and re-slice. Contrasting names change the print workflow and estimates.

Estimated slicer totals: approximately 27.6 hours / 903.23 g including the test plate, both bodies, caps and supports. These are estimates, not measured print results.

HARDWARE FOR ONE COMPLETE PAIR 2 × Yahenda stainless steel bowls — select the 6.9-inch variant: https://www.amazon.com/dp/B0BM4652DV The linked set contains six bowls; two are used here. Seller dimensions: lip outside diameter 175 mm (6.89 in), inside mouth 155 mm (6.10 in), base 120 mm (4.72 in), height 58 mm (2.28 in). Do not select 8.3-inch or 11-inch variants. The outside diameter immediately below the lip is unpublished. The model's 165.5 mm (6.52 in) aperture MUST be checked against your actual bowl using Plate 1 before printing the bodies.

8 × self-adhesive silicone feet — four per body: https://www.amazon.com/dp/B08BR6CGWL Selected variant: 160-pack, 0.50-inch diameter × 0.14-inch height (12.7 × 3.556 mm). Pockets: diameter 13.2 mm × 1.2 mm deep. Nominal protrusion: 2.36 mm.

4 × neodymium disc magnets, 10 mm diameter × 2 mm thick — two per body. Magnet brand/grade is unspecified. Holding force has not been physically measured.

PLA filament plus PLA-compatible adhesive to permanently bond the two printed magnet-retaining caps. Follow the adhesive manufacturer's preparation and full-cure instructions. Purchased hardware is not included in this digital download.

FIT, ASSEMBLY AND CARE Print Plate 1 first. The bowl fit, magnet attraction and adhesive retention still need testing with the actual hardware. Permanently glue each magnet-retaining cap after checking polarity; friction alone is not sufficient. Verify that no magnet or cap can come loose before allowing pet access. Stop use if a cap or body cracks or loosens. Magnets align the modules; do not carry both filled bowls by holding one module. Keep food and water in the stainless inserts. Wipe the printed housings clean; do not put PLA in a dishwasher or expose it to heat.
