Parametric universal spool holder — modelo 3D

Parametric universal spool holder

por Rob en Thingiverse

"Universal Spool Holder 18-56mm II, 606ZZ/608ZZ" by cntrlV seemed like a nice design, but my spool had 60mm hole. I made a simple parametric version in scad. I added a thin boundary above the bearing, so you need to drill it out or clean up after print, but it makes printing easier. I also made a...

Descargar los 6 archivos Ver en Thingiverse

6 archivos · 578 KB · se descargan uno tras otro

Licencia

Uso comercial permitido

CC BY-SA 4.0 — Atribución, compartir igual

Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Rob.

Archivos (6)
Categoría
Para tu impresora
Formatos
SCAD, STL
Descargas
85,416
Publicado

Sobre este modelo

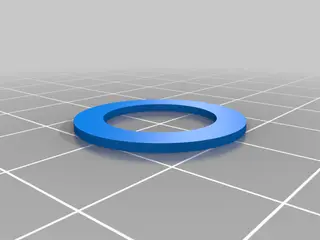

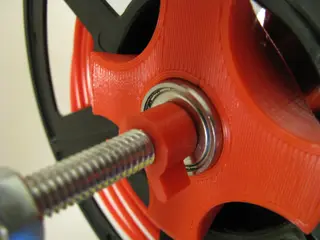

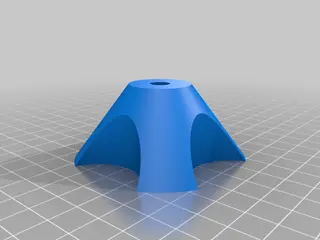

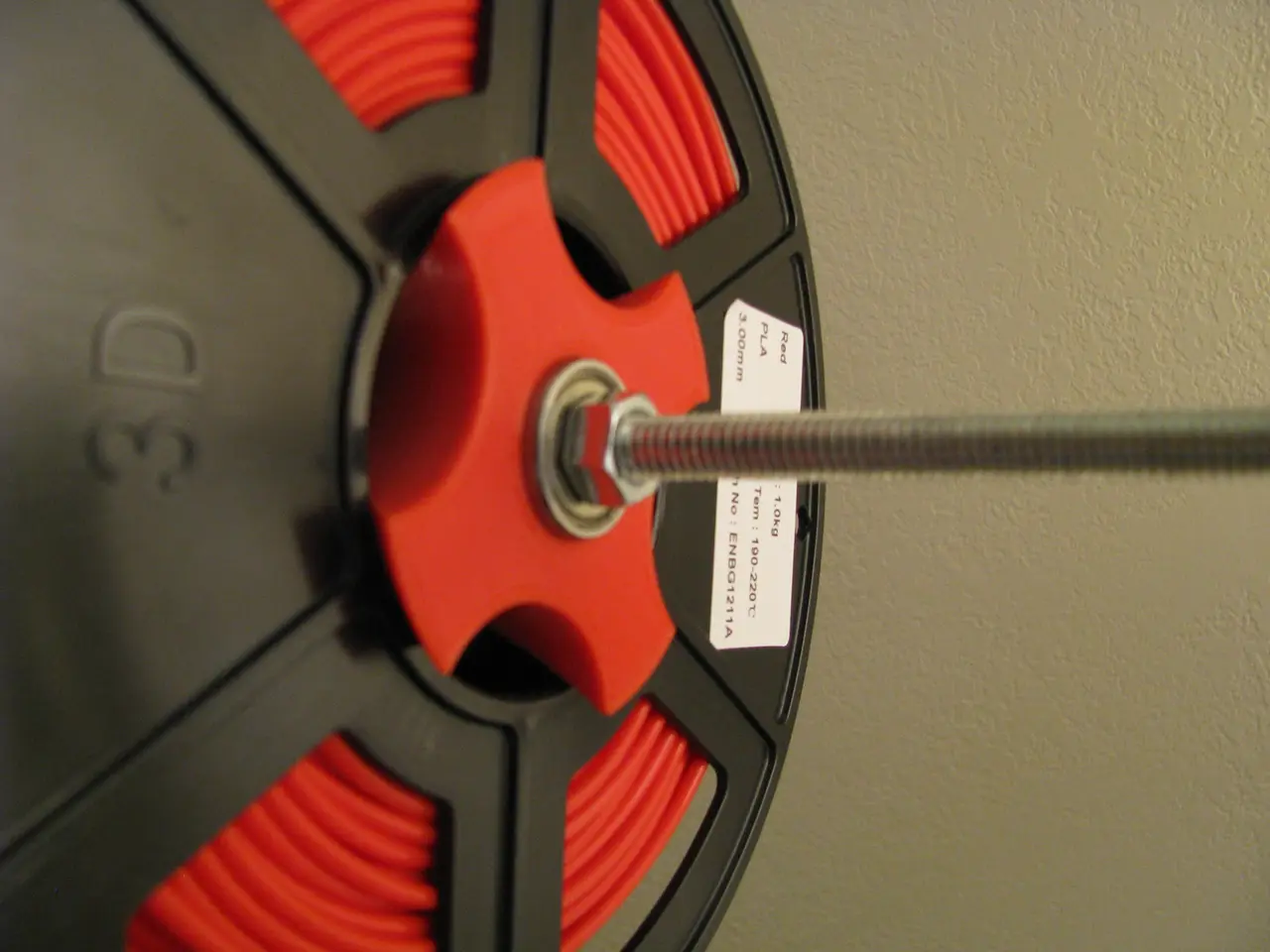

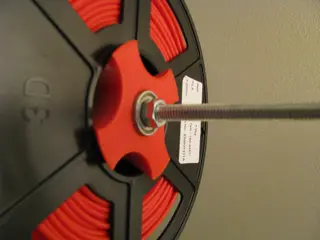

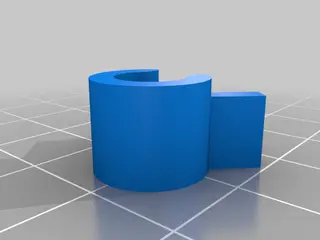

"Universal Spool Holder 18-56mm II, 606ZZ/608ZZ" by cntrlV seemed like a nice design, but my spool had 60mm hole. I made a simple parametric version in scad. I added a thin boundary above the bearing, so you need to drill it out or clean up after print, but it makes printing easier. I also made a spacer to put between the bearing and the holder so the bearing does not bind against the holder. The uploaded stl file is for a 25-70mm holder using 608 bearing. Update: The hole for the bearing on the uploaded stl is a tight fit (I have it set to 22mm, and 608 bearing has 22mm diameter). Depending on how well your printer is calibrated, you may want to enlarge the diameter a bit. Update 4/16: Uploaded clip that can be used instead of a nut for quicker changes. Top side of the clip (as printed) goes toward the bearing.

Descripción original del autor, publicada en Thingiverse.
