Parametric Sliding Case with Lock (V3)
por mgm86 en MakerWorld
A new generation of my sliding case, designed to be fully parametric and customizable to your needs.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a mgm86.
Archivos (28)
- Standard - small - Main Body.stl STL · 180 KB
- Standard - small - Lid.stl STL · 142 KB
- Standard - small - Sliding lid.stl STL · 38 KB
- Lock body.stl STL · 29 KB
- Lock slider.stl STL · 35 KB
- Standard - large - Main Body.stl STL · 143 KB
- Standard - large - Lid.stl STL · 103 KB
- Standard - large - Sliding lid.stl STL · 69 KB
- Lock body.stl STL · 29 KB
- Lock slider.stl STL · 35 KB
- Card - Main Body.stl STL · 130 KB
- Card - Lid.stl STL · 118 KB
- Card - Sliding lid.stl STL · 52 KB
- Lock body.stl STL · 29 KB
- Lock slider.stl STL · 35 KB
- Toothbrush electric - Main Body.stl STL · 295 KB
- Toothbrush electric - Lid.stl STL · 276 KB
- Toothbrush electric - Sliding lid.stl STL · 130 KB
- Lock body.stl STL · 29 KB
- Lock slider.stl STL · 35 KB
- Toothbrush manual - Main Body.stl STL · 289 KB
- Toothbrush manual - Lid.stl STL · 276 KB
- Toothbrush manual - Sliding lid.stl STL · 130 KB
- Lock body.stl STL · 29 KB
- Lock slider.stl STL · 35 KB
- Customize standard variant A.f3d F3D · 1,8 MB
- Customize card variant B.f3d F3D · 1,7 MB
- Customize toothbrush variant C.f3d F3D · 2,0 MB
- Categoría
- Hogar
- Formatos
- STL, F3D
- Descargas
- 202
- Publicado
Sobre este modelo

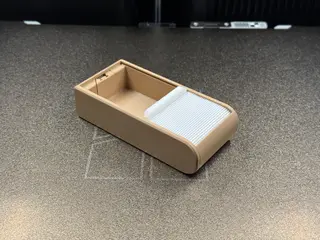

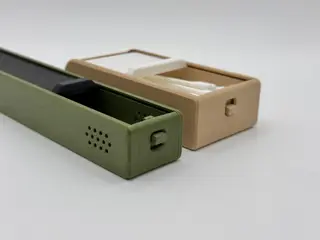

A new generation of my sliding case, designed to be fully parametric and customizable to your needs. Compared to V2, Gen 3 features a more robust construction and a cleaner interior without awkward corners and edges, making it easier to insert and remove items. The integrated locking mechanism has also been redesigned and relocated.

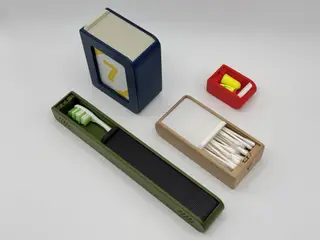

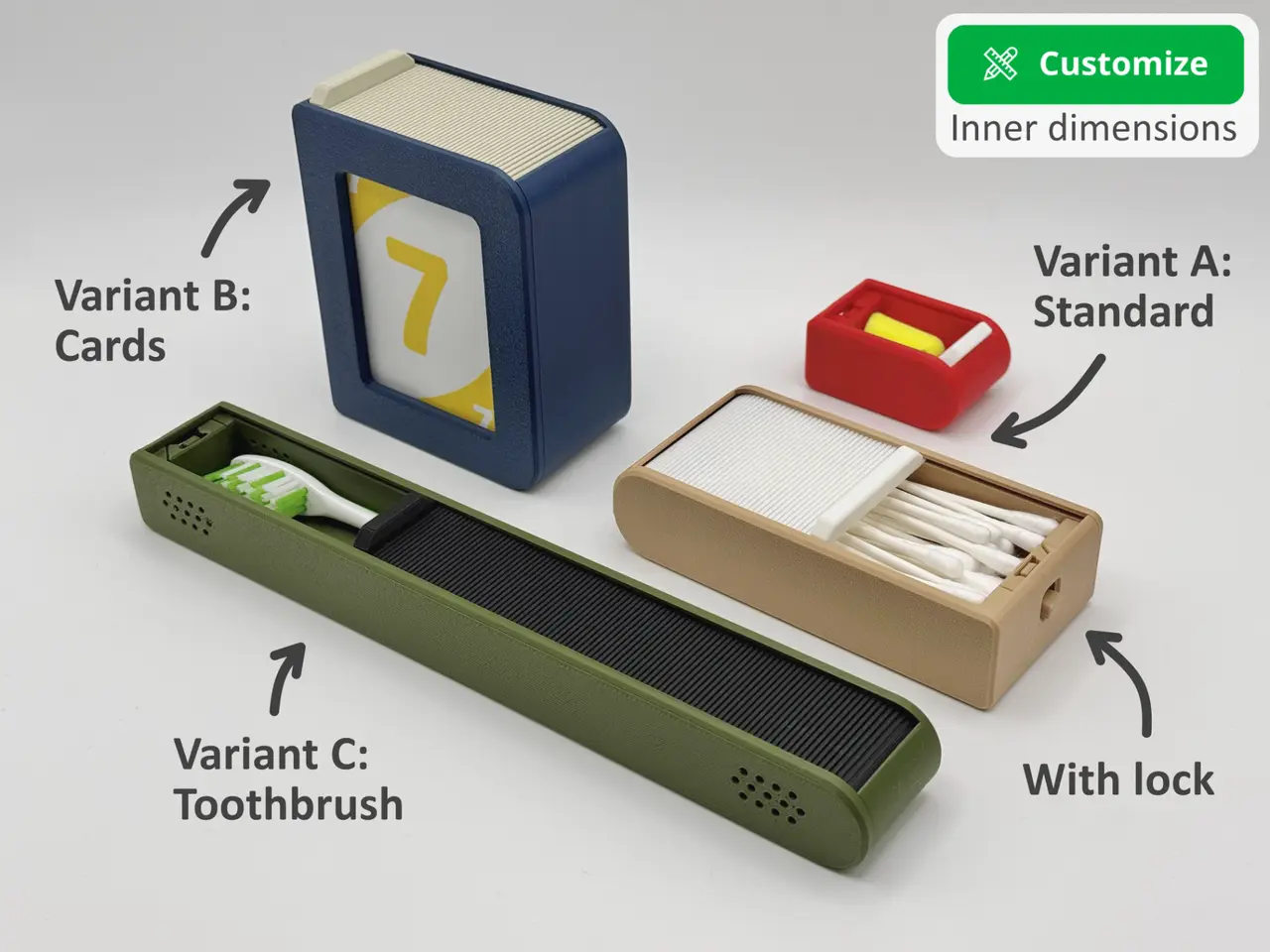

Available in three base variants: • Standard closed / universal • Cards with a front window • Toothbrush with ventilation holes
All variants can be dimensionally customized in the MakerWorld generator.
Print profile overview:
Standard variant (A):
- Large 90 x 20 x 45mm (L x H x W) For cotton swabs, pills etc
- Small 30 x 16 x 25mm (L x H x W) For earplugs etc. Also great as fidget toy :-)
Card variant (B):
- For a classic UN* deck with 108 cards Deck size: 87 x 56 and 36mm thick Inner case dimensions: 89 x 58 x 37mm
Toothbrush variant (C):
- Manual toothbrush 200 x 17 x 26mm (L x H x W) For classic toothbrushes
- Electric toothbrush 200 x 35 x 40mm (L x H x W) Work with my Sonicare. I have no other toothbrush to test it. Please measure your toothbrush before you print this profile!

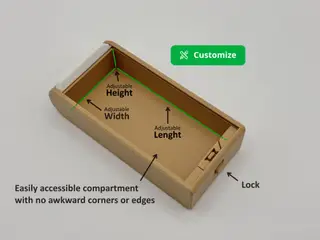

Generator: You can create your own sliding case by clicking on the “Customize” button. There you can edit the inner lenght, width and height.
Print instructions after using the generator: Rightclick on the importet parts and click on Split → to objects. After that you can move the sliding lid on a new print profile to print it with a seperate color.
General recommend print settings:
- Bottom shell layers: 4
- Initial layer speed: 30mm/s
Assembly instructions:
Descripción original del autor, publicada en MakerWorld.
