Parametric Rounded Corner Box With Magnetic Lid
por Paul Krolevsky en Thingiverse
A rectangular box with rounded corners and a lid secured with magnets. Three variants: - without magnets - with magnets type 1 - with magnets type 2 Full parametric: width, height, length, corner radius, thicknesses (walls, bottom, lid). Different thicknesses of magnets for the box and the lid...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Paul Krolevsky.
Archivos (1)
- Categoría
- Organización
- Formatos
- SCAD
- Descargas
- 103
- Publicado
Sobre este modelo

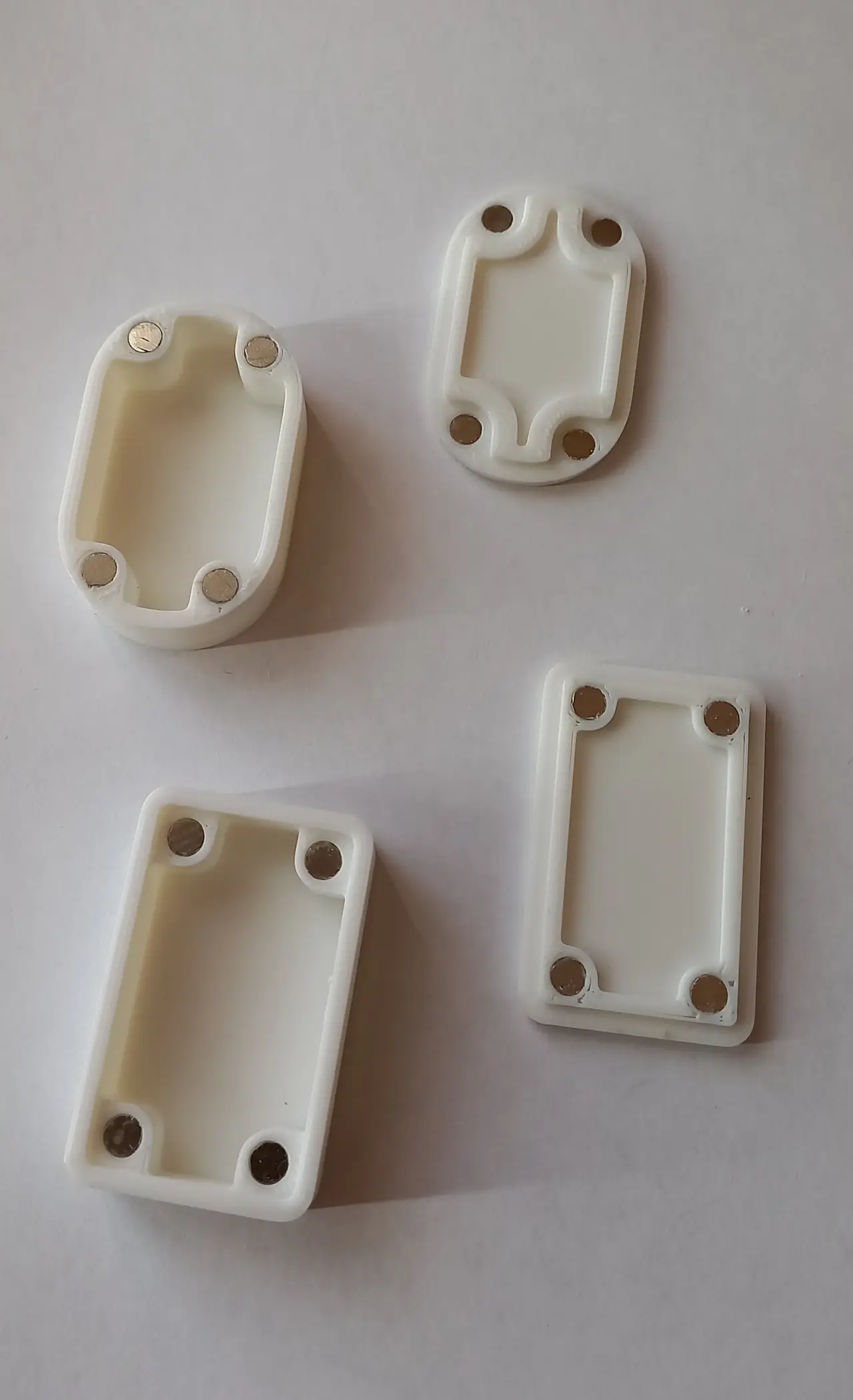

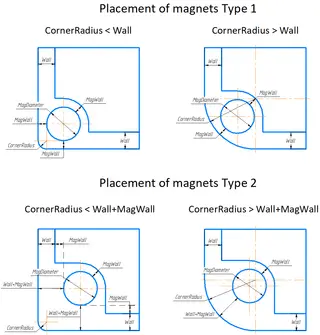

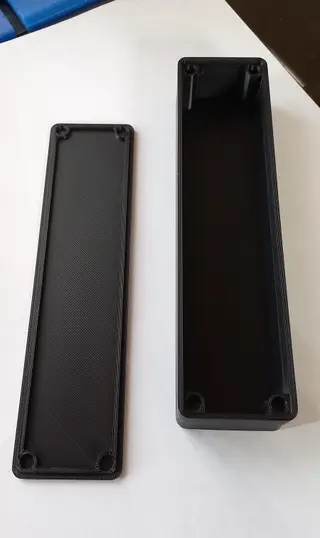

A rectangular box with rounded corners and a lid secured with magnets. Three variants: - without magnets - with magnets type 1 - with magnets type 2
Full parametric: width, height, length, corner radius, thicknesses (walls, bottom, lid). Different thicknesses of magnets for the box and the lid. Rounding of the bottom and top edges. It is recommended to set the diameter and height of the magnet slightly larger than the actual dimensions. For example, set the diameter to 5.2 instead of 5.0. The model was tested in the programs OpenSCAD 2026 nightly builds (high rendering speed) and OpenSCAD 2021 (low rendering speed).
Descripción original del autor, publicada en Thingiverse.
