Parametric LED Tea Light

Features: - Standard CR2032 Battery (Clip in) - 5mm LED - Easy Solder - Ideal light source for your projects - Optional Switch - Text for lead identification of LED Hats: Hats can be placed on top of the tea light with a push fit, here are some suggestions: - Candle TeaLiight Hat...

Descargar los 3 archivos Ver en Thingiverse

3 archivos · 1,6 MB · se descargan uno tras otro

Licencia

Solo uso personal

CC BY-NC 4.0 — Atribución, no comercial

Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a jetty.

Archivos (3)

Categoría: Hogar
Formatos: SCAD, STL
Descargas: 19,974
Publicado: 14 de diciembre de 2015

Sobre este modelo

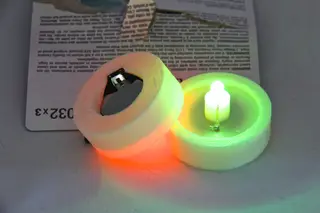

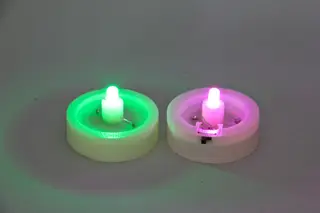

Features: - Standard CR2032 Battery (Clip in) - 5mm LED - Easy Solder - Ideal light source for your projects - Optional Switch - Text for lead identification of LED

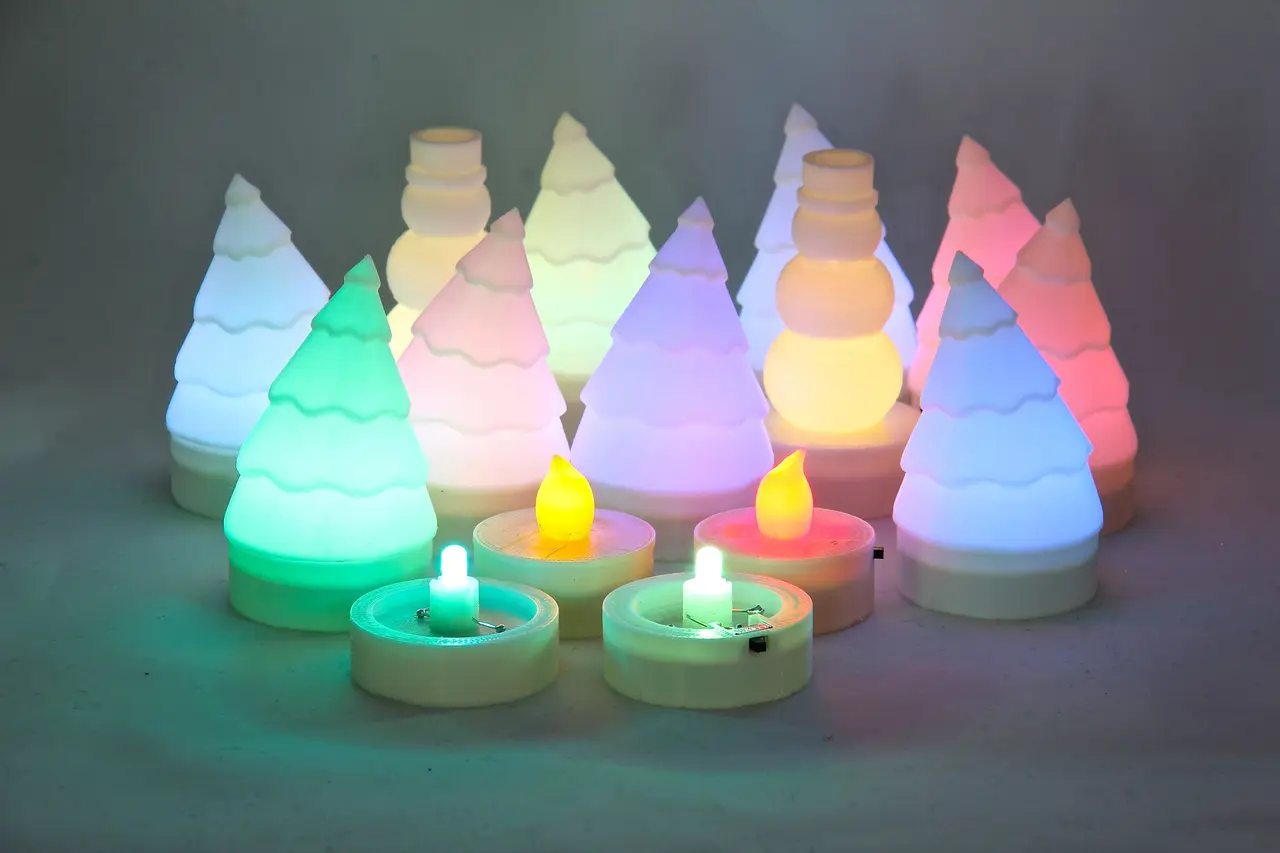

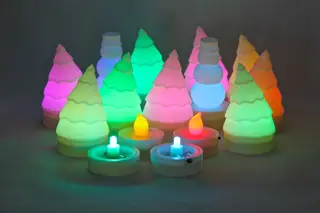

Hats: Hats can be placed on top of the tea light with a push fit, here are some suggestions: - Candle TeaLiight Hat: http://www.thingiverse.com/thing:1188098 - Christmas Tree Hat: http://www.thingiverse.com/thing:193814 (Diameter: 42; Height: 14.65; LED Holder Outer Diameter: 9.8) - Snowman Hat: http://www.thingiverse.com/thing:1188099

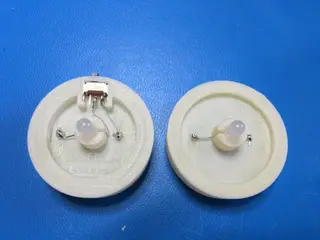

Parts: Battery Holder: - https://solarbotics.com/product/bhold2032/ or - http://www.digikey.com/product-detail/en/BS-7/BS-7-ND/389447

LED: Any 5mm LED that has a 3 Volt forward voltage or less will do, here are some animated suggestions: - https://www.sparkfun.com/products/11450 (slow color cycle) - https://www.adafruit.com/products/679 (slow color cycle) - http://shop.evilmadscientist.com/productsmenu/partsmenu/353 (candle flicker)

Switch (Optional): The battery holder can be used as a switch by using the built in clip, but if a switch is desired: - http://www.digikey.com/product-search/en?keywords=CKN10397

DISCLAIMER: Use at your own risk.
