Parametric Dupont Cable Comb
por Freestyle_Tech en Printables
Customizable cable comb that keeps Dupont jumper wires parallel and tidy.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Freestyle_Tech.
Archivos (6)
- Categoría
- Tecnología
- Formatos
- STL, F3D, STEP
- Descargas
- 139
- Publicado
Sobre este modelo

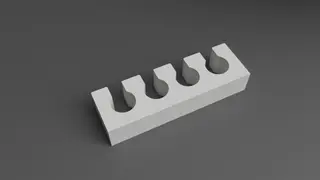

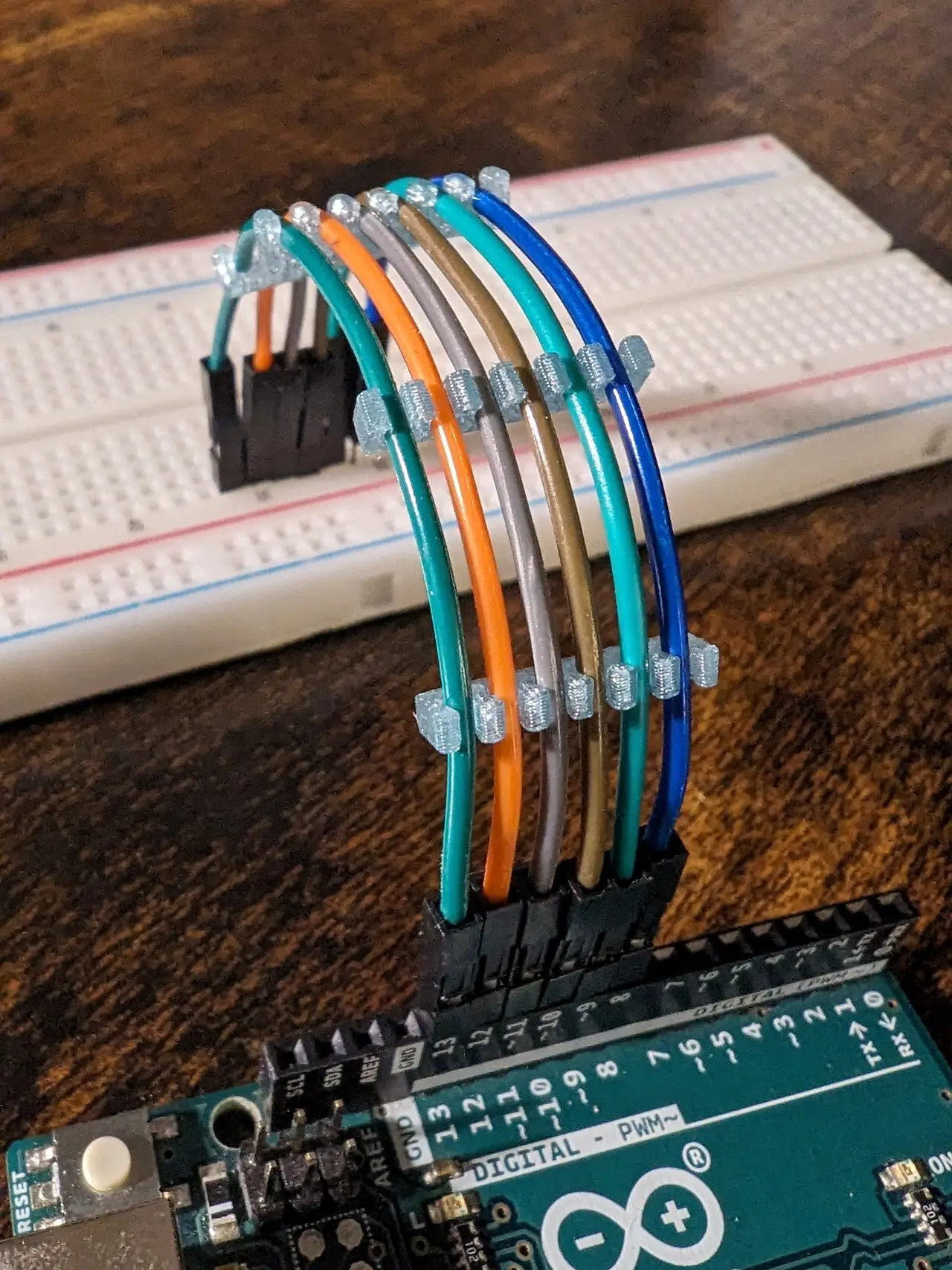

Parametric Dupont Cable Comb This comb holds Dupont wires in neat, parallel lines so your cable runs look clean and are easier to trace and debug. Designed in Autodesk Fusion and fully parametric. In my experience 1,8 mm fits pretty good for the 1,4 mm wires (0,4 mm nozzle on FF Creator 5). This may very depending on your printer, nozzle size and slicer. Wire diameter, slot count and pitch can be changed in the parameters in Fusion. Files - STLs for the default 1.8 mm diameter version (should fit 1,4 mm wires) and 2,54 mm pitch - Fusion 360 (.f3d) and STEP for editing
