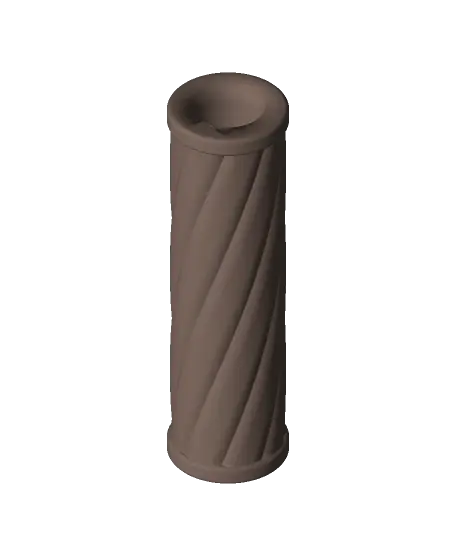

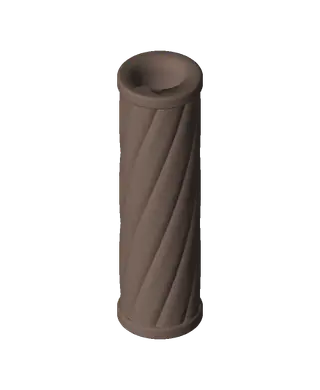

Parametric Bike Handle
This is a parametric handle for a bike. It can be easily be customizable in Autodesk Fusion 360, so it will fit every handlebar.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a kosteklvp.
Archivos (2)
- Bike Handle.3mf 3MF · 535 KB
- Bike Handle.f3d F3D
- Categoría
- Varios
- Formatos
- 3MF, F3D
- Descargas
- 65
- Publicado
Sobre este modelo
This is a parametric handle for a bike. It can be easily be customizable in Autodesk Fusion 360, so it will fit every handlebar.
---
Modification instructions
1. Open .f3d file in Fusion 360. 1. Open Change Parameters window. 1. Edit Diameter and Length values under Favorites parameters. 1. Export created Bike Handle body as a mesh object.
---
Recommended print settings - layer height: 0.2 mm - infill: 10% gyroid - perimeters: 2 - solid layers: 6 - avoid crossing perimeters: yes - supports: no
Avoid crossing perimeters (combing) should be enabled to prevent unwanted stringing inside. Print it as it is - on the closed side.
For this kind of application, printing with TPU or other soft filaments is recommended.
Descripción original del autor, publicada en Thangs.
