Paracord & Guy Line Winder + 4 Tent Rope Tensioners – Camping Cord Organizer — modelo 3D

Paracord & Guy Line Winder + 4 Tent Rope Tensioners – Camping Cord Organizer

por shellylee3d en Printables

Flat paracord/guy-line winder with lock slits + 4 three-hole tent tensioners. Flush orange inlay, no supports.

Descargar gratis Ver en Printables

Todos los archivos (7) en un ZIP

Licencia

Solo uso personal

Standard Digital File License

Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a shellylee3d.

Archivos (7)
Categoría
Jardín
Formatos
STL, 3MF
Descargas
0
Publicado

Sobre este modelo

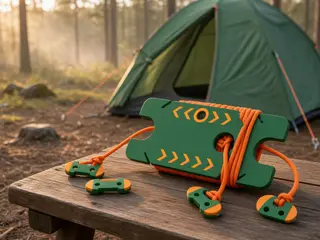

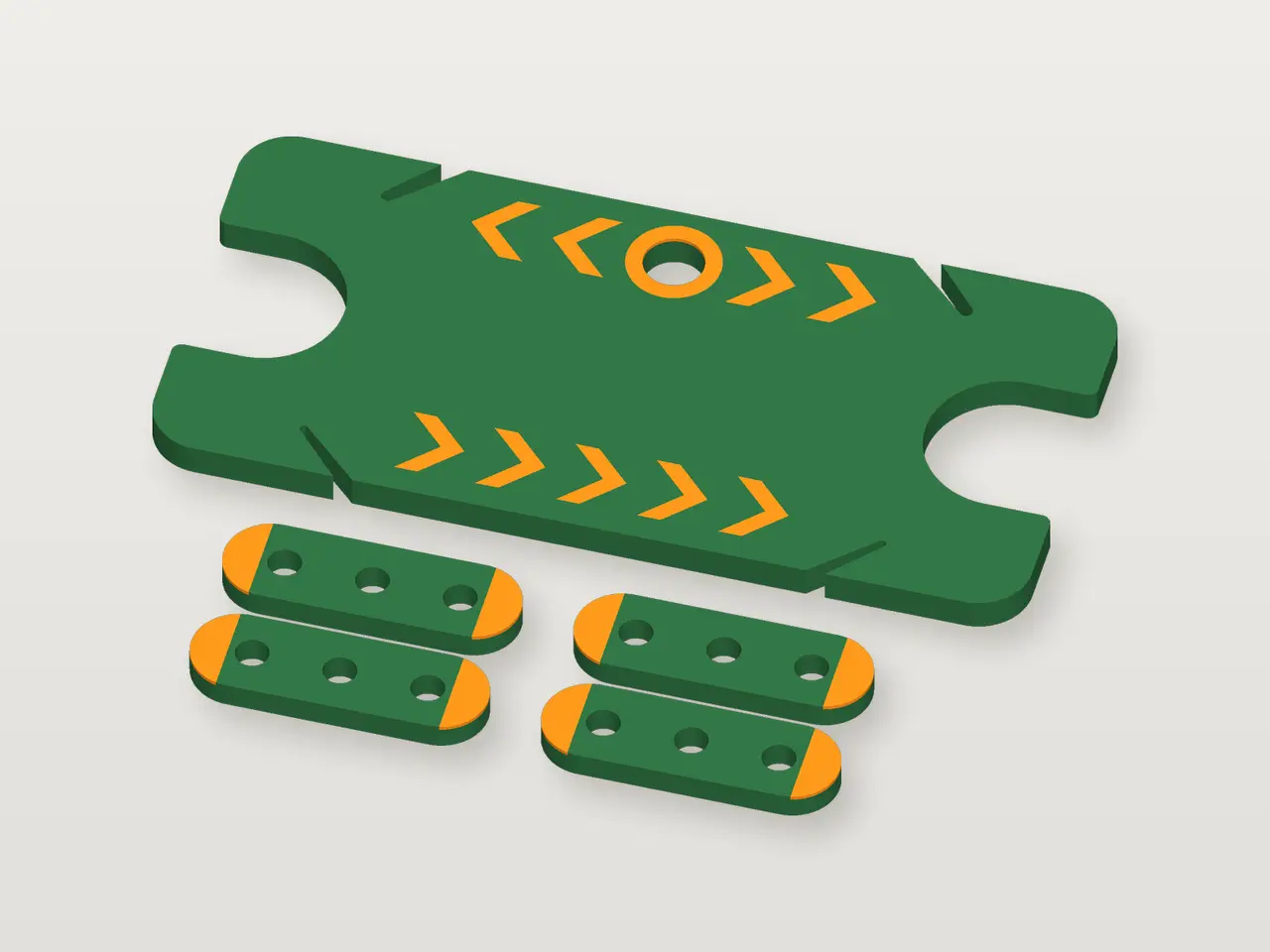

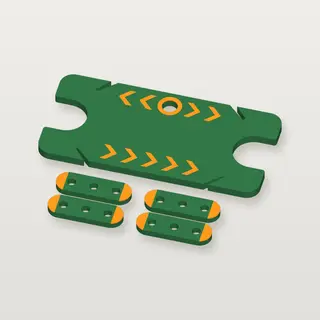

Keep tent guy lines and paracord tangle-free and ready to deploy. This set has one flat cord winder and four classic 3-hole guy-line tensioners. Everything packs flat in your camping kit.

Winder features: - U-notches at both ends: wind cord lengthwise and it stays put - 4 angled cord-lock slits on the long edges that pinch the loose end so the bundle never unravels: 2 sized for 550 paracord, 2 for thin guy line - Clip hole for a carabiner, backpack strap or keyring - Safety-orange chevrons and an orange ring around the clip hole so it is easy to spot in grass, sand or a dark gear bag. These are flush two-color inlays, with no paint or sticker to wear off and no text or logo.

The 3-hole tensioners are the proven runner style: tie the line to the first hole, loop it around the stake, then thread it back through the other two. Slide to tighten; friction holds the tension. Their orange end caps make them easy to find when you strike camp.

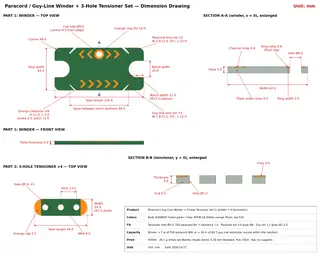

Key dimensions (measured from the model, mm): - Winder: 130.0 x 62.0 x 5.0 (about 5.1 x 2.4 x 0.2 in), corner radius 8 - End notches: 24.0 wide x 22.0 deep (R12 bottom); 86.0 between notch bottoms - Capacity (estimate): about 7 m / 22 ft of 550 paracord (Ø4) or about 16 m / 53 ft of Ø2.5 guy line - Paracord lock slits: 2.8 to 2.0 wide, 12 long, 45°; guy-line lock slits: 1.8 to 1.2 wide - Clip hole: Ø9.0 with an orange ring (OD 14.0) - Tensioner (x4): 44.0 x 14.0 x 4.0, three Ø5.0 holes at 13.0 pitch, for cord about 2.5–4 mm - Colors: forest green body (#2E6B3F) with safety-orange (#FF8C1A) flush inlay, 0.6 deep - Prints flat with no supports. On a Bambu Lab H2D the whole set takes 0h50m and 28.1 g of PLA (sliced result).

For long outdoor UV exposure, choose PETG or ASA. Custom slit and hole sizes are available for other cord diameters.

Descripción original del autor, publicada en Printables.
