Pack Battery Holder for 18650 — modelo 3D

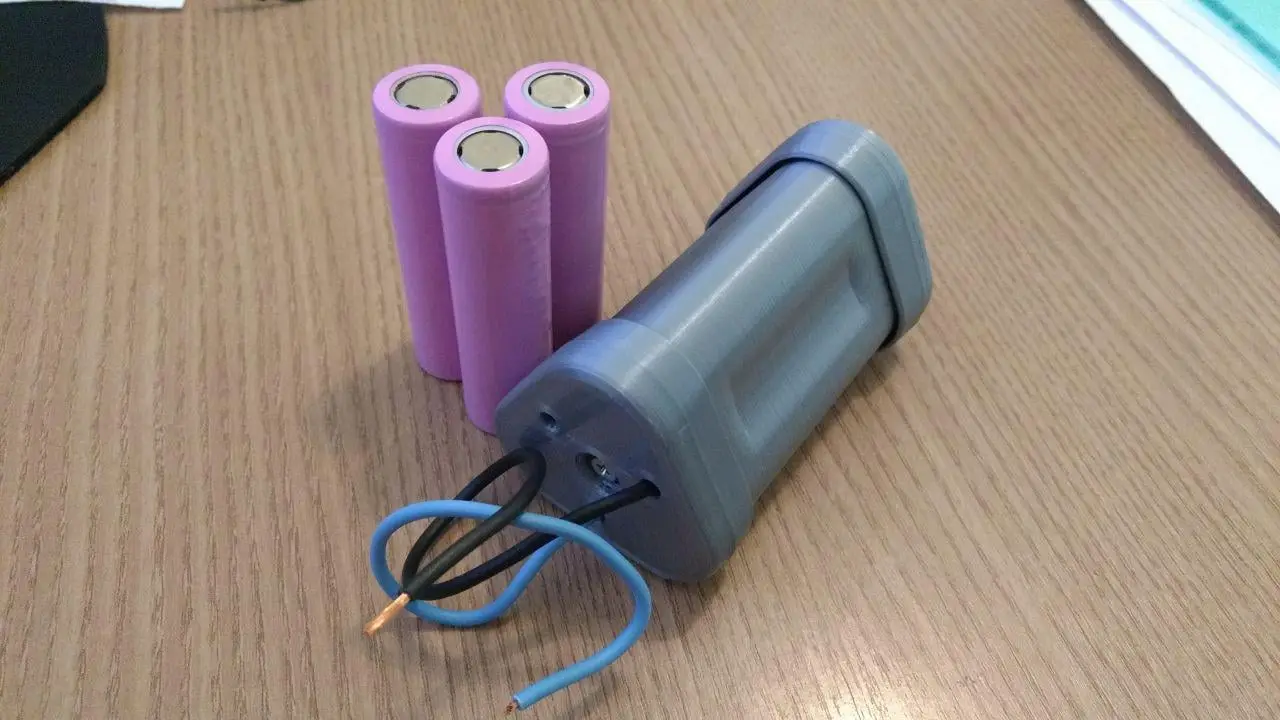

Pack Battery Holder for 18650

por Rogerio Rodrigues en Thingiverse

I've designed this battery holder to help bench tests where you need 3 18650 batteries without having the contact springs on the poles of each battery. In the cavity of each cover can be made the serial or parallel closure according to the need, (see detail in the photos) where the own wire plays...

Descargar los 3 archivos Ver en Thingiverse

3 archivos · 3,0 MB · se descargan uno tras otro

Licencia

Solo uso personal

CC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas

Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.

Al descargar aceptas respetar la licencia y dar crédito a Rogerio Rodrigues.

Archivos (3)
Categoría
Varios
Formatos
STL
Descargas
6,145
Publicado

Sobre este modelo

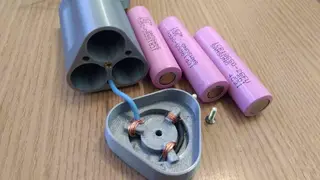

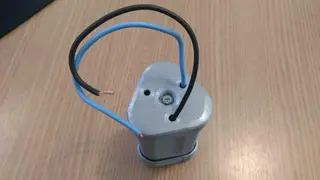

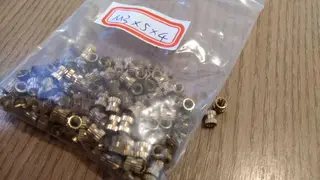

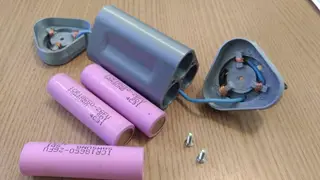

I've designed this battery holder to help bench tests where you need 3 18650 batteries without having the contact springs on the poles of each battery. In the cavity of each cover can be made the serial or parallel closure according to the need, (see detail in the photos) where the own wire plays the role of the contact springs, making this battery holder cheaper, practical and functional. For assembly it will require 2 M3x10mm screws, some pieces of wire and 2 metal inserts with M3 thread. (see link below). https://pt.aliexpress.com/item/100pcs-Brass-Tone-Round-Metal-Knurl-Thread-Insert-Nuts-4-2mm-M3-3mm-For-Metalworking/32847125264.html?spm=a2g03.10010108.1000016.1.6ade35b7X5duC3&isOrigTitle=true The metal inserts are inserted hot into the plastic in the central hole on each side of the body part. Of course you can use a large M3x85mm bolt with nut and washer through both covers instead of metal inserts. If you want donete... please, click on the link https://www.paypal.com/donate/?hosted_button_id=83JLD43FXWECW
