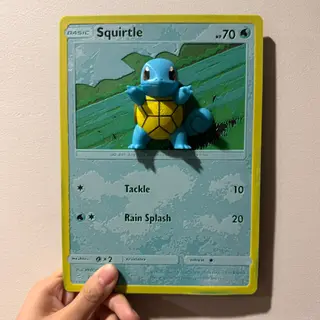

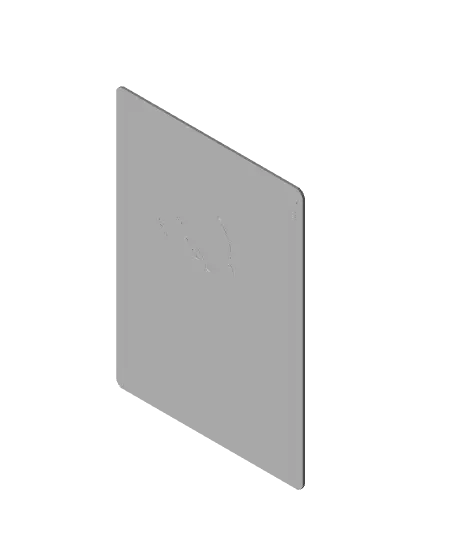

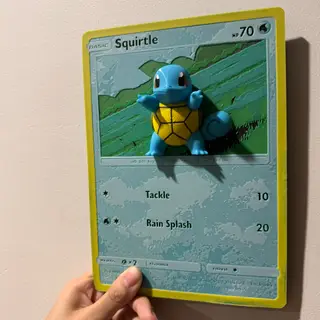

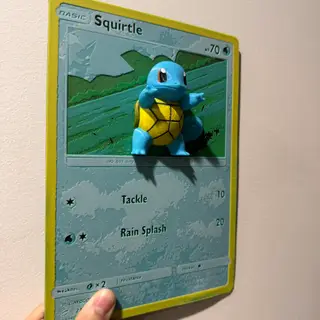

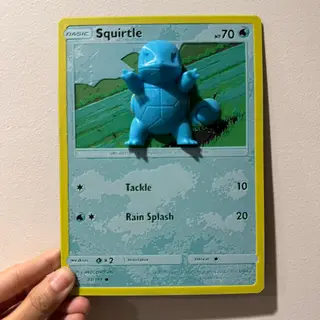

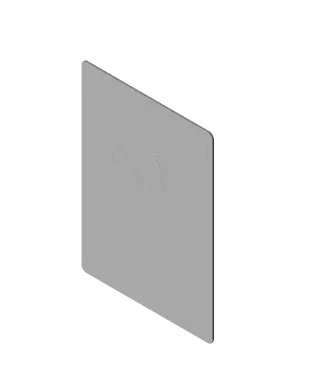

Oversized Squirtle Pokemon Card - Hueforge Hybrid

An oversized Squirtle Pokemon card, and completely 3D printed, and print in place! This is another Hueforge hybrid print that uses filament painting methods and traditional 3D printing to create a combined pop-art effect piece.

This uses 5 different filament colours, with blue repeated for Squirtle at the end of the print. If you do not have an AMS, no fear! Just download the 3MF file and instead of a filament change, insert a pause at the correct layer heights and manually load and unload the filament spool yourself before resuming the print.

If you only have one AMS, take out a spool that has finished printing and replace it with colour #5 (when black has finished printing, take it out and put yellow in that slot instead). Remember to set the AMS slot accordingly in your slicer beforehand.

It is large, at 170mm x 240mm in size. If you have to resize it to fit your printer bed, please only scale the X and Y dimensions, but do not alter the Z dimension, otherwise the layer swaps will be inaccurate.

If you are using the Makerworld One-Click printing, all settings will have been applied to this print, and you can just hit Print. If you do not want to use that, please download the 3MF file, or the STL (for non Bambu users) and apply the recommended settings below.

Print Instructions: For the HueForge part of the print (0mm - 2.04mm): - Print at 100% infill with a layer height of 0.08mm with a base layer of 0.2mm

For the Squirtle part of the model (2.12mm - 35mm): - Print at 5% infill (I used rectilinear), 3 walls, 3 tops, and 3 bottoms. - Using a layer height modifier, modify the layer height for this range to 0.16mm so that the print goes faster. - No supports are required

Filaments Used: - PLA Kingroon Black Transmission Distance: 0.4 - PLA BambuLab Basic BambuLab Green Transmission Distance: 8 - PLA META Sunlu Teal Transmission Distance: 5.4 - PLA Kingroon White Transmission Distance: 8 - PLA CC3D Lemon Yellow Transmission Distance: 8

Swap Instructions: - Start with Black - At 0.84mm swap to BambuLab Green - At 1.32mm swap to Teal - At 1.56mm swap to White - At 1.80mm swap to Yellow - At 2.12mm swap to Teal (for Squirtle)

Post Processing: I painted Squirtle by hand, using paint pens.

This model used the Squirtle from here (https://www.thingiverse.com/thing:2198510) by rhinodk (https://www.thingiverse.com/rhinodk). If you visit the page, there are plenty of different other Squirtle models for you to download!
