Over-the-Top Spool Rack

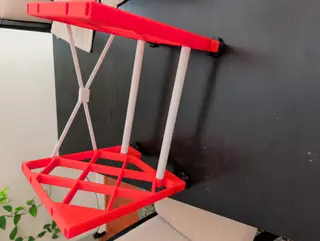

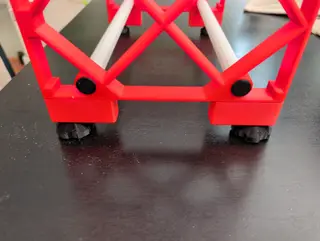

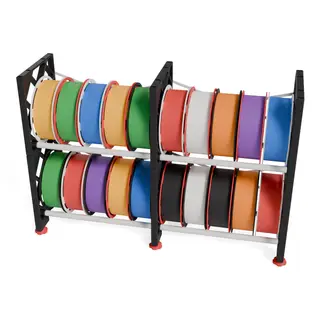

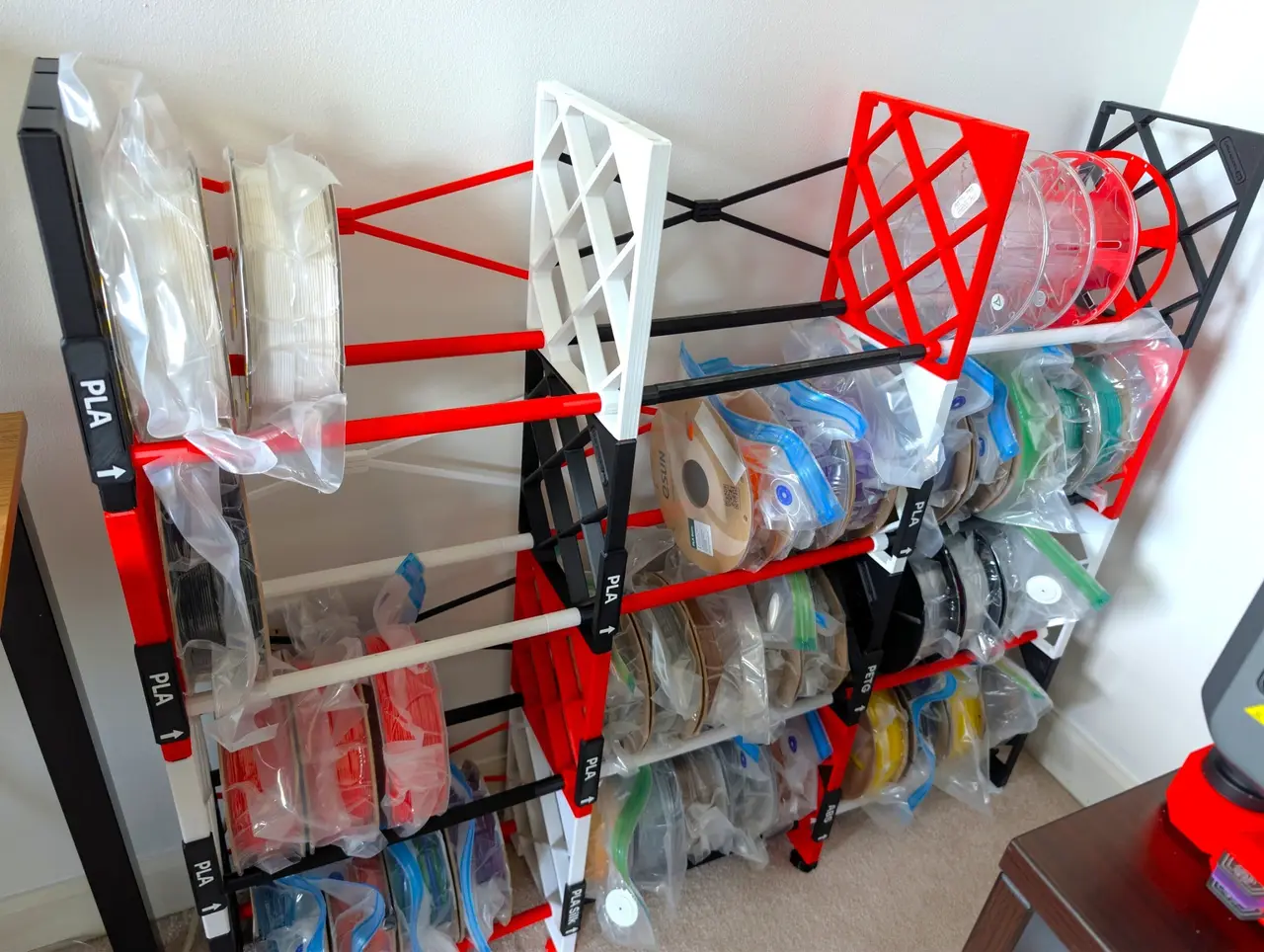

Stack 'em high, stack 'em wide, this over-the-top system lets you build what you need. Stackable, rackable, no supports or extra hardware, leveling feet, cross-ties for support even caps for the unused rod holes. It's safe to say we went over the top on this one! The rods tightens like a turnbuckle. Threaded pegs screw into each side plate, and every rod has a left-hand thread at one end and a right-hand thread at the other. Wind a rod on and it draws both plates in together, until both ends seat on the same turn. A cross-tie across the back keeps the bay square, caps close off the outside ends, and stacking clips lock one rack on top of another. Every part is printed — there is no hardware to buy. It stands on leveling feet that cup the bottom of each plate; turn a knob to take up an uneven floor. Your files come plated for your printer, with the rods sized to your bed — on a smaller bed they print shorter, and short threaded extensions make up the width. This is one fixed size, free to print. If you want it bigger/smaller, sized to your own printer and your own colors, there is a configurable version that builds to order: https://bigmacks3d.com/spool-rack
