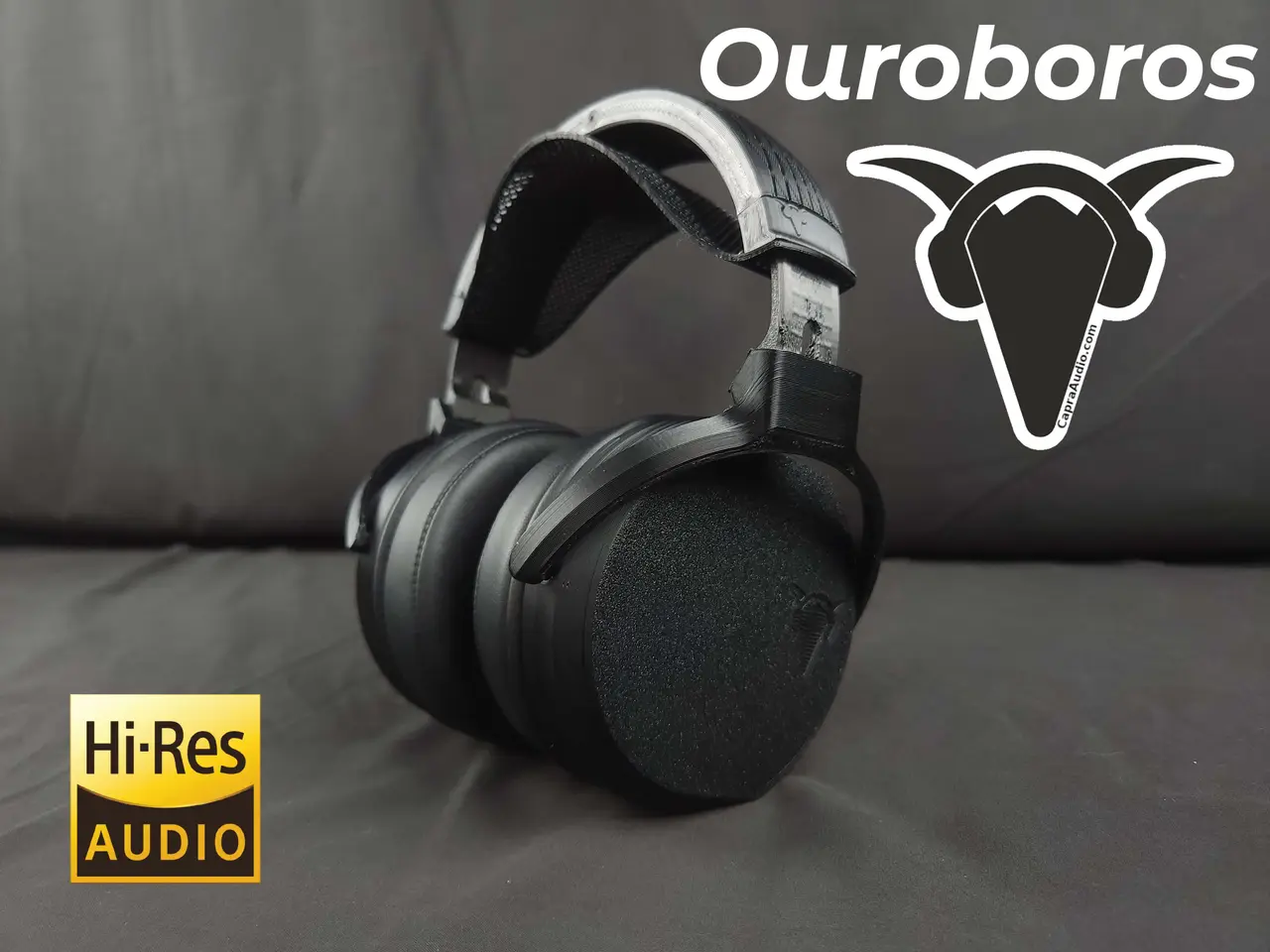

Ouroboros (DIY HiFi Headphones)
por Capra-Audio en Printables
High-End, Audiophile-grade, 3D printable closed back headphones.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Capra-Audio.
Archivos (22)
- Ouroboros Yoke L.3mf 3MF · 173 KB
- Ouroboros Rear Housing R.3mf 3MF · 347 KB
- Ouroboros Rear Housing L.3mf 3MF · 348 KB
- Ouroboros Fascia.3mf 3MF · 58 KB
- Ouroboros Fascia.step STEP · 37 KB
- Ouroboros Rear Housing L (No Fascia).3mf 3MF · 342 KB
- Ouroboros Rear Housing R (No Fascia).3mf 3MF · 345 KB
- Rear Housing Left 3.5mm{A}.stl STL · 1,2 MB
- Rear Housing Right 3.5mm{A}.stl STL · 1,2 MB
- Rear Housing Left MXLR{A}.stl STL · 1,2 MB
- Rear Housing Right MXLR{A}.stl STL · 2,1 MB
- Rear Housing Right MXLR{A}.stl STL · 1,3 MB
- Rear Housing Left MXLR{A}.stl STL · 1,3 MB
- Yoke Left{G}.stl STL · 752 KB
- Yoke Right{G}.stl STL · 368 KB
- Driver Mount{C}.stl STL · 189 KB
- Grille{D}.stl STL · 425 KB
- Baffle Material Retention Plate{E}.stl STL · 69 KB
- TPU Gasket{B}.stl STL · 121 KB
- Pad Mount{F}.stl STL · 512 KB
- Yoke Right{G}.stl STL · 520 KB
- Yoke Left{G}.stl STL · 806 KB
- Categoría
- Tecnología
- Formatos
- 3MF, STEP, STL
- Descargas
- 749
- Publicado
Sobre este modelo

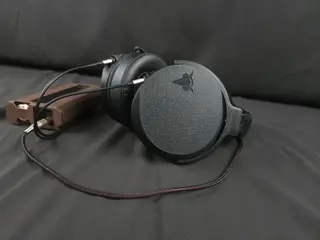

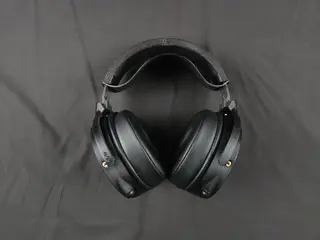

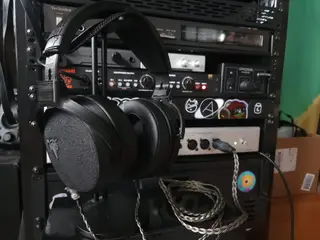

Ouroboros is a closed back headphone designed and intended for people who value high quality audio. With a dark-tilted tuning and a decent bass shelf these cans sound both fun and high fidelity.
The ring-radiator driver (similar to the one on the legendary HD800 and HD800s) is the reason behind the name Ouroboros as when we first laid eyes on it we were reminded of the serpent eating its tail. Although the driver is sold as a "coaxial dual driver" speaker, we do not use the small beryllium tweeter as a speaker, instead we de-solder the connections to it and allow it to operate as a passive radiator between the front and rear volumes . The Bill of Materials can be found here. The current best place to find the drivers is to buy a used "Turtle Beach Recon 500" and use the drivers from that.
The Assembly Instructions can be found here or watched here.
The Headband files can be found here. If you have any questions, comments, concerns, or just want to talk about headphones and headphone design join our discord, link in my bio.

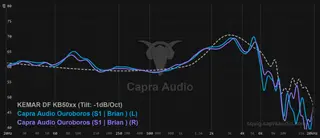

Additional Affiliate Links if you want to support us further: Polymaker 95a TPU Polymaker PLA Pro Polymaker PETG Compare against other headphones on Squig.Link
