ORIGAMI TEA LIGHT | Tea Light Holder

ORIGAMI TEA LIGHT | Tea Light Holder

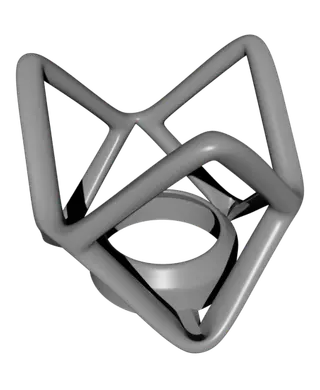

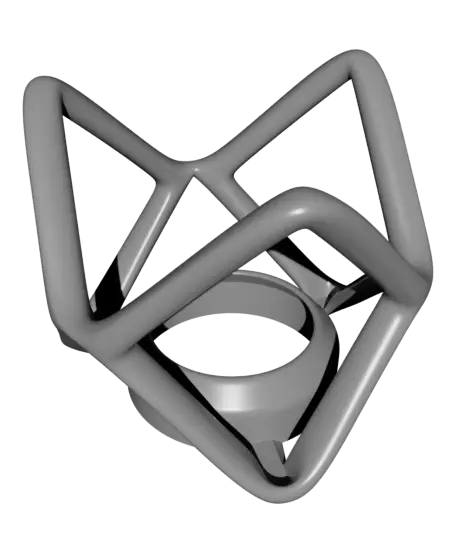

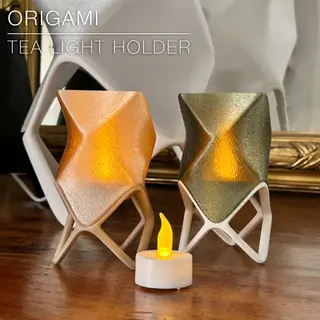

Here is the tea light holder version of my ORIGAMI table lamp (https://than.gs/m/1255983).

I had tea lights lying around the house and I though, well, why not shrink down my ORIGAMI lamp to make it a tea light holder!

The shade was printed in translucent PETG with some fuzzy skin. (See settings below) And the base was printed in PLA.

It can fit tea lights with a diameter of up to 41mm.

Happy printing!

DIMENSIONS (Shade) | W70 mm L75 mm x H 94 mm

DIMENSIONS (base | W71 mm L76 mm x H 63 mm

3D PRINT SETTINGS The shade and the base print upside-down. (STL files already oriented properly).

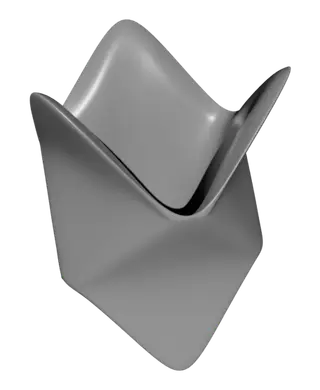

SHADE: The shade prints in standard mode, not vase mode. No supports required. No infill required.

Wall line count: 2 top layers: 2 Bottom layers: 3 Resolution / Layer Height: 0.2mm/layer Infill: None (0%) Build adhesion type: Brim 4 to 6mm Supports: None

In Bambu Studio: - make sure to untick "ensure vertical shell thickness" in Speed settings or you'll end up with extra thickness here and there. - set "Wall Generator" to "Arachne" mode in Quality settings, or you'll end up doubling the print time.

The shade on the pictures was printed with some “fuzzy skin”. - fuzzy skin thickness: 0.3mm - fuzzy skin point distance: 0.8mm

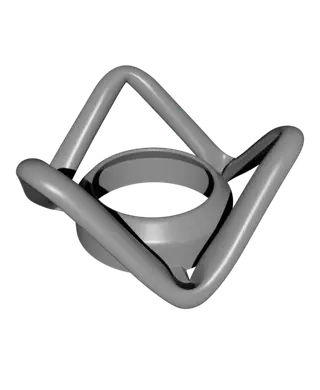

BASE/STAND: The base must be printed upside-down, so with the round face for the E14 or E27 socket flat on the printing bed. No brim or supports needed. You can push the infill to 30% or 40% to get a super clean print.
