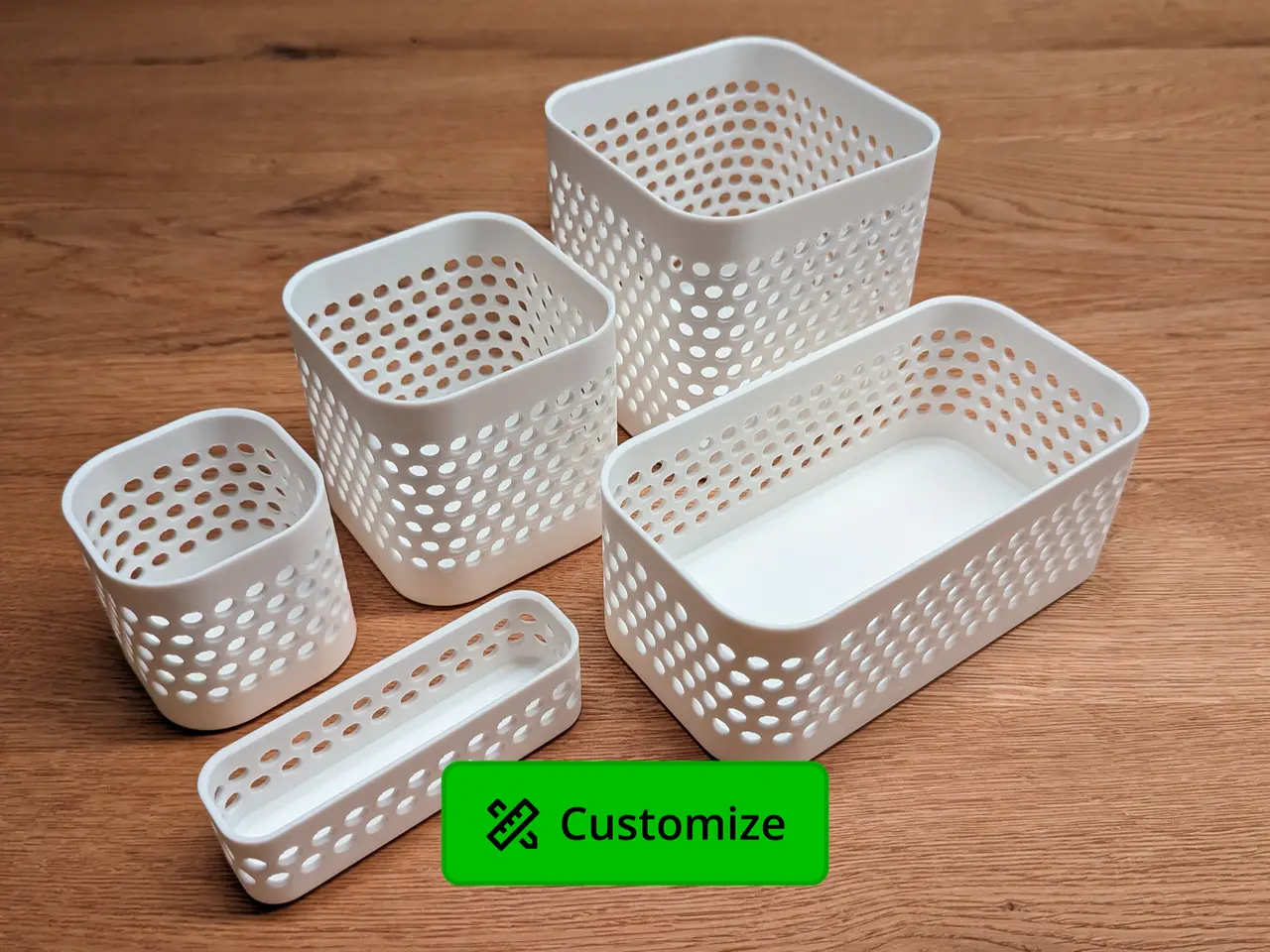

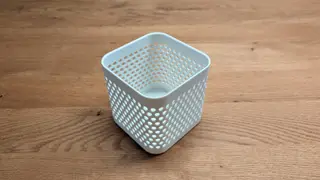

Organizer Box - Parametric Storage Bin

Parametric Organizer Box. Customizable storage container for desk, office, drawer and shelf. Use the available print profiles if you want to have a specific size, if you are more into tinkering fetch the Fusion 360 file and enjoy all the customizable parameters. The model is designed so that all…

Descargar en MakerWorld

MakerWorld entrega los archivos a usuarios con cuenta gratuita

Licencia

Solo uso personal

Standard Digital File License

Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a Benjamin Kott.

Archivos (11)

Fusion 360 - 01012024.zip ZIP · 1,1 MB
Box 10x10x10cm - Corner 2cm.step STEP · 2,3 MB
Box 8x8x8cm - Corner 2cm.step STEP · 1,5 MB
Box 6x6x6cm - Corner 2cm.step STEP · 1007 KB
Box 15x8x6cm - Corner 2cm.step STEP · 1,2 MB
Box 18x14x10 - Corner 2cm.step STEP · 2,8 MB
Box 20x10x6 - Corner 2cm.step STEP · 1,4 MB
Box 10x3x3cm - Corner 1cm.step STEP · 309 KB
Box 10x10x13 - Round.step STEP · 6,3 MB
Box 8x8x10 - Round.step STEP · 3,6 MB
Organizer Box.scad SCAD · 15 KB

Categoría: Hogar
Formatos: ZIP, STEP, SCAD
Descargas: 70,066
Publicado: 22 de diciembre de 2023

Sobre este modelo

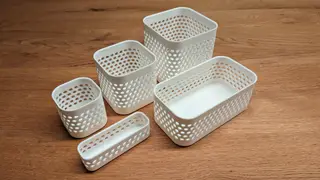

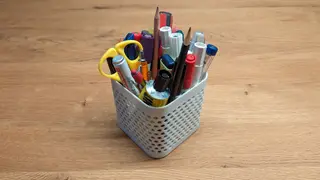

Parametric Organizer Box Customizable storage container for desk, office, drawer and shelf. Use the available print profiles if you want to have a specific size, if you are more into tinkering fetch the Fusion 360 file and enjoy all the customizable parameters. The model is designed so that all punch holes are auto-calculated and evenly spaced. No need to fiddle around with manual settings, just define the basic parameters and watch the magic math 😊. Punchhole rows are auto-calculated and will center on the outer wall. Parametric Model Maker

Fusion

Customizable Parameters:

- Height

- Width

- Length

- Wall thickness

- Punchhole Diameter

- Punchhole Spacing

- Corner Radius

- Save space on the top and bottom

Customizing Tips:

- If you adjust the width and length, it can be helpful to adjust the corner radius before making changes.

- If you adjust the corner radius, ensure that the desired size fits your desired width and length.

- If you want to create a round object. please ensure the width and length are matching. Configure the corner radius to ½ - 0.01 of the width or the length. Example: You have a width of 80, set the corner radius to 39.99.

Why another box model? There are a lot of box models already available, but all I found were static, or have features or design aspects that did not fit my needs.

I need a model flexible, that can easily adapt to any size I need - and also would be approved by my wife. Maybe I also wanted to play around with repeating auto-calculating patterns in Fusion 360, okay okay - you got me. Updates:

- 03.06.2025 - Added Parametric Model Maker support.

- 30.06.2024 - Added 18x14x6cm https://makerworld.com/en/models/103266#profileId-434003

- Added 18x14x10cm https://makerworld.com/en/models/103266#profileId-434006

- 20.02.2024 - Added 20x10x6cm https://makerworld.com/en/models/103266#profileId-214791

- Added 10x10x6cm https://makerworld.com/en/models/103266#profileId-214795

- Added 15x10x6cm https://makerworld.com/en/models/103266#profileId-214801

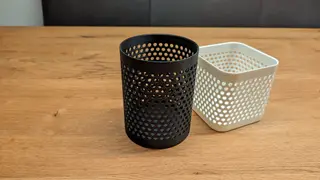

- 01.01.2024 - Added 2 new cylindric versions - 10x10x13cm https://makerworld.com/de/models/103266#profileId-126695

- 8x8x10cm https://makerworld.com/de/models/103266#profileId-126713

- Changed extrusion for the holes in the Fusion 360 model

- 24.12.2023 - Fixed baseplate calculation in the Fusion 360 model
