Optimized G-clamp

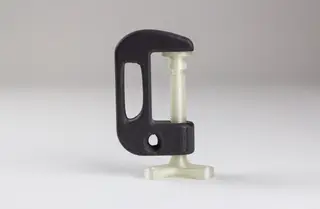

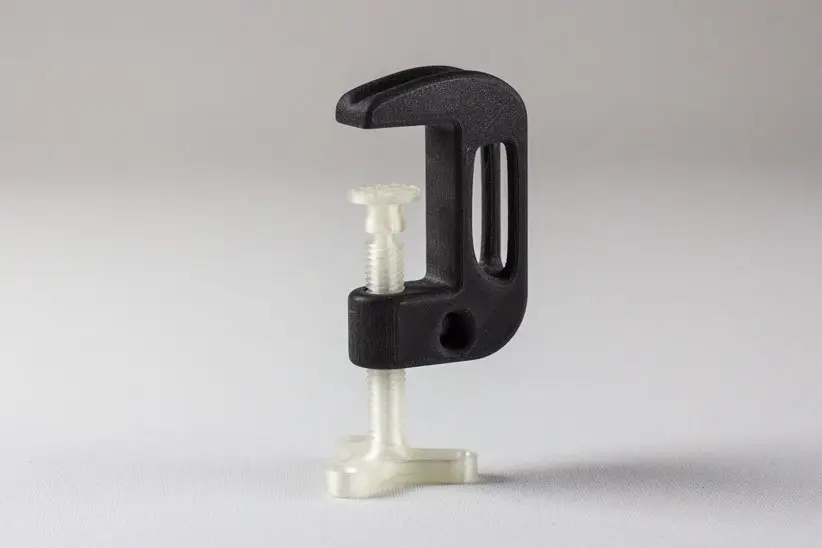

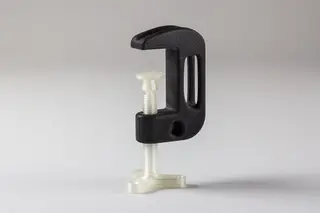

A fully usable weight optimized g-clamp. Simulated and modeled in Fusion 360.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoCC BY-ND 4.0 — Atribución, sin derivadas
Puedes imprimirlo y compartirlo sin cambios dando crédito; no se permite distribuir versiones modificadas.
Al descargar aceptas respetar la licencia y dar crédito a Frans.
Archivos (5)
- Clamp_-_Organic_body.stl STL
- Clamp_-_Solid_modelled.stl STL
- Pad.stl STL
- Screw.stl STL
- Thread.stl STL
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 5,700
- Publicado
Sobre este modelo
A fully usable weight optimized g-clamp. Simulated and modeled in Fusion 360.
Print the clamp laying flat on the side for best strength.
Print the screw standing with the ball on top and the pad on its flat/square patterned side.
Use supports for clamp and screw. Remove support interfering with the threads in your slicer if possible.

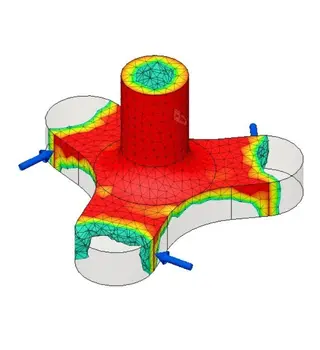

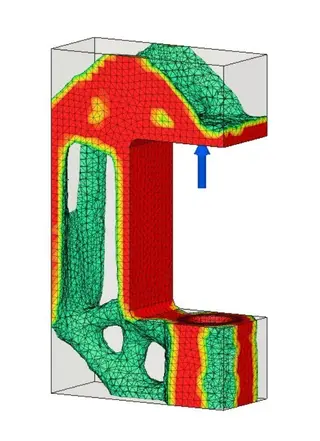

The parts are solid modeled with the weight optimized shape as reference. Organic shape also available, add the thread manually in your slicer. This is harder to print, I suggest you print it standing with supports.
Looking for a job in the AM industry, please contact me on [email protected]
Enjoy!
