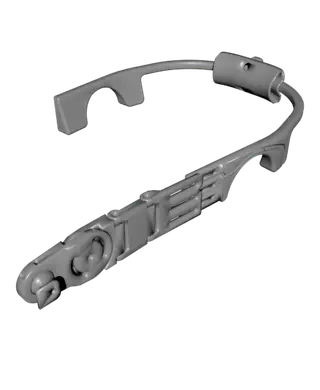

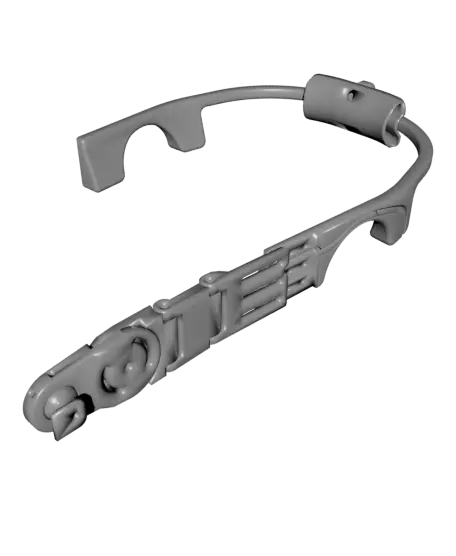

Optigon Behind-the-Neck Frame (Wearable display mod kit)

Get any monocular head-mounted display in front of your eye, and the rest out of the picture! Features a neck pad for comfortable stability, a fully articulated arm for positioning, and a cable channel to route wires over your ear.

I used this to turn an Epson Moverio BT-40 into the Optigon wearable I use in my YouTube videos. Watch the video to see the design come together!

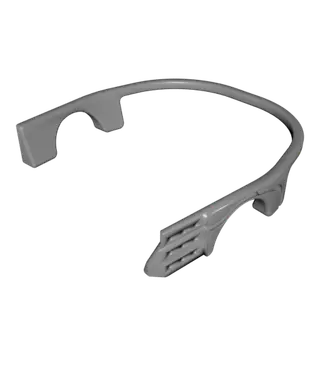

I strongly recommend printing the Headband in polycarbonate, PLA, a carbon-fiber filament, or resin. Print the Neck Pad in TPU, as soft as you dare. Print the rest in any filament, though carbon-fiber and matte filaments will be less likely to jiggle loose.

Just pop the Ball Mount into the Socket Segment, sink heat-set inserts into the Neck Pad Clip and Swivel Segment, assemble, and screw your display onto the Ball Mount. If you have a particularly long face* you can add one or more Extension Segments.

Everything mounts with M2 nuts and countersunk screws. I recommend buying a kit like this one (https://amzn.to/3OfDYXV). Don't forget the heat-set inserts! (https://amzn.to/3UNZvcF) Good filaments include carbon-fiber PETG (https://amzn.to/3Ekaxzf) and NinjaTek TPE (https://amzn.to/3AqcKZ0).

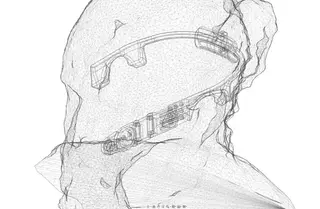

If the headband doesn't fit well, feel free to customize the Fusion 360 file. (https://a360.co/3tMyBFX) The sketch "Headband Shape" is all you need to play with - it should be pretty well-behaved.

Good luck!

*Why the long face? 🤣
