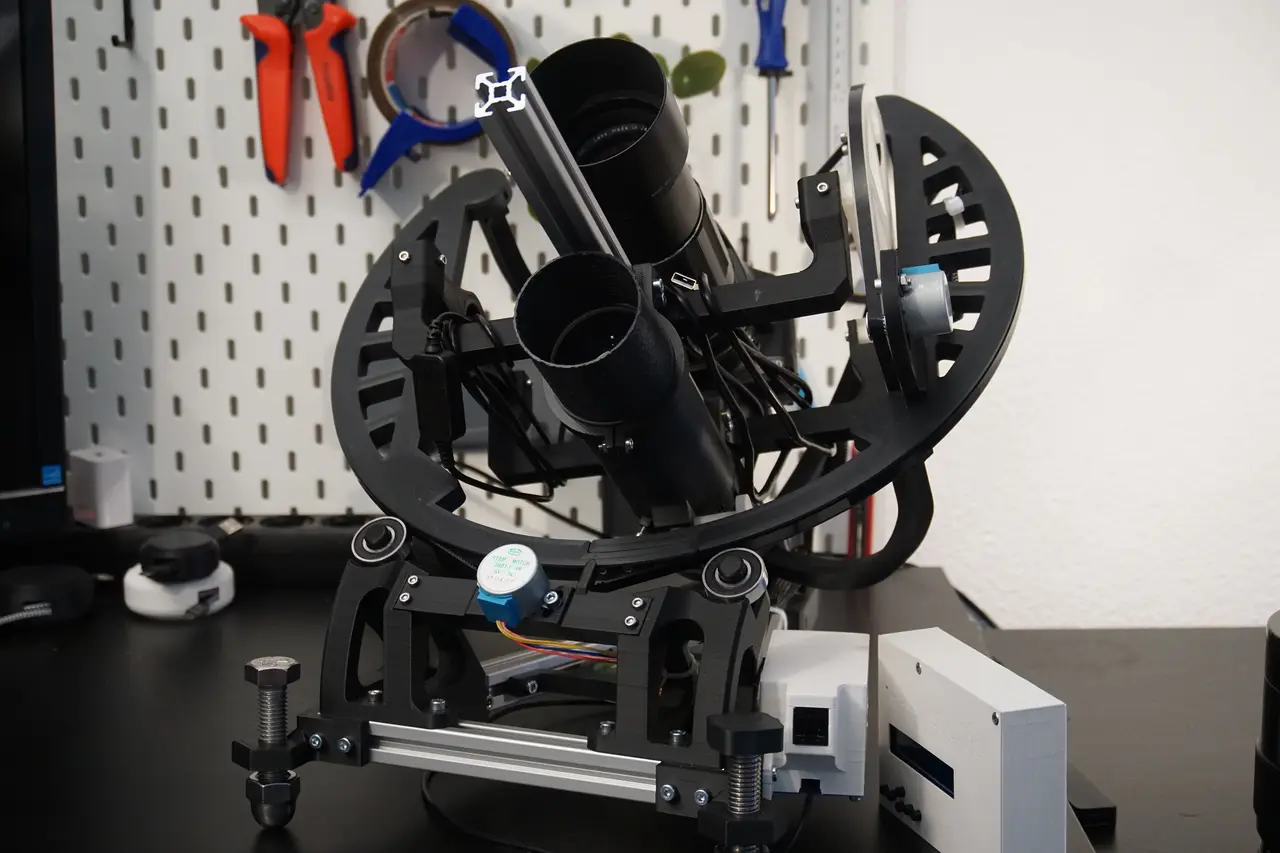

OpenAstroTracker - DSLR tracking & GoTo mount
por Fabian Uehleke en Thingiverse
A tracking and GoTo mount for DSLR astrophotography. Even works for higher focal lengths, up to roughly 300mm. For questions, discussions and stuff head over to r/openastrotech OpenAstroTracker Kits Now Available! Links Software Reddit Discord Guides Wiki OpenAstroGuider Autoguiding Addon...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Fabian Uehleke.
Archivos (18)
- 00_calibration.STL STL · 736 KB
- 05_pole_v5.STL STL · 683 KB
- 05.1_pole_v4.STL STL · 9,3 MB
- 05.2_stabilizer.STL STL · 14,5 MB
- 06a_splitring_part1_v4.STL STL · 1,3 MB
- 06b_splitring_part2_v4.STL STL · 997 KB
- 06c_splitring_part3_v4.STL STL · 1,0 MB
- 11_DEC_motor_mount_v7.STL STL · 280 KB
- 11_DEC_motor_mount_v8_low.STL STL · 260 KB
- 11_DEC_motor_mount_v9_NEMA.STL STL · 563 KB
- 14_RAmotor_mount_v5.STL STL · 450 KB
- 14_RAmotor_mount_low_v4.STL STL · 372 KB
- 14_RAmotor_mount_NEMA_down_v4.STL STL · 339 KB
- 15_Pulley_GT2.STL STL · 255 KB
- Universal_mount.rar RAR · 14,9 MB
- For_200x200_printers.rar RAR · 4,3 MB
- 2020_Base.rar RAR · 14,7 MB
- Mega_case.rar RAR · 918 KB
- Categoría
- Tecnología
- Formatos
- STL, RAR
- Descargas
- 23,377
- Publicado
Sobre este modelo
A tracking and GoTo mount for DSLR astrophotography. Even works for higher focal lengths, up to roughly 300mm. For questions, discussions and stuff head over to r/openastrotech OpenAstroTracker Kits Now Available! Links Software Reddit Discord Guides Wiki OpenAstroGuider Autoguiding Addon Community-made Addons I'll add things to this Collection, if you made something, send me a message. My Images Community Images Use the Printed Parts Chooser No, this wont work with a telescope. Max length of the lens is under 30cm roughly. Like this Project? Buy me and the devs a coffee! Updates: - 22.04.2021 - Updated 14_RAmotor_mount_NEMA_down to v4, adding adjustment for belt tension and making _up obsolete. - Updated 05_pole to v5, adding stoppers for upcoming sensorless homing with TMC2209 builds.
- 15.06.20 -fix for 04_rollmounts_2020base missing holes
- 14.06.20 -fix part 14 for printed pulleys, from colliding with the belt
- 11.06.20 -added parts for aluminum base
- 06.06.20 -updated 11_low to v8. Fixes not being able to tighten the belt with 20T pulleys -updated 200x200 printers ring parts to latest version
- 20.05.20 -see this post
- 10.04.20 -updated the files for 200x200 printers with the v2 ring
- 17.03.20 -added klwill1192's lens adapter for big lenses with the guidescope -some changes to the RA wheel, see this post
- 14.03.20 -added part 14 for 200x200 printers. Thanks nate_drake for pointing that out
- 13.03.20: -added adaptions of parts 11 and 14 (the motor mounts) with the addendum "_low". These will fit with purchased GT2 pulleys. -updated the lens ring SCAD. It has a new value "length" for lenses that have little space to mount it.
- 10.03.20: -added a .rar with parts that will fit in a 200x200mm printer. -Changed part 10 to fit a bit tighter to part 08
- 26.02.20: updated Arduino code to v1.2.5 now with support for southern hemisphere. Check first page of code. Cables need to be flipped
Descripción original del autor, publicada en Thingiverse.
