Open Brushless Gimbal

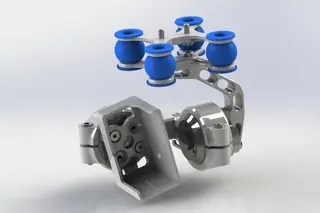

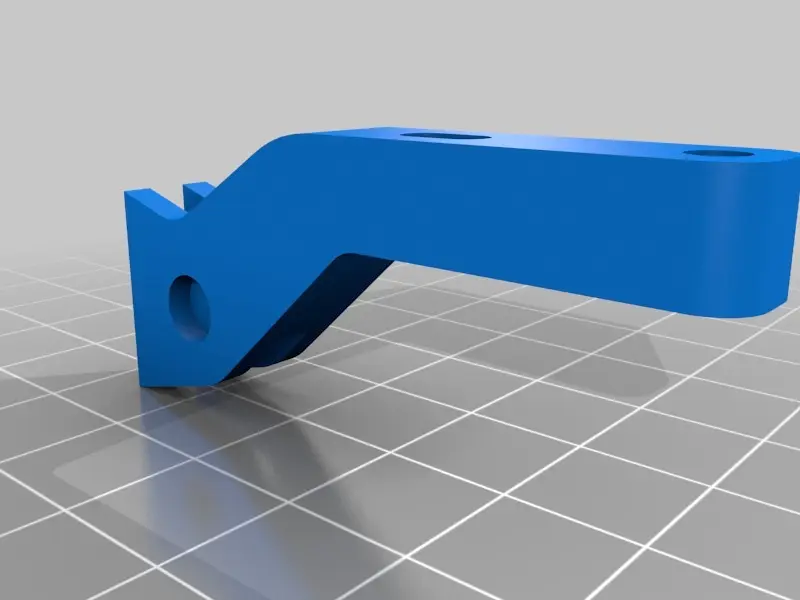

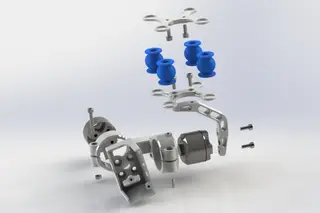

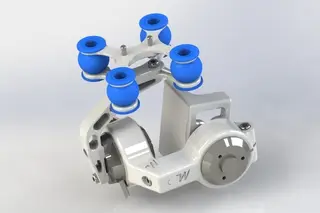

07/11/2013 A new fixation arm for the Eflite 350 QX quadricopter 21/07/2013: -Update arm3 and suspension frame, wider and stiffer -Add a gopro 1 and Gopro 2 box You can now download the complet SW 2013 file (sorry §I can't make SW 2012 files) : https://docs.google.com/file/d/0B01j3oTQObOhbzNLY0E5NEp3UE0/edit?usp=sharing and the STEP files : https://docs.google.com/file/d/0B01j3oTQObOhVlhQYngzMEMxU00/edit?usp=sharing I'm working on printed molds for silicon dampers , it works, but need some improvements : http://www.thingiverse.com/thing:118365 This is the version 2 of the WBG (W Bruhsless Gimbal), with a new suspension system. More informations in french : http://openbrushlessgimbal.blogspot.fr/ This gimbal must be used with 22mm brushless motors and brushless gimball controler. Achieve in the free Multicopters Wadudu project, sponsored by the Regional Council of Aquitaine (France). Read more wadudu.fr For the moment only the gopro hero 3 can be used, other cam adapter are coming soon.. The electonic card is a drotek Brushless Gimbal Controller V2 http://www.drotek.fr/shop/en/home/168-brushless-gimbal-controller.html The motors are protronik brushless gimbal motors : Kv 120 gimbal special 2210G The alimentaiton is made with a 3S lipo. The firmware is alexmos V2. And a test video , the good one this time ;) http://www.youtube.com/watch?v=GqpLaINocbk
