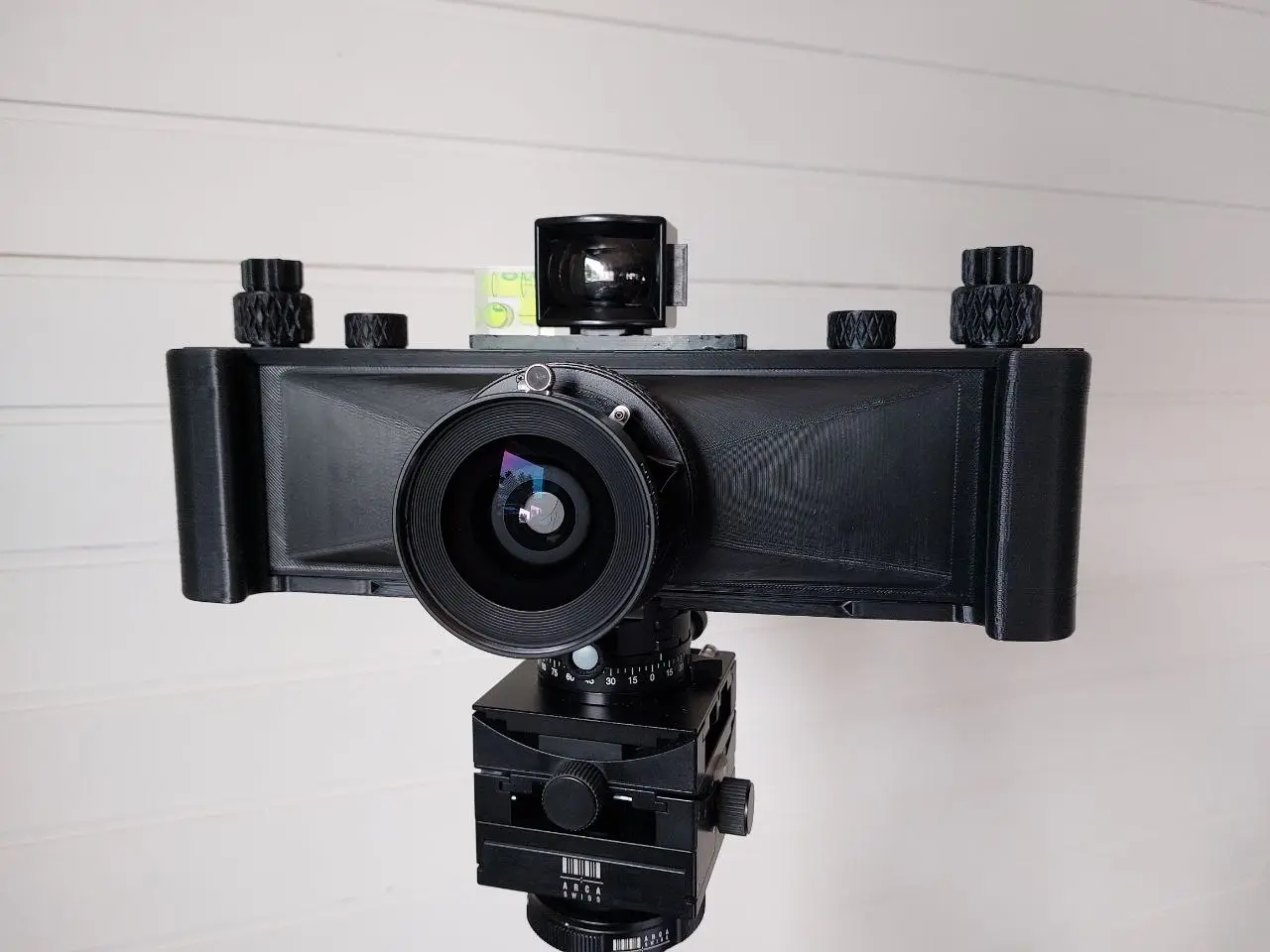

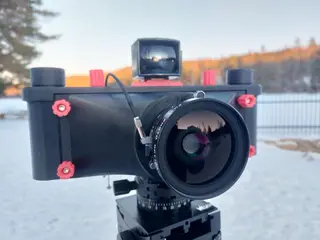

Open 6x12, 6x17 and 6x24 Panoramic Camera

Fully open source STEP files Please remix and share alike I'm sorry that all the files are not better sorted, labelled and optimized. 6x12 is designed for Fujinon SWD 65mm lens 6x17 is designed for Fujinon SWD 75mm lens 6x24 is designed for Nikkor SW f/8 90mm mm lens (Only f/8 is compatible with M65 mount)

Flange back is the distance between the back of the shutter to the film plane, if you want to design your own cones etc

I've recently been made aware that there exists M77 helicoid focus rings: https://www.ebay.com/itm/115807253793 (aluminium) https://www.ebay.com/itm/325777990925 (brass) This allows a much greater lens selection for all versions, but requires redesign of the lens cones, since they are much wider.

Different lenses have different flange distances which has to be taken into account.

You have to source or make your own viewfinder. Maybe someone is skilled enough to design a simple one to use with this format.

A phone can be used, I have designed phone mounts for the different versions. 6x17 and 6x24 mounts are the same.

Uses M3 threaded inserts, nuts and bolts. Recommended to print in 0.2mm layer height. The cone with M65 helicoid mount should be printed in 0.1mm layer height for more accurate threads. Please remix and share!

Check out https://www.printables.com/@MortenKolve_243546 for parametric lens cones!

PAINT THE INSDE OF THE CONES WITH MATTE BLACK PAINT

THE SMALL ROUND WINDOW IN THE REAR SHOULD BE COVERED WITH A THIN PIECE OF SEE-THROUGH DARK RED PLASTIC! Glue in place https://www.ebay.com/itm/195715217556 Then slide in a 120 film reminder to cover that, like this:

Organic Supports With the recent addition of Organic Supports to PrusaSlicer, I think it will be a better solution than my integrated supports. Edit: I've since printed a second 6x12 camera and used organic supports. It's much better than my integrated ones.

UPDATES:

04.05.2025 Mostly v8, with some small changes for easier print of lens cone fastener and no dark slide (too much hassle with light leaks).

17.03.2024 Fixed some issues with the v8 version. I have still not printed it or tested it. Please print at your own risk.

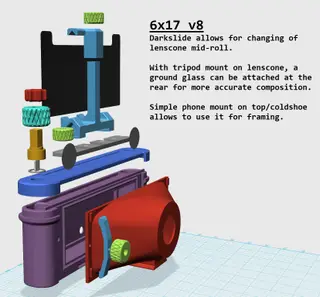

13.08.2023 Made v8 of 6x17, but have not tested it yet for lightleaks, recently ran out of filament. I've reached out to Morten Kolve if he could help me design parametric lens cones with support for M65 and M77 helicoids.

I've yet to design the ground glass holder to attach at the rear of the lenscone. Need to do research to find best ground glass for this purpose.

06.02.2023 Added phone holder for the 6x12 coldshoe mount.

05.02.2023 Added phone holder for the triple coldshoe mount.

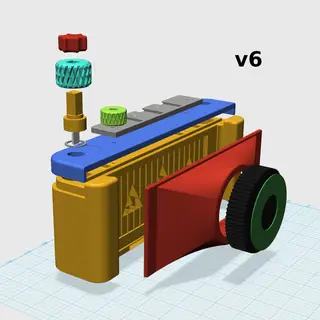

01.02.2023 Made a v6, but have not printed it or tested it. - Requires no screws for lens cone, making the cone much easier to print. - Integrated grips in the body - Two less screw/inserts needed for the triple viewfinder socket - Add some black felt adhesive to the bottom of the body where the chamfered cone sits. Can add to the bottom rear face of the cone as well. Some have experienced light leaks here.

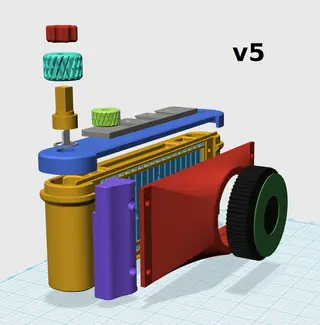

31.01.2023 - v5! Only 6x17 for now After https://www.printables.com/social/243546-mortenkolve remixed my design, I was inspired to update. Essentially re-remixing. - It still uses M3 hardware, threaded heat inserts, nuts and bolts. - Widened the triple viewfinder mount, so that the lid thumbscrews goes though it. Also updated the lid thumbscrews to be larger and much more comfortable. - Added a grip instead of thumbscrews to fasten the cone. - Added a new cone for M65 helical focus mount and 75mm lens (~85mm flange). Can be found on ebay or aliexpress for cheap. - Made the integrated supports a bit easier to remove.

Print 2x of all the knobs and the grip. Mirror one of the grips along X axis in the slicer. 2 x 18 or 20mm M3 bolts for film lock knobs 4 x 18 or 20mm M3 bolts for grip/cone 2 x 25mm M3 bolts for lid knobs

v5 should be backwards compatible with v4.

24.09.22 Uploaded STL files as well.

14.01.22 Added an easier to print 90mm cone for the 6x24 camera. Considering doing the same for 617 75mm, since it doesn't print that well.

06.01.22 5mm spacer added for film spool retention, so that the film does not climb when wound. Only needed if this is a problem.

02.01.22 Uploaded version 4 of all bodies, 6x12, 6x17 and 6x24 in STEP.

28.12.21 Updated some details, tolerances etc on all models (6x12, 6x17 and 6x24)

26.12.21 Added experimental 6x12 verison with lens cone for Fujinon SWD 65mm f/5.6, 73.4mm flange.

24.12.21 Added an experimental 6x24 version for Nikkor SW 90mm f/8 lens with 97mm flange distance. Not printed or tested at all.

v3 update. 22.12.21 v3 is threaded insert only for now. M3 nuts are so finicky to get right due to tolerances and overhangs etc. More smaller quality of life adjustments and improvements. ----
