Sobre este modelo
Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:6206871.
The One Ring (Dual Print and Lithopane)

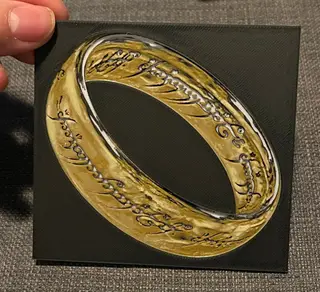

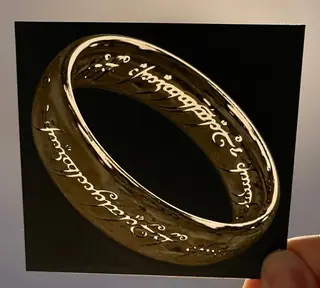

This Hueforge print is both a front-lit filament painting (normal print), but also a half lithophane. When backlit, the writing on the ring glows. A two-for-one! See images for an example.
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm
Filaments Used: PLA META Sunlu White Transmission Distance: 9.6 PLA Siddament Black Transmission Distance: 0.2 PLA+ Sunlu Coffee Transmission Distance: 3 PLA META SUNLU Yellow Transmission Distance: 8 PLA Siddament Black Transmission Distance: 0.2
Swap Instructions: Start with White At layer #6 (0.56mm) swap to Black At layer #11 (0.96mm) swap to Coffee At layer #18 (1.52mm) swap to Yellow At layer #25 (2.08mm) swap to Black for the rest.
Your filament settings and mine may differ in TD, so best to adjust yours according to your known TD filaments.
Descripción original del autor, publicada en Thangs.
