One-Piece Frames

UPDATE: Try our new Snap Together Frames (https://than.gs/m/1294110) that print on edge for a smoother face!

___

This download includes a set of square frames designed to fit our 3D map models. See the included PDF for more info.

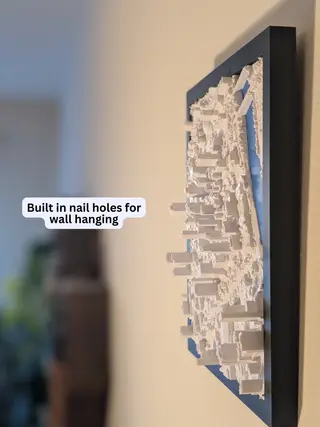

INSTRUCTIONS: 1. Pick your frame size. The name of each STL describes the interior and exterior dimension. This is to help choose a frame that fits your build plate and map model. 2. Scale the frame. The frames can also be scaled to a custom size in the slicer. For example, if you printed your model at 188mm size, scale the 175mm interior frame by 108% ((188+1)/175*100 = 108). Online Frame Scaling Calculator (https://micropolitan1.github.io/FrameScaleCalc/). The frame interior should be about 0.5 mm larger than your map model. Use the 'Measure' tool in the slicer to double check. 3. Print! 4. Assemble & Display. Use a small amount of glue or double sided tape to secure the model in the frame. Use the pre-cut notches in the back to hang it from a nail, or display on a shelf or tabletop!

The short frame profile is 15mm x 12.5mm. The tall frame profile is 30mm x 12.5mm.

Tip: The frames can be scaled to adjust the profile. E.g., If you want a wider frame, import a smaller frame size into the slicer and scale up the dimensions. The height can also be scaled.

Don't forget to post a 'Make' of your finished, framed pieces!

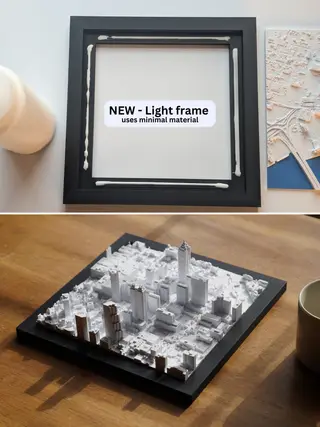

FILES: New: Light Frame - Interior 200mm - Exterior 234mm - Short (minimal material, scale to size) Interior 125mm - Exterior 150mm - Short Interior 125mm - Exterior 150mm - Tall Interior 150mm - Exterior 175mm - Short Interior 150mm - Exterior 175mm - Tall Interior 155mm - Exterior 180mm - Short Interior 155mm - Exterior 180mm - Tall Interior 175mm - Exterior 200mm - Short Interior 175mm - Exterior 200mm - Tall Interior 195mm - Exterior 220mm - Short Interior 195mm - Exterior 220mm - Tall Interior 200mm - Exterior 225mm - Short Interior 200mm - Exterior 225mm - Tall Interior 210mm - Exterior 235mm - Short Interior 210mm - Exterior 235mm - Tall Interior 225mm - Exterior 250mm - Short Interior 225mm - Exterior 250mm - Tall Interior 231mm - Exterior 256mm - Short Interior 231mm - Exterior 256mm - Tall Interior 250mm - Exterior 275mm - Short Interior 250mm - Exterior 275mm - Tall Interior 275mm - Exterior 300mm - Short Interior 275mm - Exterior 300mm - Tall Interior 300mm - Exterior 325mm - Short Interior 300mm - Exterior 325mm - Tall Interior 325mm - Exterior 350mm - Short Interior 325mm - Exterior 350mm - Tall Interior 350mm - Exterior 375mm - Short Interior 350mm - Exterior 375mm - Tall Interior 375mm - Exterior 400mm - Short Interior 375mm - Exterior 400mm - Tall Interior 400mm - Exterior 425mm - Short Interior 400mm - Exterior 425mm - Tall Interior 425mm - Exterior 450mm - Short Interior 425mm - Exterior 450mm - Tall
