OmniWrench
por Brandon Burrows en MyMiniFactory
IT IS THE ONE AND ONLY OMNIWRENCH!!!
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Brandon Burrows.
Archivos (32)
- Bottom_Piece_Dowel.stl STL
- Bottom_Piece.stl STL
- Grip_Guard_Bolt_1.stl STL
- Grip_Guard_Bolt_2.stl STL
- Grip_Guard_Bolt_3.stl STL
- Grip_Guard_Bolt_4.stl STL
- Grip_Guard_Dowel.stl STL
- Grip_Guard.stl STL
- Hand_Grip_Dowel.stl STL
- Hand_Grip.stl STL
- Leather_Wrap_Dowel.stl STL
- Leather_Wrap_Plain_Version_Dowel.stl STL
- Leather_Wrap_Plain_Version.stl STL
- Leather_Wrap.stl STL
- LED_Ring x4.stl STL
- Left_Head_P1_Dowel.stl STL
- Left_Head_P1.stl STL
- Left_Head_P2_Dowel.stl STL
- Left_Head_P2.stl STL
- Longer_Dowel.stl STL
- Main_Stem_Dowel.stl STL
- Main_Stem.stl STL
- Right_Head_P1_Dowel.stl STL
- Right_Head_P1.stl STL
- Right_Head_P2_Dowel.stl STL
- Right_Head_P2.stl STL
- Shorter_Dowel.stl STL
- Support_Block x2.stl STL
- Support_Block_Dowel x2.stl STL
- Top_Head_Dowel.stl STL
- Top_Head.stl STL
- Top_Small_Bolt x12.stl STL
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 154
- Publicado
Sobre este modelo
IT IS THE ONE AND ONLY OMNIWRENCH!!!
There are 2 variations, the cosplay version (with a dowel insert) and a display version (without one)
Each variation has a leather wrap and non leather wrap version that will allow you to wrap your own leather/pleather/cloth/etc to it and give it a distinct look!
The LED_Ring x4 is 1 model but you need 4 of them (they are exactly the same just need to print 4) The Top_Small_Bolt x12 is the same situation, same model and you need 12 of them
HOWEVER!

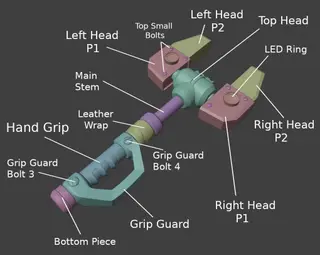

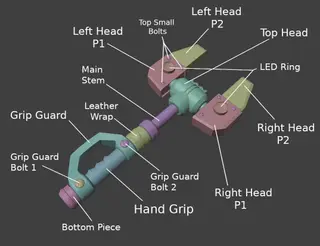

The bolts for the Grip_Guard (Grip_Guard_Bolt_#) ARE ALL DIFFERENT please take note. I have put numbers on the bottom so you can know which ones you have printed, and then you can refer to the image for which one goes where!
Details
All parts have a 0.2mm tolerance to them

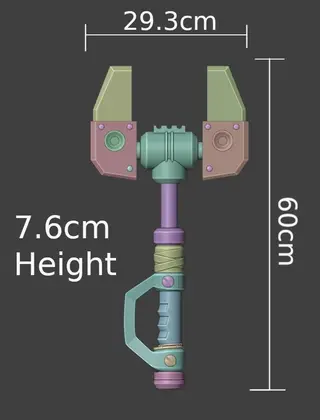

Dowel - 390mm long with a diameter of 8mm Dowel - 240mm long with a diameter of 8mm
I have included a printable version of each dowel incase you dont have access to wooden or aluminum dowels too.
Remember! If Ratchet was a cookie…. It would probably be a Snickerdoo!
