Ogive Lamp - Gothic Lozenge Lattice E27 Lamp Shade with Table and Wall Stand

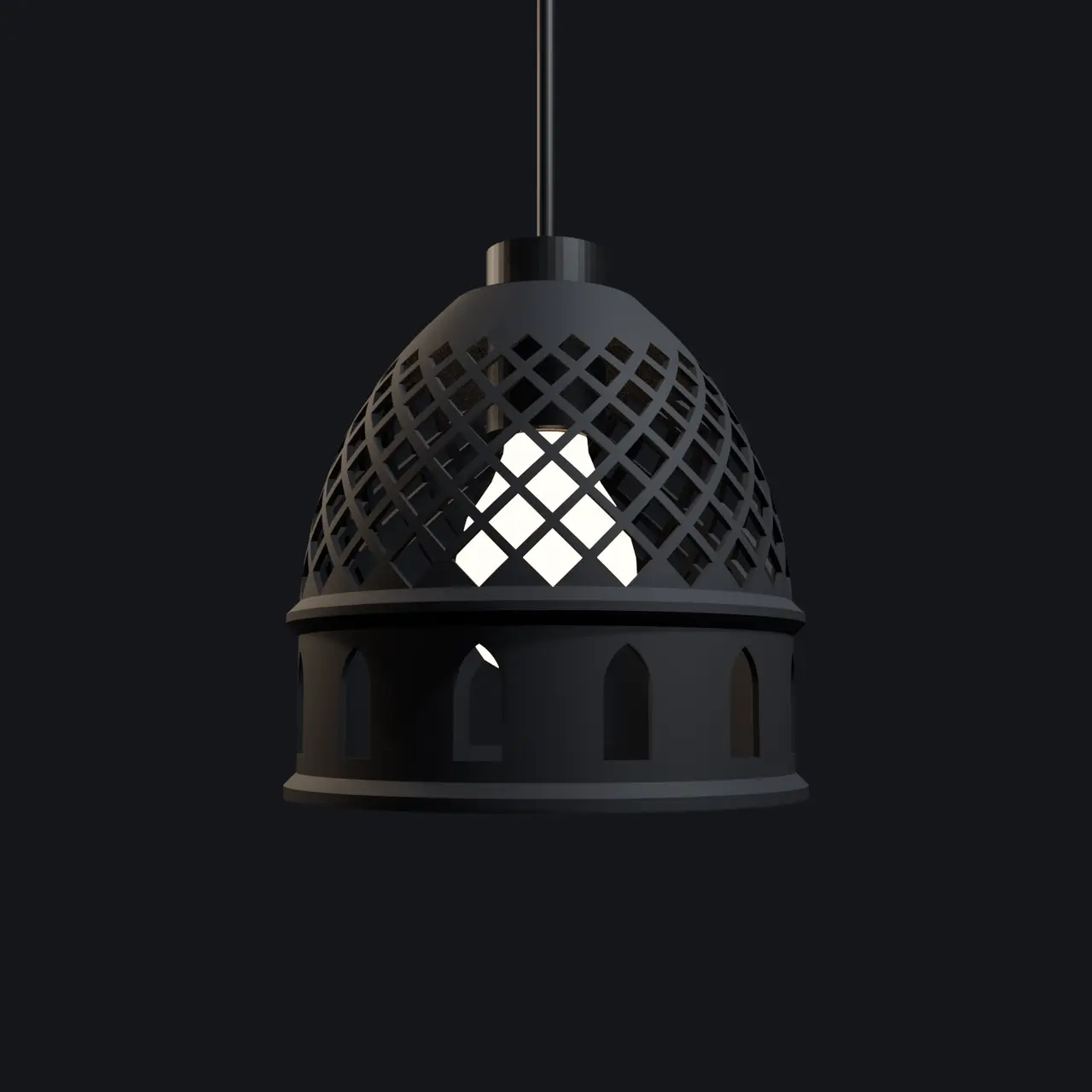

An ogival (pointed-arch) dome covered by a lozenge lattice, over a drum with a blind lancet arcade and moulded bands. The lattice throws a diamond pattern on the room. The stand follows it with an ogee arm with a lozenge web and spikes, a column with lancet niches and a base with a lozenge frieze.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalLicencia de uso privado de Cults3D: puedes imprimirlo para ti. No se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a VRam3D.
Archivos (5)
- Ogive_Lamp_Arm.stl STL
- Ogive_Lamp_Shade.stl STL
- Ogive_Lamp_Table_Base.stl STL
- Ogive_Lamp_Table_Column.stl STL
- Ogive_Lamp_Wall_Plate.stl STL
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo
An ogival (pointed-arch) dome covered by a lozenge lattice, over a drum with a blind lancet arcade and moulded bands. The lattice throws a diamond pattern on the room. The stand follows it with an ogee arm with a lozenge web and spikes, a column with lancet niches and a base with a lozenge frieze.
One design, three ways to use it:

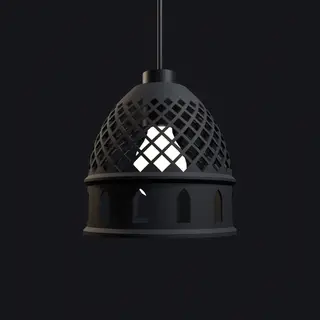

- PENDANT: hang the shade from the ceiling on any standard E27 pendant cord set.

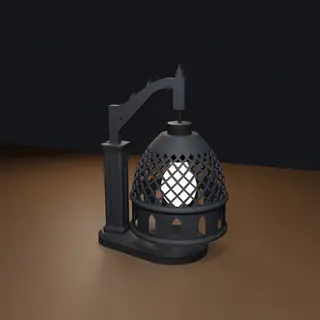

- TABLE LAMP: the shade hangs from the arm of a gothic stand. The shade hangs over a wide base,
so the lamp is very stable (it needs a tilt of about 23 degrees to tip over).

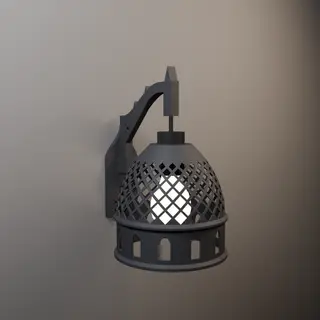

- WALL LAMP: the same arm drops into a wall plate fixed with two screws.
No rewiring, no glue, no screws in the lamp itself: you only need a standard E27 pendant cord set
(cable + lamp holder with shade ring) and an LED bulb. The cable snaps into hidden channels of the

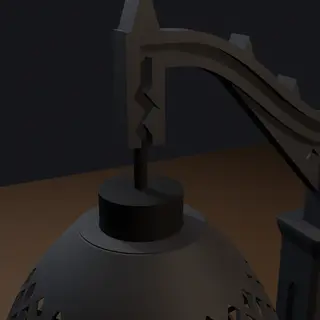

stand, and a zig-zag cable grip at the tip of the arm holds the shade at the height you choose.
Every part prints without supports and is already oriented in the STL files.
WHAT TO PRINT
- Pendant lamp ...... Shade
- Table lamp ........ Shade + Arm + Table_Column + Table_Base
- Wall lamp ......... Shade + Arm + Wall_Plate
PARAMETERS
- Shade: 168 mm diameter x 163 mm high. ogival dome with 8 rows of lozenges (24 per row), 12 lancet openings, 2 moulded bands.
- Stand: ogee arm with lozenge web and spikes, column with blind lancet niches, base with lozenge frieze, ogee-arch wall plate with lozenge cut-outs.
- Mounting hole: 40.5 mm diameter with a 3 mm thick flat clamping area (standard E27 holder
with threaded sleeve and shade ring).
- Table lamp assembled: 236 x 168 x 319 mm (L x W x H), about 722 g printed
including the shade. Static tip-over angle about 23 deg in the weakest direction.
- Wall lamp: projects 219 mm from the wall, 274 mm high in total.
- Joints: 12 x 14 mm rectangular pegs in 12.5 x 14.5 mm sockets (0.25 mm clearance per side).
- Cable channel: snap-in, 5.4 mm mouth / 6.8 mm inside, for round 2-core cords of 6-7 mm.
- Bulb: A60 LED (60 x 108 mm) or LED filament ST64 / G80; at least 24 mm from glass to plastic.
- Approximate filament: shade 172 g, arm 46 g, column 108 g,
base 286 g, wall plate 65 g.
