OBSIDIAN - SKADIS Pegboard Boxes and Holders

OBSIDIAN RANGE update 21 Sept 2026 : added iPod Holder

been in the attic and found a couple of iPods, put new batteries in them and transferred my entire music collection onto one. Created a Skadis holder to keep it to hand.

update 26 Aug 2026 : added Revo 7 Magazine Holder

Update 12 May 2026: added a Apple Mac Mini Holder

Update 10 May 2026: added a screwdriver set holder for 12 screw drivers

Update 21 April 2026: added Paint Brush holder - 4 Plier Set Holder - Large Shelf 110 x 115mm

Update 16 March 2025: added a Holder for Filament Snips.

Update 7 Jan 2026 : added a Multi Meter holder to Profile Six. The inner dimensions are 90mm x 40mm x 70mm

Update 31 Dec 2025 : added Profile 6 : Battery Holders and Vertical Board Connector.

Update 13 Dec 2025 : Added Profile 5 : Army Paint Holders x 5 and x 10, USB Flash Drive Holder and a 45mm diameter Bottle Holder.

Update 23 Nov 2025 : Added a holder for the DYMO LetraTag Label Printer on a separate print profile.

A range of matching items for the Ikea Skadis Pegboard.

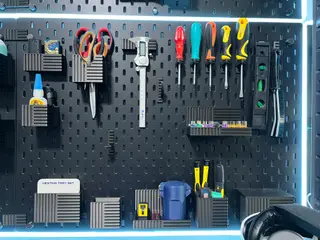

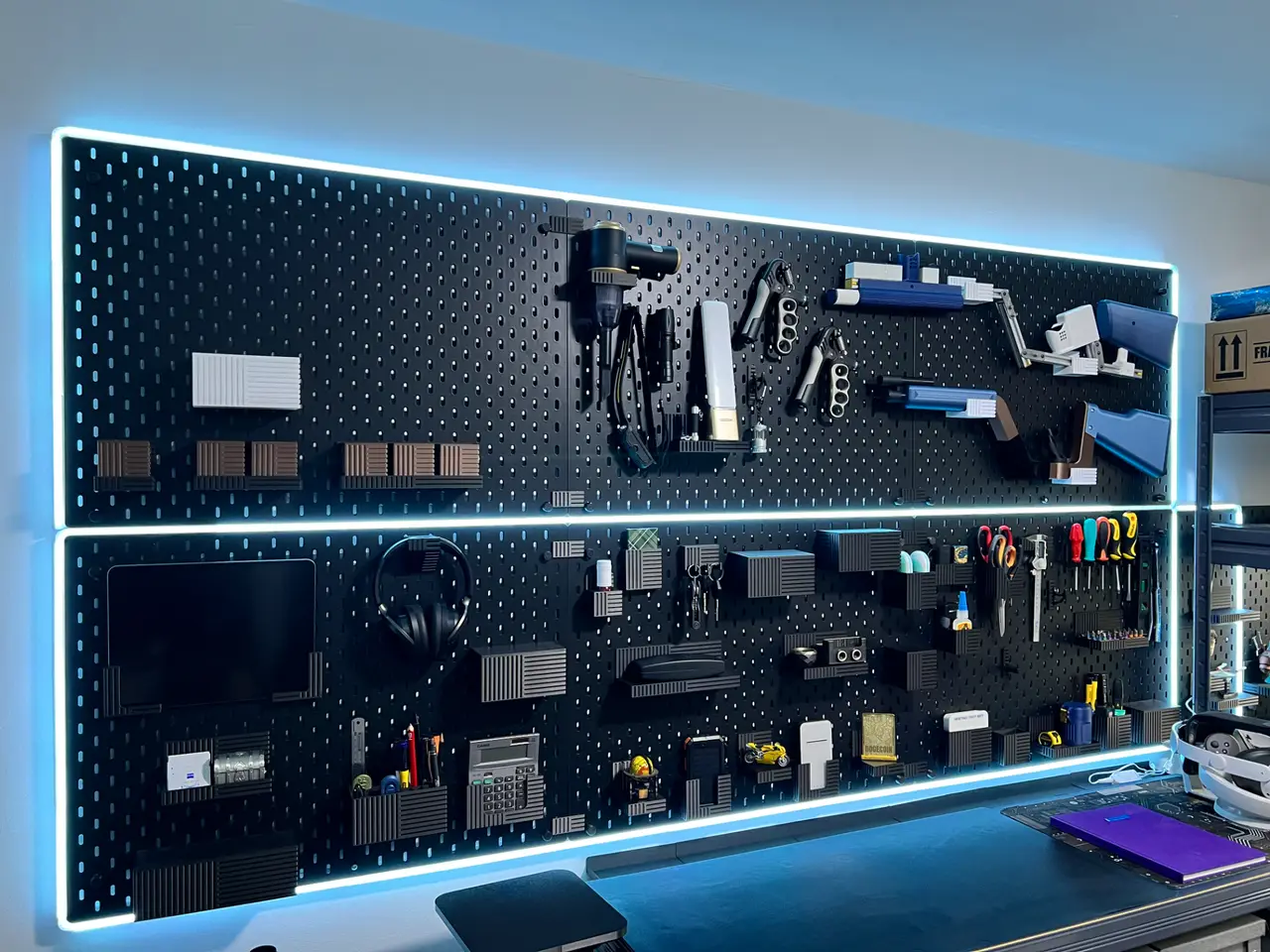

I wanted all my stuff to hand without cluttering my desk so I bought a few pegboards from Ikea and I used a Neon light strip I had knocking around for a year but couldn't find a use for to create this set up. Still a bit of re-arranging and printing to go but its now useable.

The individual models are not designed to be a quick print or be frugal with the filament, more to look good and be sturdy ( I used 15% Gyroid infill and 3 walls with organic supports active). All the pegboard fixings have a gap of 5.25mm except the hooks which are only 5.10mm and seem to work best for me using Bambu Labs PLA Metal Iron Gray or PLA Matt. Thought I would share them just in case anyone else liked the look. If you like the look and would like a particular matching holder I will see what I can do, time permitting.

Below is a list of the items in the various print profiles. I have also attached a PDF with pictures of each item in the Range.

ITEMS IN PROFILE ONE :

Tray Box and Lid - 63.50 x 63.50 x 65 mm - usable 58.70 x 58.70mm Single Tray 72.5 x 72.5 x 72.5 mm - usable size 64.50 x 64.50mm Single Shelf - 72.5 x 72.5 x 72.5 mm - usable size 72.50 x 68.50mm Dual Tray - 72.5 x 145 x 72.5mm - usable size 137 x 64.50mm Dual Shelf - 72.5 x 145 x 72.5mm - usable size 145 x 68.50mm Triple Tray - 72.5 x 217.50 x 72.50mm - usable 209.50 x 64.50mm Triple Shelf - 72.5 x 217.50 x 72.50mm - usable 217.50 x 68.50mm Box One - 72.5 x 72.5 x 72.5 mm - usable size 64.50 x 64.50 x 68.50mm Box Two - 72.5 x 145 x 72.5mm - usable size 137 x 64.50 x 68.50mm Box Three - 72.5 x 217.50 x 72.50mm - usable 209.50 x 64.50 x 68.50mm Hook One Hook Two Hook Three 10mm Screw Driver Holder 6mm Screw Driver Holder

ITEMS IN PROFILE TWO :

Caliper Holder Single Scissor Holder - can also hold pliers Trio Scissor holder Calculator Holder - 124mm x 21mm x 69.50mm Headphone Holder - 41mm wide gap for headband Ipad Pro 13inch Holder - recommend using 1mm self adhesive felt on the inside to prevent scratching. Key Holder with small compartment - holds three keys. Pen Holder One Pen Holder Two Pen Holder Three (fits pens upto 15mm diameter) Powerpak Holder - 85mm x 30mm x 68.50mm Vacuum Holder - 62mm diameter hole.

PROFILE 3

Flick Wallet 12mm x 64mm Flick Wallet 20mm x 72mm Glasses Case holder 40mm x 64.50mm Spray Bottle 31.25mm wide Card holder (credit or business) 32mm x 64.50mm Nesting Tray Holder (in my other models) 25mm x 105mm 4mm (ish) Hex bit Holder 6mm (ish) Hex bit holder Skadis H Board Connector - Connects Skadis boards Horizontally. Hand Warmer holder (for Rechargeable hand warmers)- 30mm x 60mm with rounded corners

thought I would add these odd ball items on a separate profile.

PROFILE 4 - Neon Light Strip Holder I used a standard neon light strip, that I placed inside a PETG Translucent Holder (this is on a separate print profile) and stuck it to the wall using 3M double sided tape. Not sure if this will work with all Neon strip lighting strips so just print a test piece to try first. I used Translucent Clear PETG because of the slight heat coming of the light strip. Its just a corner piece and a straight piece, you can alter the length of the straight piece easily in Bambu slicer, just untick the uniform scale box and alter the 181 number to the length you need in mm.
