No Drill acoustic Panel mount
por re3ce en Printables
No drill acoustic panel mount simple and strong device can be used for mounting various items to acoustic board
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a re3ce.
Archivos (5)
- Categoría
- Figuras y arte
- Formatos
- 3MF, BGCODE
- Descargas
- 3
- Publicado
Sobre este modelo

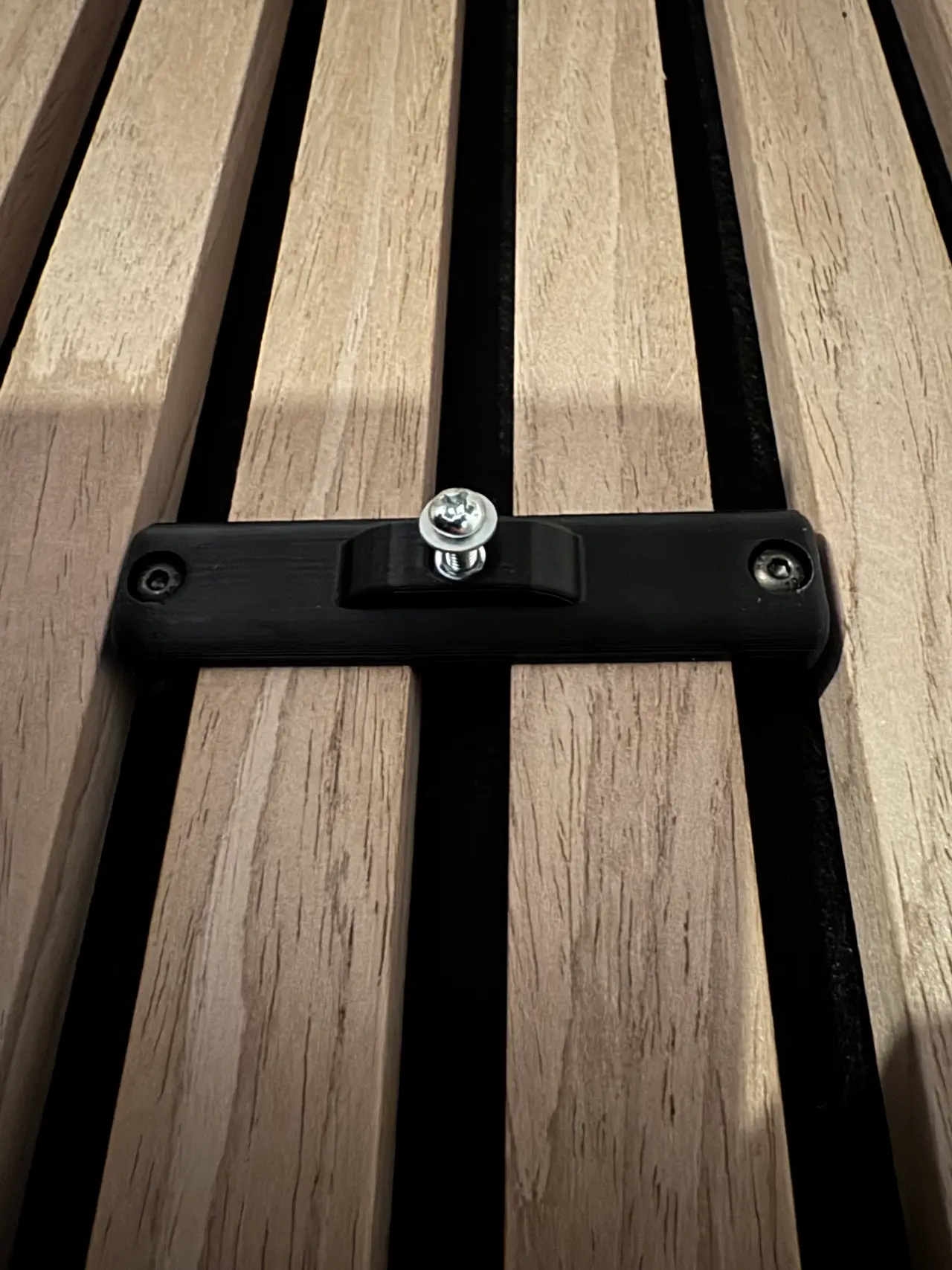

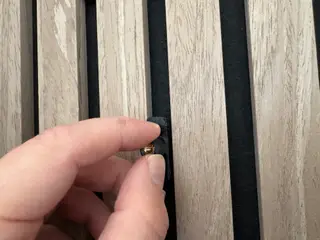

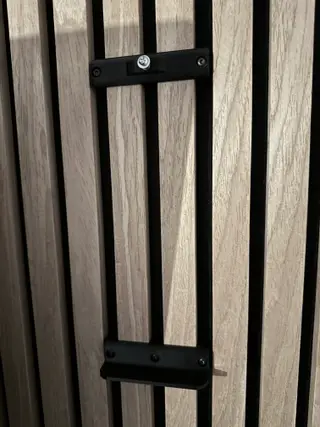

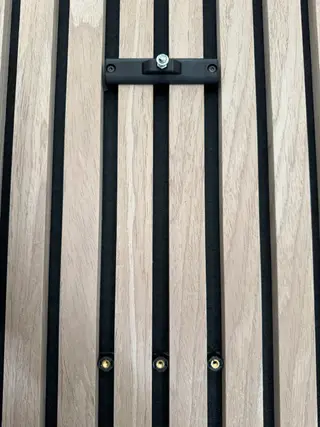

No drill speaker mount system for acoustic panel walls. Strong and simple system for screw mounted speakers or other items No drilling needed, simply slot and twist the hook mount in place behind the slats, apply the top mount and screw together with the included M4 bolts. Speaker is hooked onto the centre screw of the top mount. Adjust bottom bracket to desired distance to cradle bottom of the speaker for additional support fits acoustic panel with 13mm gaps and up between the slats

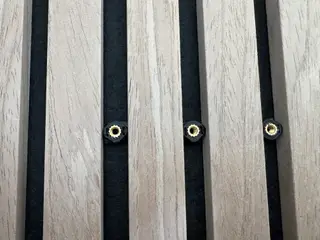

kit consists of Top mount Bottom cradle 6 x twist hooks Needed: M4 bolts x 6 6 x threaded insert M4 nut to lock the centre bolt in place Please like, download and review :)
Descripción original del autor, publicada en Printables.
