Nintendo Switch Vertical Layout Bracket
por Never Not Exhausted en Thangs

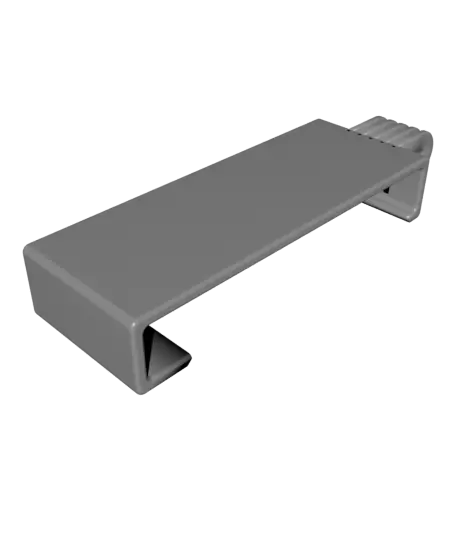

A bracket that goes over the JoyCon comfort grip and holds the Switch above for a vertical layout. This provides better comfort than bare JoyCon's by utilizing the comfort grip, and makes the console narrower for better comfort if you play while laying down.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Never Not Exhausted.
Archivos (2)
- Switch Vertical Mount - Console Holder.stl STL · 6,9 MB
- Switch Vertical Mount - Controller Mount.stl STL · 2,0 MB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 320
- Publicado
Sobre este modelo

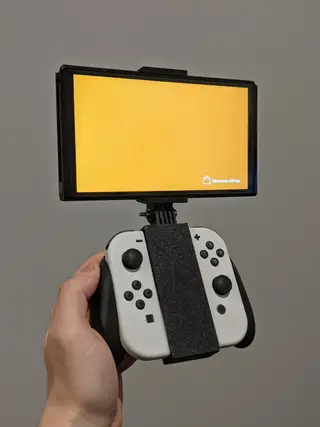

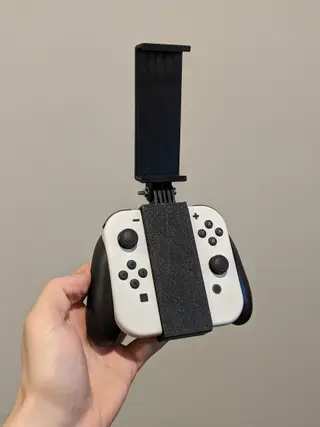

A bracket that goes over the JoyCon comfort grip and holds the Switch above for a vertical layout. This provides better comfort than bare JoyCon's by utilizing the comfort grip, and makes the console narrower for better comfort if you play while laying down.

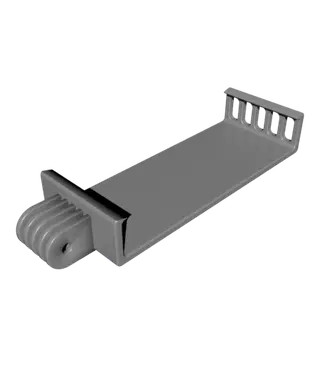

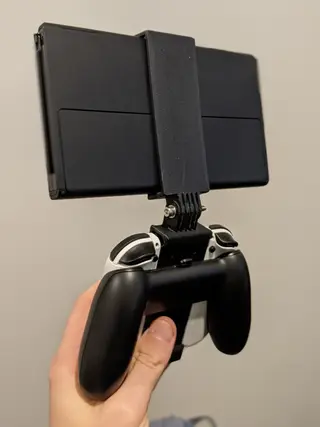

Both sides of the model simply clip on to the Comfort Grip/Switch Console, and are held together with an M4 bolt. The holes for the bolt are slightly undersized, the intention being for it to be threaded in. I've also added vents to the top so the consoles exhaust isn't restricted.
I printed both parts on their backs with 5 top/bottom layers and 50 percent infill, because the unit is top heavy I wanted extra strength. I also used tree supports for the longer overhang on the controller side of the model.
Descripción original del autor, publicada en Thangs.
