NEW!!! Toroidal Propeller Maker V2 (Fusion 360)
por Grey en Printables
Completely parametric Fusion 360 file for designing toroidal propellers quickly (for drones).
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Grey.
- Categoría
- Cosplay y props
- Formatos
- F3D
- Descargas
- 1,308
- Publicado
Sobre este modelo
[Parametric Fusion file for designing toroidal propellers (for drones)]

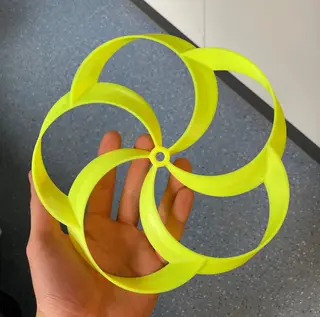

V2 AVAILABLE NOW!!! Changes in V2: - Blade Count Parameter! (Be careful with the count or else fusion might crash. DON'T TRY OVER 100!) - Parametric Fillets to improve aerodynamics

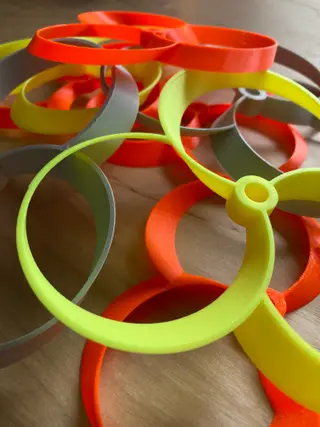

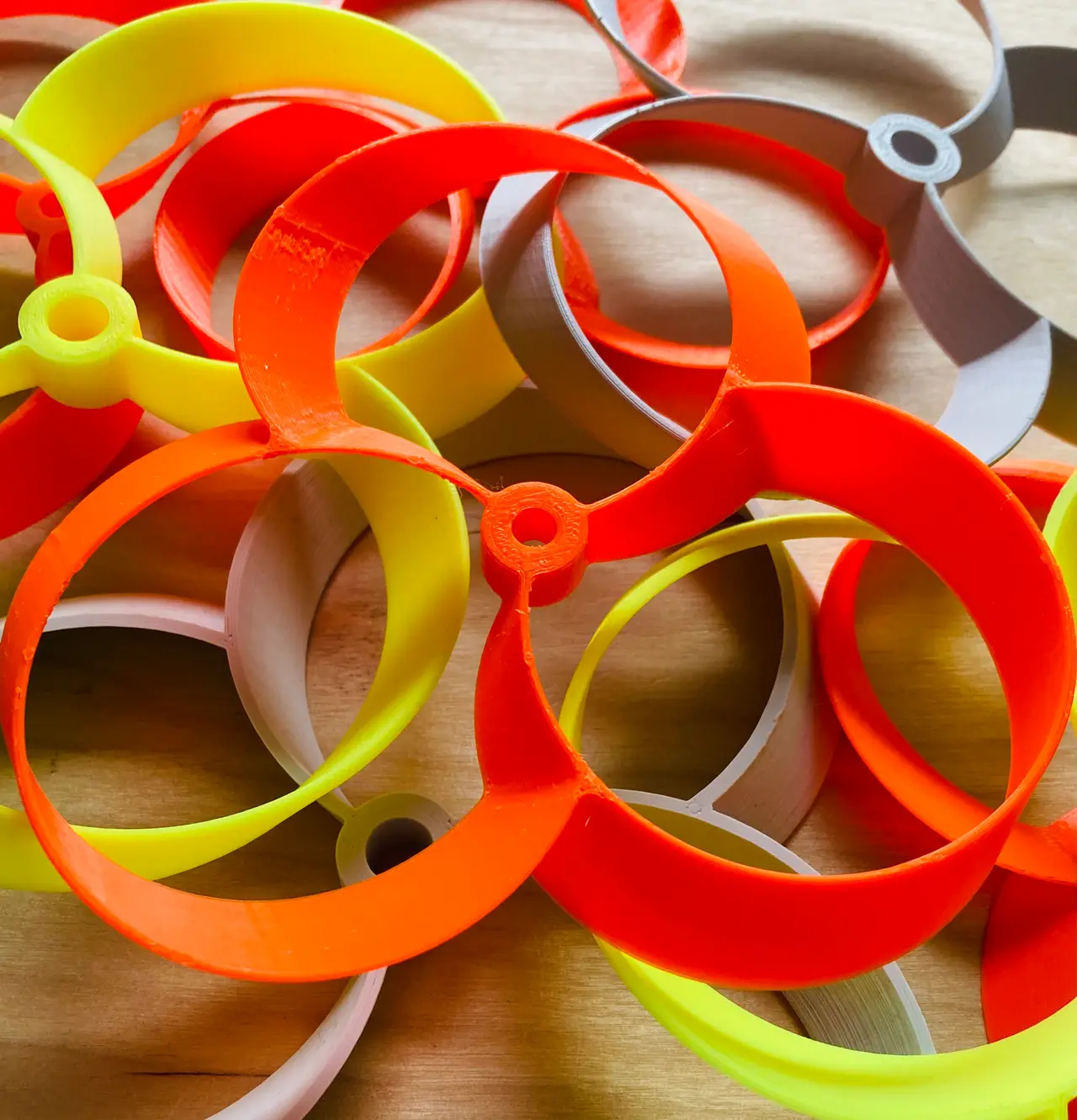

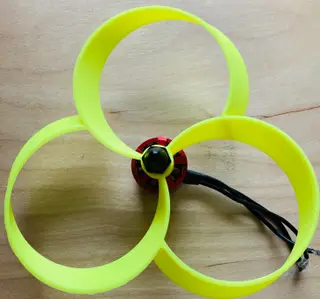

I also added some example STL-files I made with the generator. They will fit “standard sized” 5mm motor shafts for FPV-Drones.
About toroidal propellers: - are quieter than regular props - can be adapted for many uses (i.e. RC boats, drones, RC planes,…)

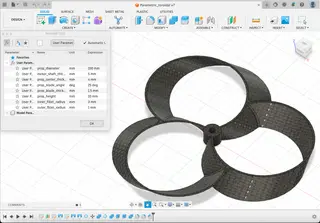

About the file: ONLY for Fusion 360! - Access parameters via the modify tab in Fusion 360: - Parameters are named in a logical manner, (prop_diameter → Diameter of the entire propeller):
NOW IN V2: BLADE COUNT PARAMETER → watch the effects of parameter changes in real time in the viewer and adjust to your n needs 3. Export the propeller as .stl from Fusion 360:
4. Happy printing! ;) But also like, this file has over 100 downloads and no makes, soooo… pls send some prints ;)
