Network Cable Comb

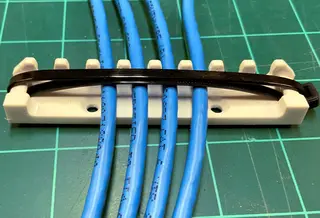

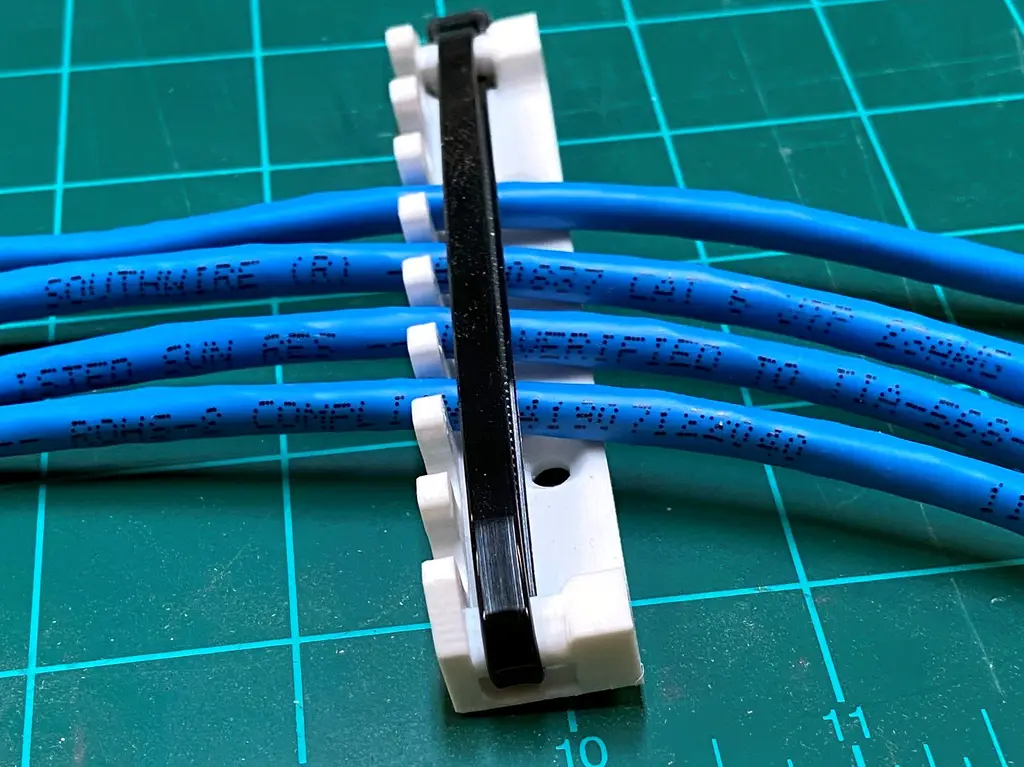

Network cable management bracket. Separates network cable runs and can be screwed to a surface. Supports Cat5, Cat5e, and Cat6 cable types, though smaller diameter cables will be looser between the combs. Screws holes are sized for countersunk #8 wood screws, but similar sizes will work. The network cables are secured down to the comb using a zip tie looped through the sides of the bracket. STL files included for 4, 8, 12, and 16 cable brackets. See https://www.printables.com/model/149669-clip-for-network-cable-comb by https://www.printables.com/social/112247-max2807 for a reusable retaining clip that can be used instead of zipties. I made a new version here https://www.printables.com/model/457291-network-cable-comb-v2 that has a hinged cable retainer cover. Print Settings Recommended print orientation is with the comb fingers flat on the build surface, as it is oriented in the STL files. This will make the comb fingers strong without needing too much infill. The face with the screw holes can be oriented vertically without losing much strength. I used 25% infill for most of the print but used 100% infill modification at at the sides where the zip tie loops through. Rafts: No Supports: No Resolution: 0.2 Infill: 25% Filament: PLA or PETG
