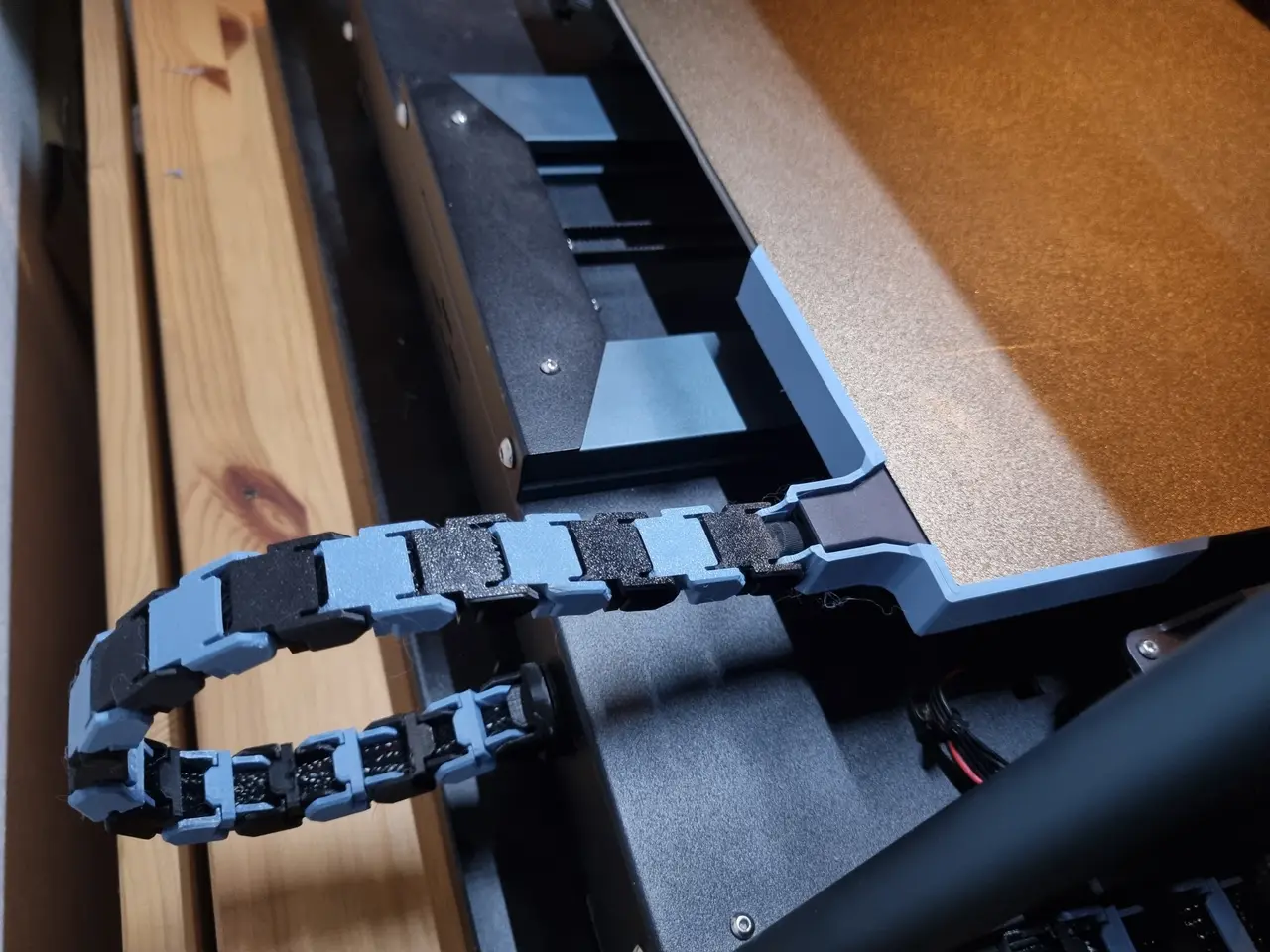

Neptune 4 series bed alignment guide with bed cable chain (with new bracket for the MAX )
por bazzzzzzz en Printables
bed alignment bracket with an option for cable chain
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a bazzzzzzz.
Archivos (11)
- maxv7.stl STL · 64 KB
- neptune 4 and pro v8.stl STL · 58 KB
- neptune 4 and pro v7.stl STL · 58 KB
- neptune 4plus wide v4 low.stl STL · 62 KB
- neptune PLUS v3.stl STL · 71 KB
- V3PLUS non chain.obj OBJ · 71 KB
- clip v2 more room.stl STL · 11 KB
- clip.stl STL · 12 KB
- link2 v2.obj OBJ · 300 KB
- frameclip.stl STL · 175 KB
- frameclip 4x 7mm magnets ( only fits neptune plus might fit the max ).stl STL · 102 KB
- Categoría
- Para tu impresora
- Formatos
- STL, OBJ
- Descargas
- 6,095
- Publicado
Sobre este modelo

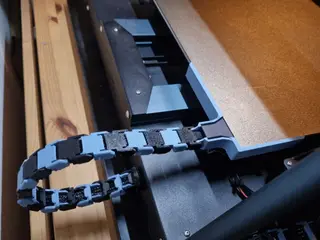

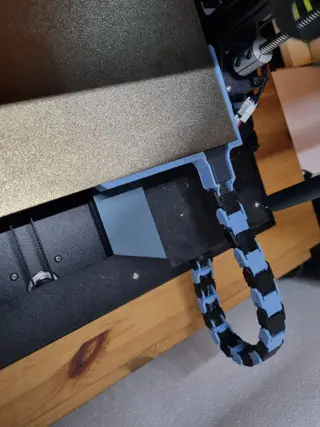

Made this to be able to put the bed back in place more easy and add a cable chain on my neptune 4 plus Thanks to: scrogathon & Matt Queen & Sascha and Berry C & Daan87423 They Helped me a lot for making the mount possible on the neptune 4 and 4 Pro and Max
Unscrew the 2 m3 bolts that keep the strain relief in place ( you could use the same bolts to remount it but it would be better to change them for m3 15mm countersunk bolts that way you can remount the old clip under the printed one and it will never get loose.

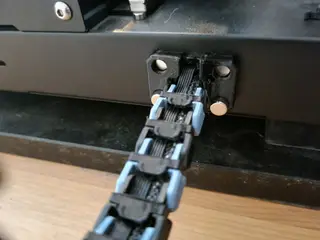

I added 2 frame clips the 1st one just slides in the power cable hole of the frame the other one has 4 spaces to put magnets in ( for me the last one works better as it keeps it pressed firmly against the frame)
best to print the bracket from higher temprature resistant filament petg, abs or asa

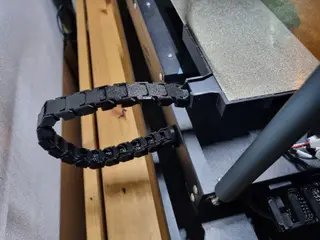

the cable chain is a rework from the existing neptune 4 cable chain ( made it the right size for the power cable )
