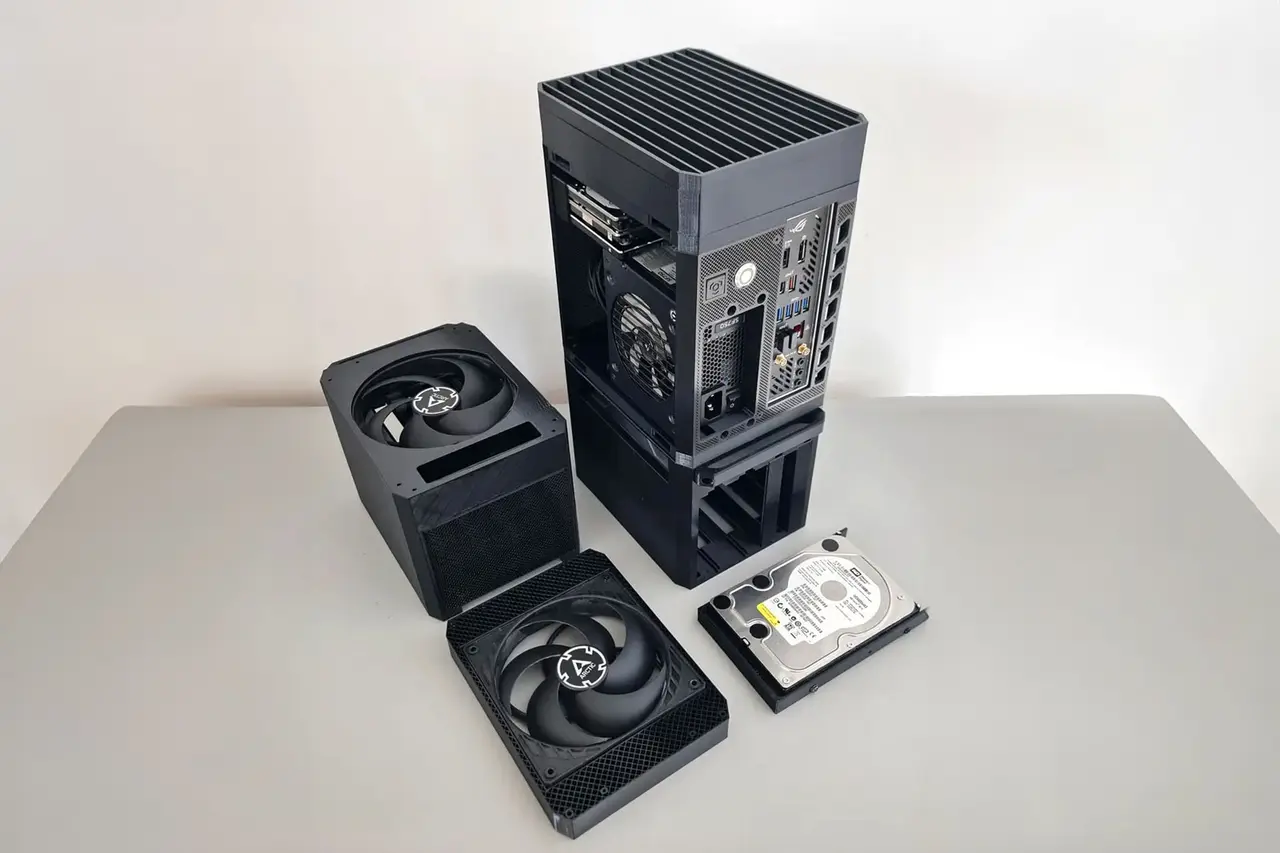

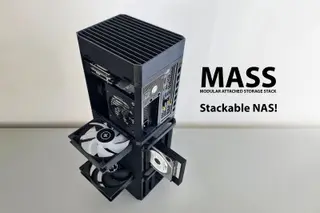

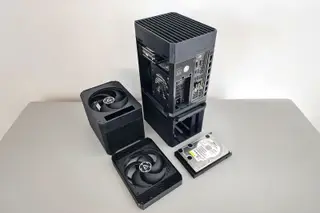

NAS ITX PC Case with stackable expansions [MODCASE MASS]

The Modular Attached Storage Stack (link) is a compact 3D printed NAS enclosure with expandable bays support up to 8x 3.5" + 3x 2.5" drives. 👉For the premium version of MASS with additional features, please see MASS Premium Page here. Features - Minimal Part count. Maximum Strength. Sturdy and simple assembly with 1 screw type for all

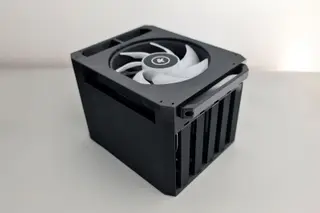

- Expandable Drive Support Stackable Modules for up to 8x 3.5” + 3x 2.5” drives

- Fully 3D Printable 210x210mm Print volume, optimized for FDM

- Powerful Airflow Quiet vertical airflow with 3x 140mm fans

- Customizable Add a touch screen and other optional features

The Premium version of MASS adds the following: - PCIE Slot Support

- 5 Drives per Caddy

- Capacity for Up to 13 Drives

- Handles

- Dual 2.5” to 3.5" Drive Adapters

- FlexATX PSU support

- Addon Fan Modules

- Supports development of more MODCASE designs!

Specs:

MASS Premium MASS Free

Drive Bays Up to 10x3.5” + 3x2.5" 4x3.5”+ 3x2.5"

PCI-E Slot 1 Slot Low-Profile NA

PSU SFX, SFX-L, FlexATX SFX, SFX-L

Fans 3x 140mm or 120mm 3x 140mm or 120mm

CPU Cooler 66mm tall 55mm tall

Printer Requirements Min. Bed 210x210 240°C Nozzle Min. Bed 200x200 240°C Nozzle

Core Size (APU) 210x199x162mm 6.7L 203x199x151mm 6.1L

Bay Module 199x162x150mm 4.8L 199x150x150mm 4.5L

Motherboard ITX ITX

Material 1-2kg PETG 1-2kg PETG

Handles Low profile and standard options NA

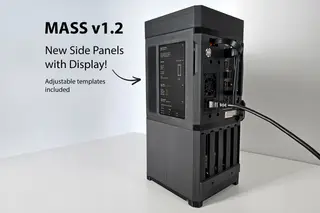

Display Mod up to 7" with adjustable CAD up to 5" with adjustable CAD

Additional 2.5" Bays Optional mounts for 2x2.5" drives in a 3.5" bay NA

Mechanical PBT Optional: use keyboard switch as power button. NA

Required to Complete Screws: M3x20 (40pcs) - Amazon Option, AliExpress Option Power Button: Ø16mm - Amazon Option, AliExpress Option (MASS has been designed to use one screw type for all) PC Parts List: - Mini ITX Motherboard
