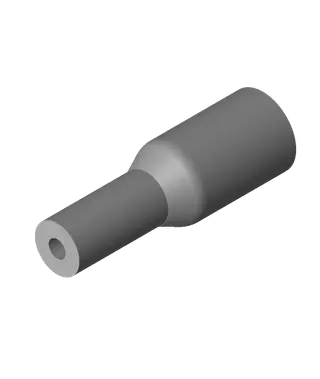

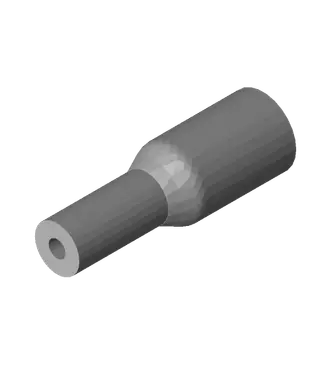

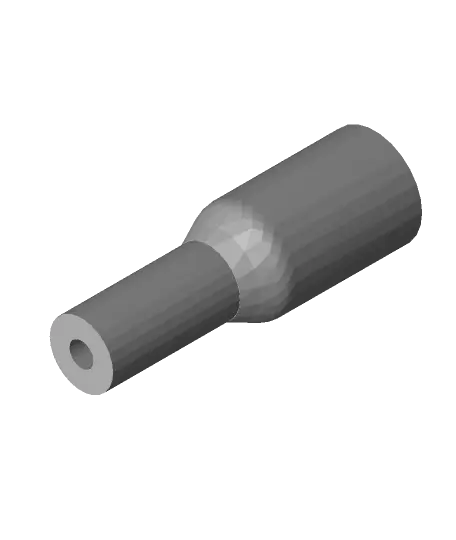

Narrow Schrader Valve Adapter
This adapter is a Schrader-to-Schrader connection designed to be able to connect to a valve in a tight corner. It is a friction fit by design, but for a better and easier seal, an 8mm OD O-ring can be pushed into the female end. The diameter of the female end is 12mm. I suggest printing it in PETG,
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Joseph Q.
Archivos (1)
- robot tire adapter2.stl STL · 981 KB
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 16
- Publicado
Sobre este modelo
This adapter is a Schrader-to-Schrader connection designed to be able to connect to a valve in a tight corner. It is a friction fit by design, but for a better and easier seal, an 8mm OD O-ring can be pushed into the female end. The diameter of the female end is 12mm. I suggest printing it in PETG, or PC for strength.
Print Settings: infill 100% 0.16mm layers 0.5mm line width brim for adhesion no supports needed print at the highest practical temperature for the material used
