Nano Vise (V2) by PRIma

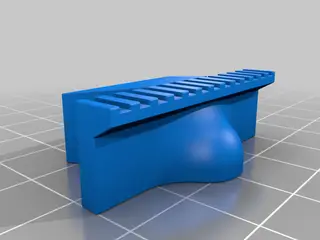

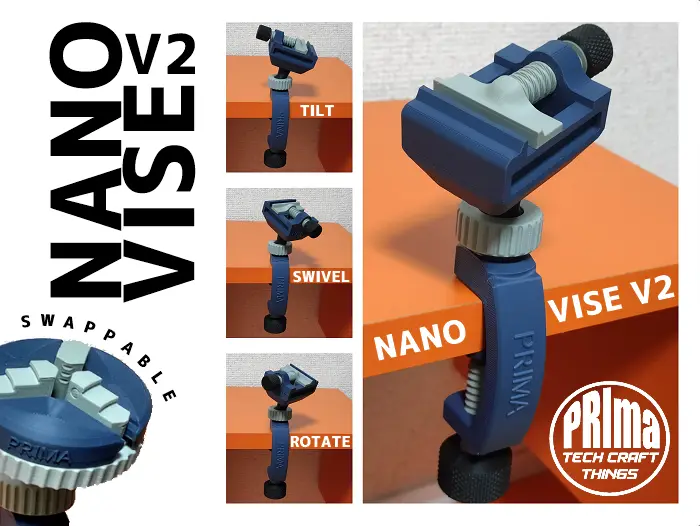

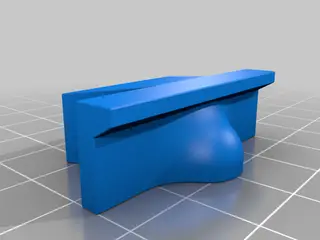

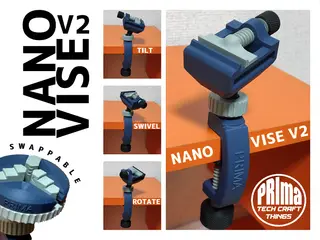

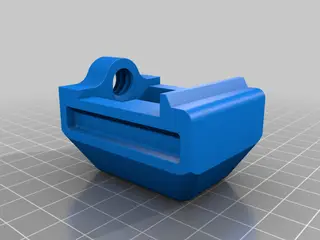

NANO VISE V2 is here! This is a complete renewal of my quite famous Nano Vise https://www.thingiverse.com/thing:2066644 and in fact the vise base and slider has undergone some design & size corrections like no more sharp edges at the dove tail entry plus the vise jaw-height has increased to 6mm while the overall clamping width remains max. 20mm.The screw position on the slider part has been accurate re-positioned to provide more straight clamping movement. 2 types of slider available (blank or grooved jaw) DESK CLAMP VERSION What's completely new here is the C-clamp which includes one ball-joint system where the shaft is fixed by a M8x10mm Allen screw (with cylindrical head) to the vise base bottom. Clamp it to your workbench or desk and you have a very compact sized vise which can be positioned as you like. original C-clamp fits table plate from 15 up to 40 mm thickness additional C-clamp for bigger thickness available as well here is a link to a M8x10 screw which you can print : https://www.thingiverse.com/thing:5160028 all parts can be printed without support happy printing! NOW NANO CHUCK AVAILABLE HERE: https://www.thingiverse.com/thing:5171097 please check here as well: https://www.youtube.com/channel/UCkWGgSjbHl0JN86glKJZuTA FOR PERSONAL USE ONLY NOT FOR SALE you can support my work by clicking the button below:

thread screw source for C-Clamp: https://www.thingiverse.com/thing:1673030 Ball-joint source: https://www.thingiverse.com/thing:4739696
