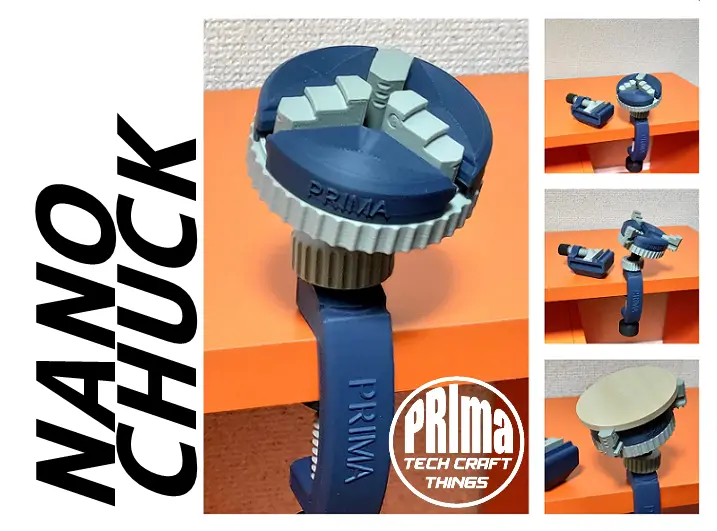

Nano Chuck by PRIma

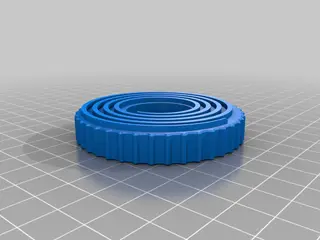

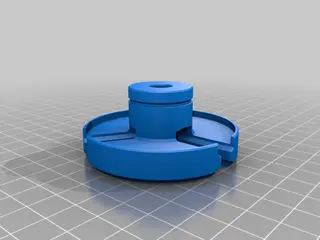

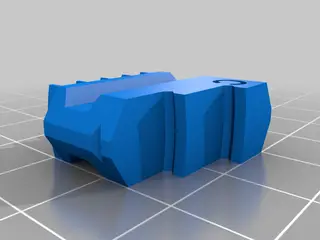

3 Jaw Chuck modified for the Desk Clamp Version of my recently published Nano Vise V2 https://www.thingiverse.com/thing:5178901 (get the desk clamp parts from this link above) Easily swap between Vise or Chuck for your work! Suitable for any round shaped parts like figures with bases for tabletop gaming or any other general woodwork/hobby. Max. clamping diameter 75mm (Jaws reverse mounted) following parts has been modified Housing: removed holes on the outer diameter (task tighten/untighten by hand) Small size corrections and designed possibility to use M8 screw to mount it onto the ball-joint for the C-clamp. Scroll-Plate: removed holes on the outer diameter (task tighten/untighten by hand) designed "grippy" grooves on the outer diameter for tighten/untighten the parts by hand Thicken the height for more area to grab by hand Assembly Jaws into the Scroll-Plate: Start with Jaw A slide into the begin of the spiral (any of the 3 slot) and then rotate the scroll plate until the next slot where you place then Jaw B ...same for last Jaw C. (simple: A/B/C reverse the Jaws : start with C/B/A) You need M8x10 Allen Screw to mount the Chuck onto the Ball-Joint Shaft here is a link to a M8x10 screw which you can print : https://www.thingiverse.com/thing:5160028 please check here as well: https://www.youtube.com/channel/UCkWGgSjbHl0JN86glKJZuTA

FOR PERSONAL USE ONLY NOT FOR SALE
